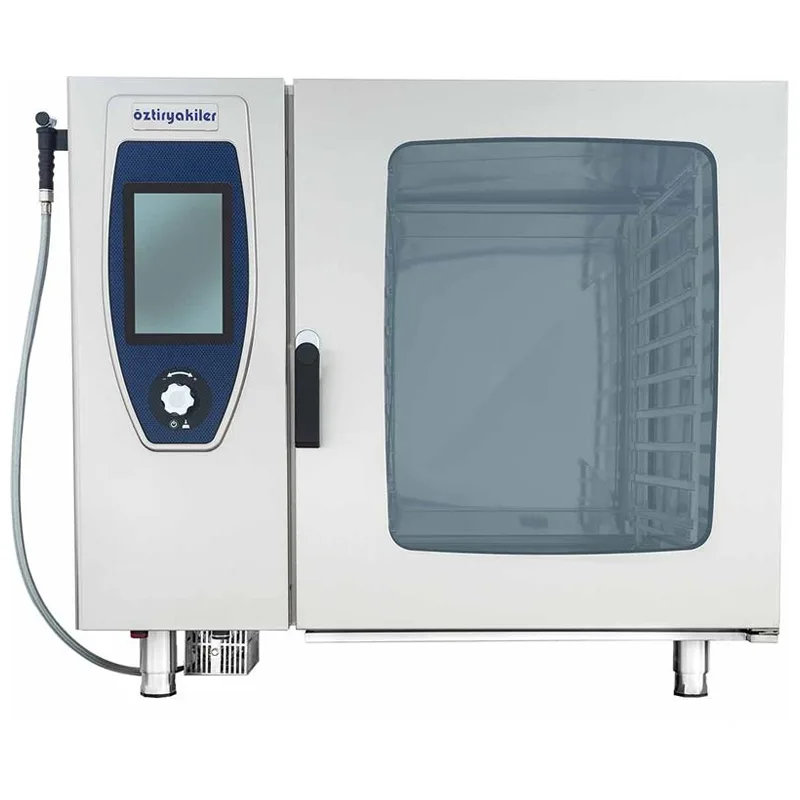

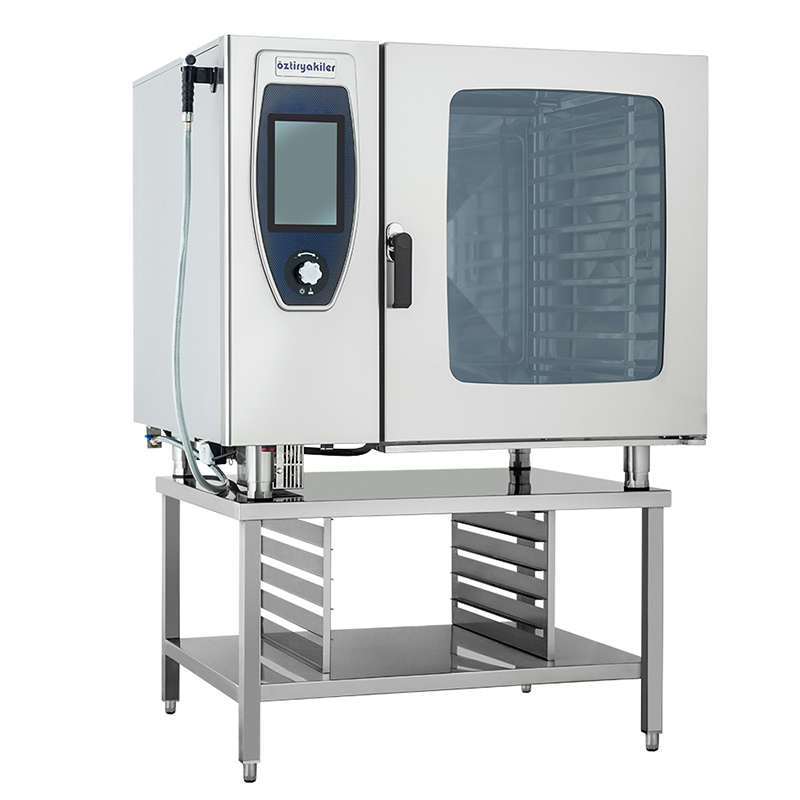

Öztiryakiler OKFG 102 C Gas Combi Oven, 10 x GN 2/1 Trays

Öztiryakiler OKFG 102 C Gas Combi Oven, 10 x GN 2/1 Trays

• Provides great ease of use even for inexperienced personnel with its 10-inch large touch control panel.
• Cooking and boiler are entirely made from AISI 304 Cr-Ni and the outer door is made from AISI 430 stainless steel sheet.
• Equipped with three different cooking modes
• Combi mode (25-280 °C), humidity can be adjusted as desired
• Dry heat mode (25-280 °C)
• Steam mode (25-130 °C)
• Banquet heating mode
• Manual humidification feature (humidity dose can be adjusted)
• Control with a single button (with confirmation function).
• With the smart tray feature, it allows cooking at different times based on shelves simultaneously, warning system when the time is up
• 8 programmed (steam generator (boiler) cleaning, T9, rinsing and polishing, intermediate, tablet-free, fast, medium, intensive) automatic washing mode
• Automatic active rinsing and drainage of the steam generator with a pump
• Versatile heat insulation
• Hinged control panel allowing for preliminary maintenance and inspection
• Height-adjustable feet
• Ability to perform precise fermentation without a fermentation device
• Rail system allowing the oven cart to enter the oven easily
• Door gasket that prevents steam loss and allows easy assembly
• Double glass preventing heat loss
• Interior cabin halogen lighting lamp resistant to high heat and steam
• Possibility to cook fish, chicken, and meat with the central temperature (meat) probe (25-99 °C).
• Delta T cooking option for long-term slow cooking feature
• Capability to cook for up to 24 hours with the free cooking feature and observe the actual cooking duration
• Construction and air channels ensuring homogeneous distribution of hot cooking air
• Quick cooling system adjustable to the desired temperature
• Preheating feature adjustable to the desired temperature
• 5 different fan speeds
• Manual cabin washing hand spray
• Manual steam spraying system
• Steam condenser system
• Tracking cooking temperature and duration during cooking
• 110 pre-recorded recipes (more than 1000 can be saved)
• Capability to save any number of recipes (more than 1000 can be saved)
• Recipe copying and software uploading feature via USB input
• Real date and time on the touch screen
• Ability to be used in any desired language
• Capability to create an 8-step cooking program
• Safe, double-stage door lock system
• Specially designed oven cabin with rounded inner corners ensuring complete hygiene and homogeneous cooking
• Shorter cooking time compared to standard convection ovens
• Interior cabin fan system that stops shortly when the door is opened for safety
• Automatically opening and closing drain
• Easy-to-wash cabin interior
• Ability to observe and actively control all functions from the screen in service mode
• Feature to detect the amount of lime formed in the steam generator and give a cleaning warning according to the lime rate
• Fault warning system (low water level, etc.)
• Limit thermostats in the steam generator and interior cabin
• Automatic filling system and powerful steam generator
• Water inlet: 3/4”, water pressure: 1.5 - 4 bar
• Can operate with LPG or natural gas and can be converted without any modifications
• Gas valve with electronic ignition device, safety system that automatically cuts off the gas if the flame goes out
• Long-lasting and high heat transfer performance exchanger tubes
• Low emission and high efficiency combustion system (premix system) and high-performance burners operating quietly
• Optionally suitable for 20xGN 1/1 use.

TECHNICAL SPECIFICATIONS

• Model: OKFG 102 C
• Capacity: 10 GN 2/1 - 20 GN 1/1
• Dimensions: 1230 x 1096 x 1089 mm
• Total Electric Power: 1 kW
• Electric Supply Voltage: 230 V
• Operating Frequency: 50/60 Hz
• Fuse Rating: 16 A
• Thermostat: 25-280 Degrees
• Distance Between Racks: 68 mm
• Water Connection: 3/4 inch
• Gas Connection: 3/4 inch
• Drain Connection: 50 mm
• Dry Heat Power: 42 kW
• Steam Power: 35 kW
