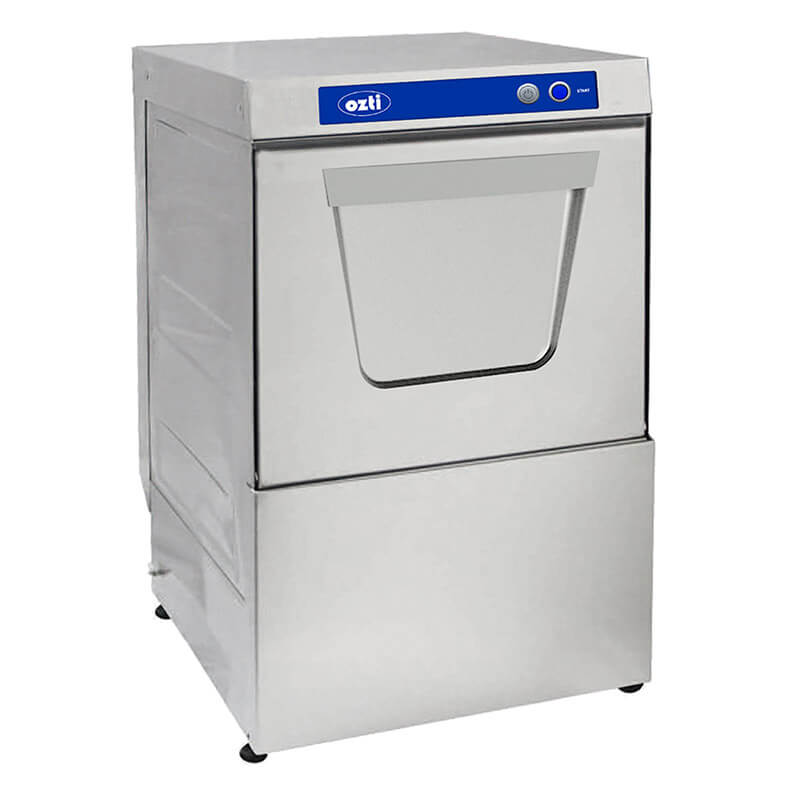

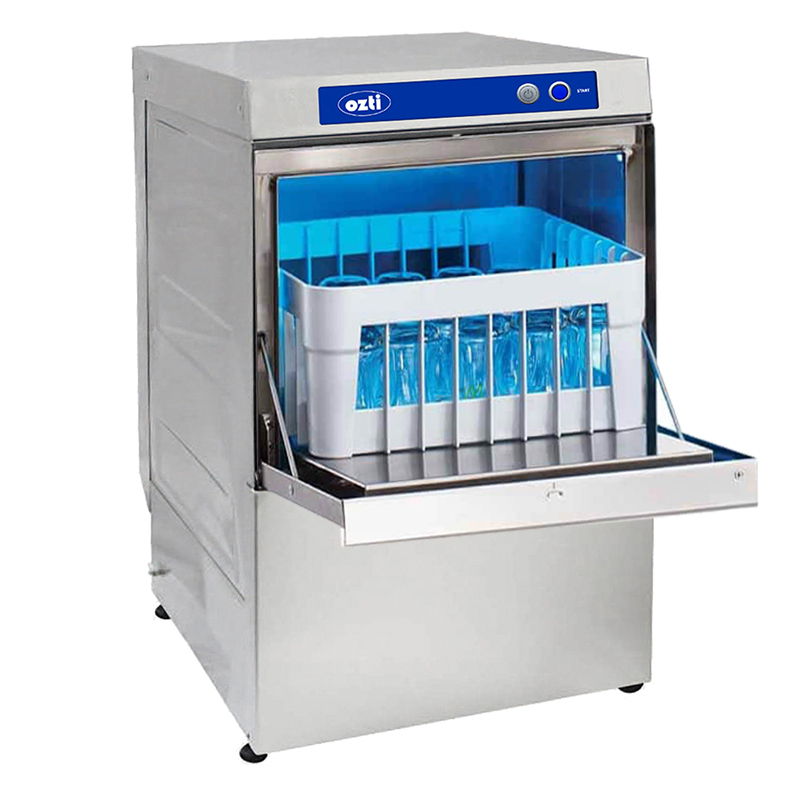

Öztiryakiler Glass Washing Machine, OBY 500 40M PDT, 40x40 cm Basket

Product Code : 1M.074M.11010.AD
Product Video
Free Same-Day Shipping
Discounted Product
%31
66,096 TL
45,441 TL
37,868 TL + VAT

Out Of Stock

Notify me when its in stock
  • 30 racks per hour washing capacity
  • 40x40 cm basket dimensions
  • Includes 2 baskets
  • Detergent, rinse aid, and drain pump
  • Electromechanical control panel
  • 1 washing program
ProductFeatures
Yıkama Kapasitesi
500 Bardak/Saat, 30 sepet/saat
Rinse Aid Pump
Yes
Detergent Pump
Yes
Drain Pump
Yes
Number of Washing Programs
1
Height (cm)
76.5
Depth(cm)
54.5
Width (cm)
47.5
Weight
40
Input Voltage
Single-Phase

Öztiryakiler Glass Washing Machine, OBY 500 40M PDT, 40x40 cm Basket

  • Body, boiler, and washing tank made of stainless steel
  • Seamless and rounded corner hygienic washing tank
  • 30 racks per hour washing capacity (Basket dimensions 40cmx40cm)
  • 2.5 liters of water consumption per washing cycle
  • Automatic and user-friendly control panel
  • Washing program period 120 sec.
  • Saves on energy, detergent, and water usage
  • Washing arms are reinforced polypropylene (PP)
  • Height optimization with adjustable feet
  • Saves on energy, detergent, and water usage
  • Easy start; water filling and heating for boiler and washing tanks with one button
  • Electrical components and wiring systems meet international standards and safety
  • Whole body is isolated and water-resistant to IPX5 protection standard
  • Rinsing and washing temperatures are thermostat-controlled for effective washing
  • Valve system to prevent water in the machine from returning to the plumbing
  • Washing water temperature 55-60 degrees (provided the supply water is at least 2 bar and 50 degrees)
  • Rinsing water temperature 80-85 degrees (provided the supply water is at least 2 bar and 50 degrees)

Package Contents

  • Rinse Aid Pump
  • Detergent Pump
  • Drain Pump
  • 1 Washing Basket
  • Round Cutlery Holder
  • Electrical Supply Cable
  • Drain Hose
  • Water Inlet Hose

Usage Areas; Bars, cafes, coffee houses, tea gardens, tea shops where there is a high demand for glass washing, the glass washing dishwasher can be usedcountertop and under counter as available usage areas.

TYPEElectric
WIDTH (Cm)47.5
LENGTH (Cm)54.5
HEIGHT (Cm)76.5
LOADING HEIGHT (cm) 33
NET WEIGHT (Kg)40 (+/-5)
GROSS WEIGHT (Kg)45 (+/-5)
VOLUME (m3)0.23
CAPACITY 500 Glasses/Hour - 30 Racks/Hour
ELECTRIC POWER3.3
VOLT230V - NPE
FREQUENCY50
HOT WATER INLET DIAMETER3/4''
HOT WATER PRESSURE2-4 bar
HOT WATER HARDNESS0-10 French Hardness
COLD WATER INLET DIAMETER3/4 ''
COLD WATER PRESSURE2-4 bar
COLD WATER HARDNESS0-10 French Hardness
DRAINAGE INLET DIAMETER3/4''
TANK VOLUME18.4
BOILER VOLUME2.8
WASH PUMP FLOW RATE170
BOILER HEATER POWER3
TANK HEATER POWER2
WASH PUMP POWER0.27
RINSE PUMP POWER-
WASH WATER TEMPERATURE55 - 60
RINSE WATER TEMPERATURE80 - 85
DRYING FAN POWER-
MAXIMUM NOISE70
PACKAGE DIMENSIONS57x64x89 cm
PRODUCT ORIGINTURKEY
