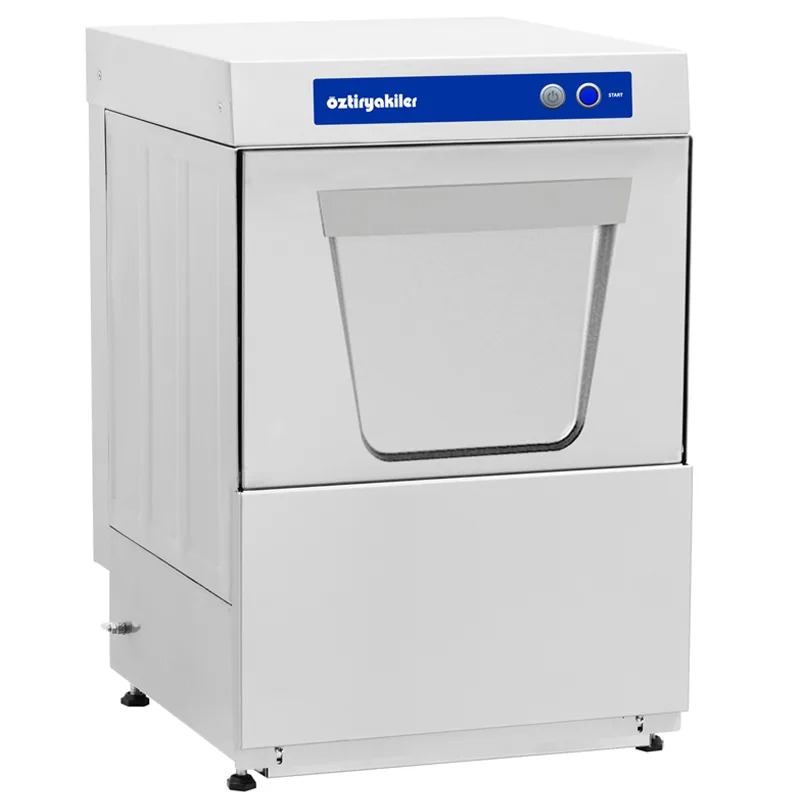

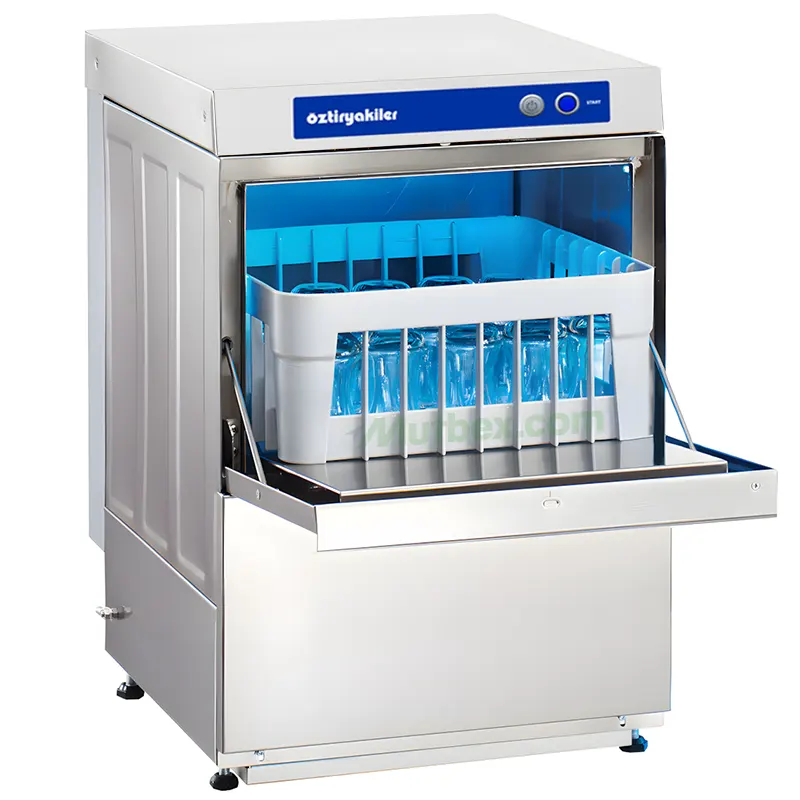

Öztiryakiler Glass Washer Machine, OBY 35M, 35x35 cm Basket
- Body, boiler, and washing tank made of stainless steel
- One-piece hygienic washing tank with rounded corners
- Washing capacity of 30 baskets per hour (Basket dimensions: 35cm x 35cm)
- Water consumption of 2.5 liters per washing cycle
- Automatic and user-friendly electromechanical control panel
- Washing program cycle: 120 seconds
- Energy, detergent, and water-saving design
- Washing arms are made of reinforced polypropylene (PP)
- Adjustable legs for height optimization
- Easy startup: fill and heat boiler and washing tanks with a single button
- Electrical components and wiring systems meet international safety standards
- Fully insulated body with IPX5 water protection standard
- Rinsing and washing temperatures are thermostat-controlled for effective cleaning
- Valve system prevents machine water from flowing back into the plumbing
- Washing water temperature: 55-60°C (with a minimum supply pressure of 2 bar and 50°C water temperature)
- Rinsing water temperature: 80-85°C (with a minimum supply pressure of 2 bar and 50°C water temperature)
Package Contents
- Rinse Aid Pump
- Detergent Pump
- Drain Pump
- 1 Washing Basket
- Round Cutlery Holder
- Power Supply Cable
- Drain Hose
- Water Inlet Hose
Usage Areas;
Bars, cafes, coffeehouses, tea gardens, tea houses
For businesses requiring frequent glass washing, the glass washer machine can be used both as a
countertop and under-counter unit.
| TYPE |
Electric |
| WIDTH (cm) |
42.5 |
| DEPTH (cm) |
46.5 |
| HEIGHT (cm) |
63 |
| LOADING HEIGHT (cm) |
22.5 |
| NET WEIGHT (Kg) |
30 (+/-5) |
| GROSS WEIGHT (Kg) |
35 (+/-5) |
| VOLUME (m³) |
0.12 |
| CAPACITY |
500 Glasses/Hour - 30 Baskets/Hour |
| ELECTRIC POWER (kW) |
3.3 |
| VOLTAGE |
230V - NPE |
| FREQUENCY |
50 Hz |
| HOT WATER INLET DIAMETER |
3/4'' |
| HOT WATER PRESSURE & TEMPERATURE |
2-4 bar 50°C |
| HOT WATER HARDNESS |
0-10 French Water Hardness |
| COLD WATER INLET DIAMETER |
3/4'' |
| COLD WATER PRESSURE |
2-4 bar |
| COLD WATER HARDNESS |
0-10 French Water Hardness |
| DRAIN OUTLET DIAMETER |
3/4'' |
| TANK CAPACITY |
9.2 L |
| BOILER CAPACITY |
2.8 L |
| BOILER HEATING POWER |
3 kW |
| TANK HEATING POWER |
2 kW |
| WASHING PUMP POWER |
0.27 kW |
| RINSING PUMP POWER |
- |
| WASHING WATER TEMPERATURE |
55 - 60°C |
| RINSING WATER TEMPERATURE |
80 - 85°C |
| DRYING FAN POWER |
None |
| MAXIMUM NOISE LEVEL |
70 dBA |
| WASHING / RINSING TANK CAPACITY |
9.2 - 2.8 L |
| PACKAGE DIMENSIONS |
53.5 x 58.5 x 77 cm |
| COUNTRY OF ORIGIN |
TURKEY |
