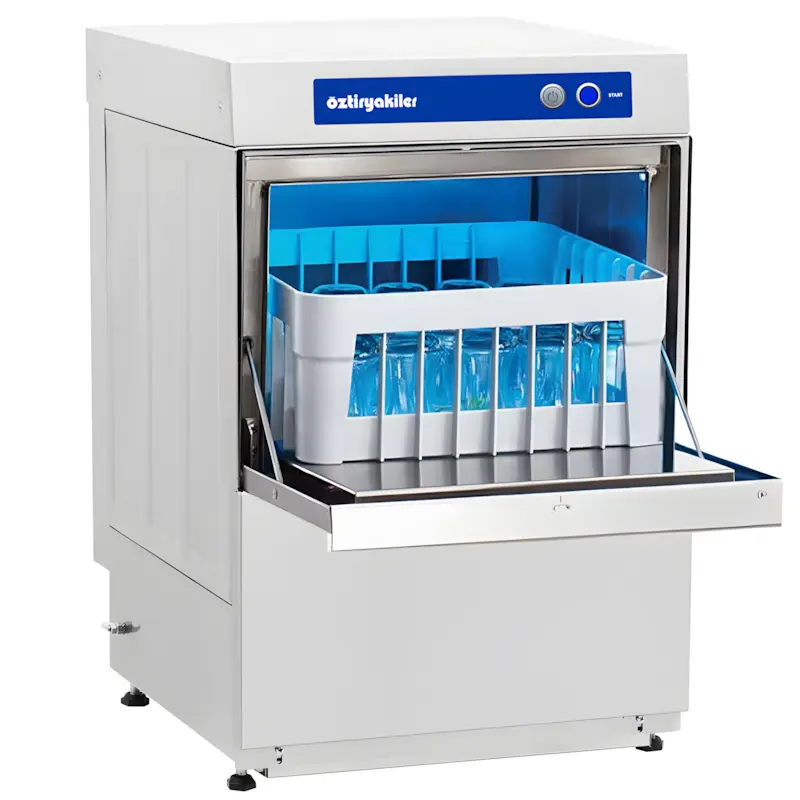

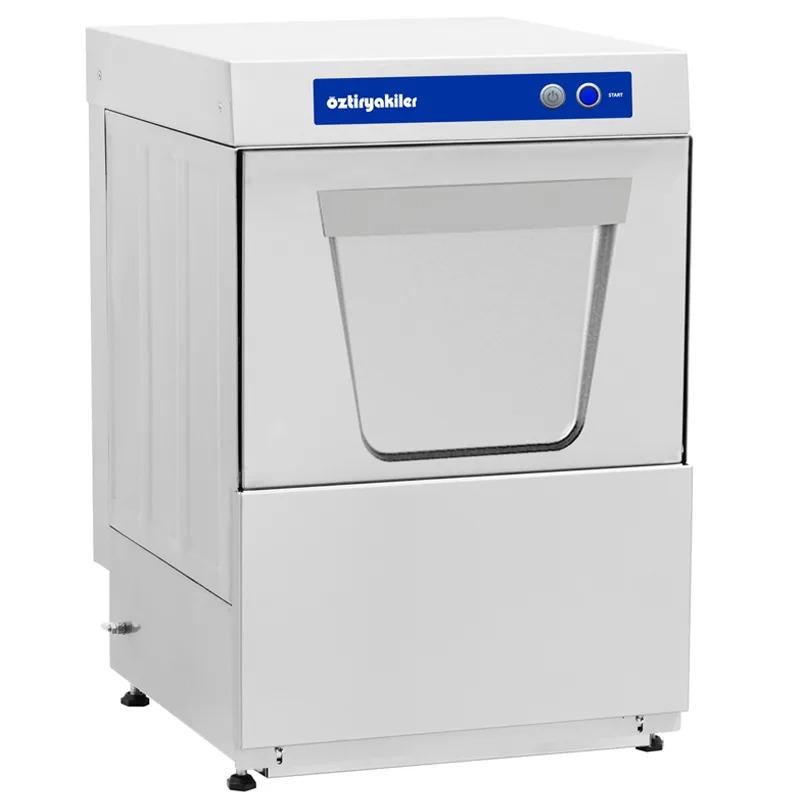

Öztiryakiler Glass Washing Machine, OBY 35M, 35x35 cm Basket

Product Code : 1M.073M.00000.AD
Product Video
Free Same-Day Shipping
Discounted Product
%13
36,904 TL
32,222 TL
26,852 TL + VAT

Out Of Stock

Notify me when its in stock
  • 500 glasses/hour washing capacity
  • 30 basket/glass washing capacity
  • 35x35 cm basket size
  • Electromechanical control panel
  • 1 washing program
ProductFeatures
Yıkama Kapasitesi
500 Bardak/Saat, 30 sepet/saat
Rinse Aid Pump
No
Detergent Pump
No
Drain Pump
No
Number of Washing Programs
1
Height (cm)
63
Width (cm)
42.5
Depth(cm)
46.5
Weight
30
Input Voltage
Single-Phase

Öztiryakiler Glass Washing Machine, OBY 35M, 35x35 cm Basket

  • Body, boiler, and washing tank made of stainless steel
  • Single-piece and rounded edge hygienic washing tank
  • 30 baskets per hour washing capacity (Basket dimensions 35cmx35cm)
  • 2.5 liters of water consumption per wash cycle
  • Automatic and user-friendly electromechanical control panel
  • Washing program cycle 120 sec.
  • Saves on energy, detergent, and water usage
  • Reinforced polypropylene (PP) washing arms
  • Height optimization with adjustable feet
  • Saves on energy, detergent, and water usage
  • Easy start; one-touch water filling and heating for boiler and washing tanks
  • Electrical components and wiring systems are international standard safety
  • Entire body is insulated and water protected to IPX5 standard
  • Effective washing with thermostat-controlled rinse and wash temperatures
  • Valve system preventing return of machine water to plumbing
  • Washing water temperature 55-60°C (with a supply water pressure of at least 2 bar and 50°C temperature)
  • Rinsing water temperature 80-85°C (with a supply water pressure of at least 2 bar and 50°C temperature)

Package Contents

  • 1 washing basket
  • Round cutlery holder
  • Electrical supply cable
  • Drain hose
  • Water inlet hose

Usage Areas; In businesses with a high need for glass washing, such as bars, cafes, coffeehouses, tea gardens, tea rooms, the glass washing dishwasher can be used on the counter and under the counter.

TYPEElectric
WIDTH (cm)42.5
DEPTH (cm)46.5
HEIGHT (cm)63
LOADING HEIGHT (cm)22.5
NET WEIGHT (Kg)30(+/-5)
GROSS WEIGHT (Kg)35(+/-5)
VOLUME (m3)0.12
CAPACITY500 Glasses/Hour - 30 Baskets/Hour
ELECTRICAL POWER3.3
VOLTAGE230V - NPE
FREQUENCY50
HOT WATER INLET DIAMETER3/4''
HOT WATER PRESSURE AND TEMPERATURE2-4 bar 50°
HOT WATER HARDNESS0-10 French Water Hardness
COLD WATER INLET DIAMETER3/4 ''
COLD WATER PRESSURE2-4 bar
COLD WATER HARDNESS0-10 French Water Hardness
DRAINAGE INLET DIAMETER3/4''
TANK VOLUME9.2
BOILER VOLUME2.8
BOILER HEATER POWER3
TANK HEATER POWER2
WASH PUMP POWER0.27
RINSE PUMP POWER-
WASH WATER TEMPERATURE55 - 60
RINSE WATER TEMPERATURE80 - 85
DRYING FAN POWERNone
MAXIMUM NOISE70 dBA
WASH / RINSE TANK CAPACITY9.2-2.8 lt
PACKAGE DIMENSIONS53.5x58.5x77 cm
PRODUCT ORIGINTURKEY

Purchase Guide & Usage Videos


Warranty
2 Yıl
