ATS 5170 Stack Heat Meter Probe 170cm

ATS 5170 Stack Heat Meter Probe 170cm

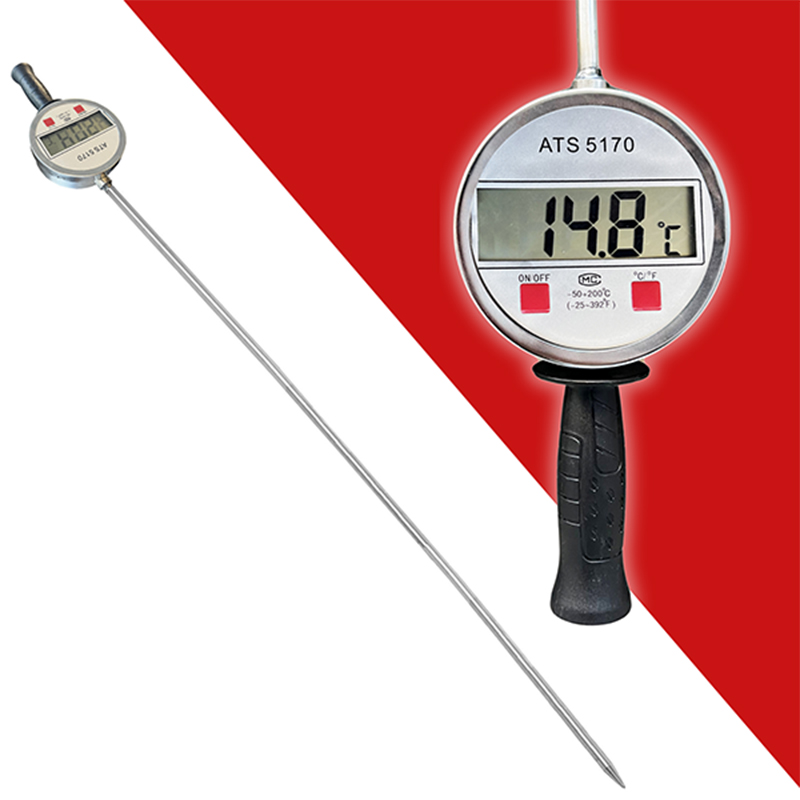

• Including the handle and indicator, total length is 193.5 cm, allowing measurements even in wide and deep stacks.

• Excluding the handle, the immersible length is 170 cm. This length allows the probe to reach the deep parts of the stack, enabling more accurate temperature measurements.

• The measurement sensor is located in the plastic section at the tip of the probe. This placement offers the ability to measure temperature deep within the stack and ensures accurate evaluation of sample temperatures.

• The ATS 5170 stack heat meter probe can measure temperatures between -50°C to +200°C.

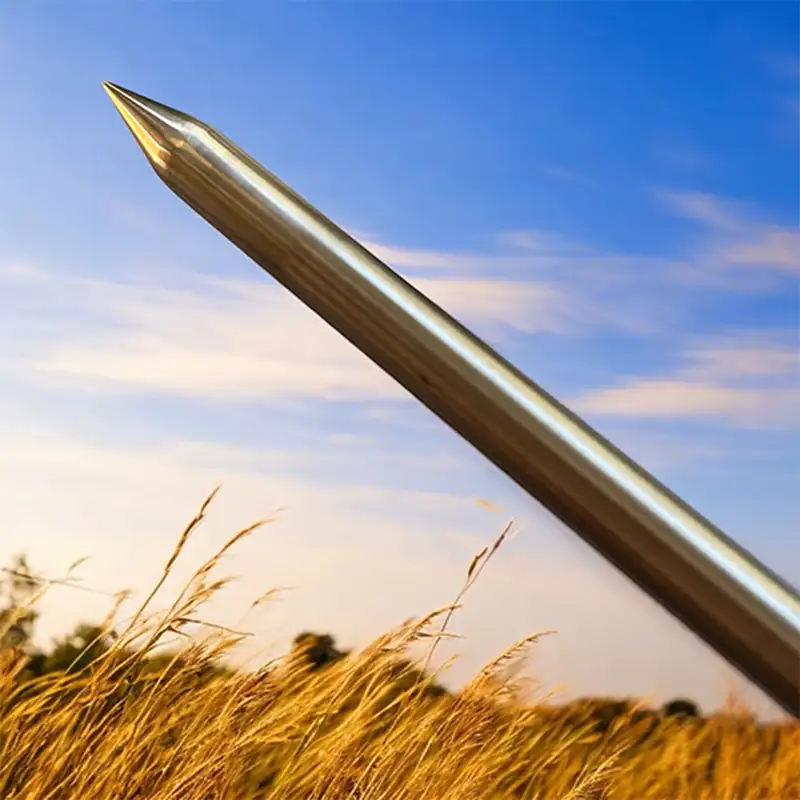

• The tip of the device's probe is manufactured as pointed for easier penetration into stacks.

• You need to remove the plastic piece at the tip of the probe while measuring; this piece contributes to sensor protection but cannot perform accurate measurement while attached.

• The probe's metal structure is made of aluminum, providing lightness and durability.

• The thickness of the device's probe is 10 mm.

• The aluminum material stands out with its lightness and durability and can be used safely especially in outdoor or harsh conditions.

• The device operates with 1 AAA battery and offers long-term use, providing advantages in terms of portability and practicality.

• ATS 5170 is used especially for monitoring the temperature of stacks such as grains, cereals, and hay in large storage areas.

Technical Specifications

• Probe Measurement Range : -50 degrees . . . +200 degrees

• Probe Sensitivity : ±1 degree

• Probe Resolution : 0.1 degree

• Probe Length : 170 cm is the length of the immersion probe

• Display : Single line LCD indicator

• °C/°F Unit Selection : Available

• Dimensions : 193.5 cm x 10.5 cm

• Weight : 500 grams

• Power Source : 1 AAA battery
