Notify me when its in stockEasy to use, it is a portable device in terms of structure and measurement.
You can see the measurement results directly on its LCD screen.

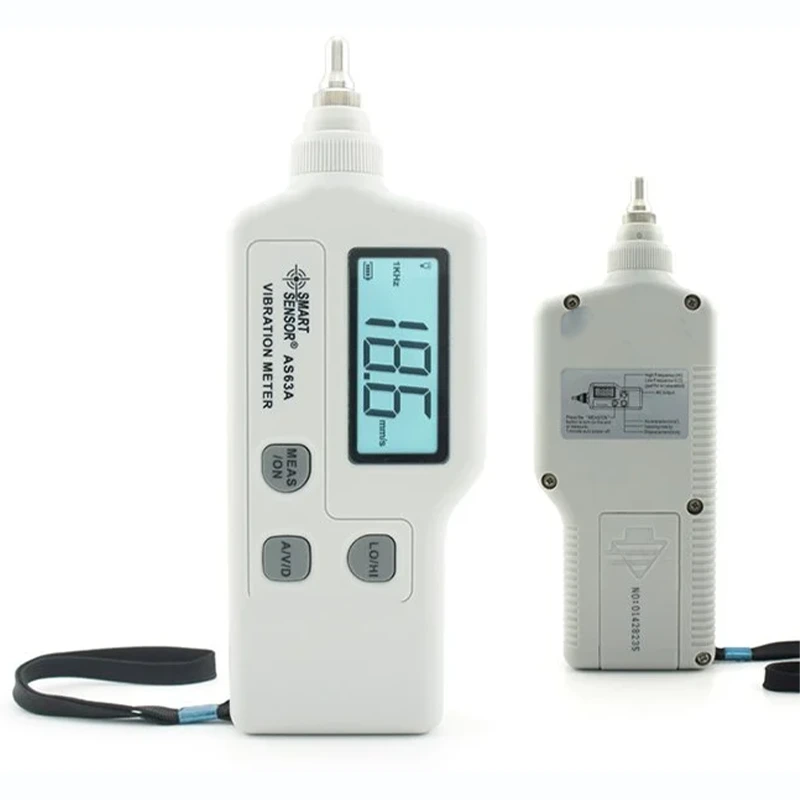

The last measurement made with the AS 63A vibration meter device is visible on the screen.
To perform a measurement, you need to hold down the MEAS button after the device is turned on.
There are two different measurement modes, HI/LO, depending on the vibration intensity of the object to be measured.
It performs acceleration, velocity, and displacement measurements to determine the vibration value.
It has a screen light for easy measurement in dark environments.
It has an automatic shutdown feature; the device automatically shuts down 1 minute after no measurement is made.
It has two different probes (large and small) for different vibration measurement needs.
There is a low battery indicator.
With the hand strap that comes out of the box, you can easily carry the device in your hand.

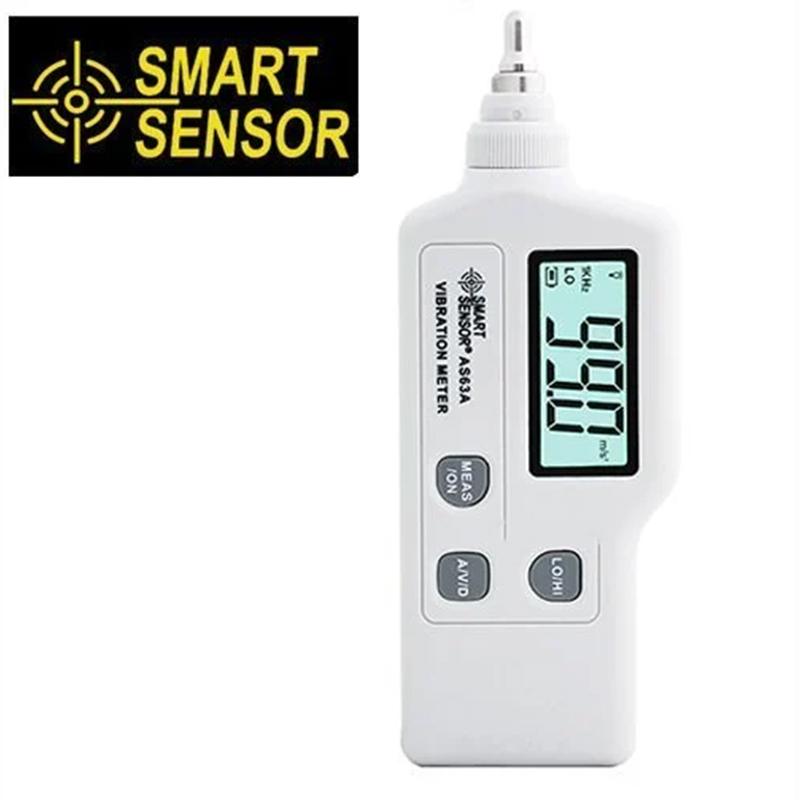

The Smart Sensor AS 63A vibration meter device comes with a blue plastic carrying case.
Box contents: 1 AS63A vibration measurement device, 1 small measurement probe, 1 large measurement probe, and a blue storage case.
Technical Specifications
Acceleration Measurement Range: 0.1 ... 199.9 m/s² peak
Velocity Measurement Range: 0.1 ... 199.9 mm/s rms
Displacement Measurement Range: 0.001 ... 1.999 mm p-p (Velocity and displacement range is limited by 199.9 m/s² acceleration)
Measurement Accuracies: ±10% ±2 digits
Acceleration Measurement Frequency Range: 10 Hz - 1 KHz (Lo) / 1 KHz - 15 KHz (Hi)
Velocity Frequency Range: 10 Hz - 1 KHz (Lo)
Displacement Measurement Frequency Range: 10 Hz - 1 KHz (Lo)
Measurement Unit: mm/s rms, m/s² peak, mm p-p
Display: LCD
Weight: 229 g
Dimensions: 67 x 30 x 183 mm
Power Source: 2 AAA batteries
