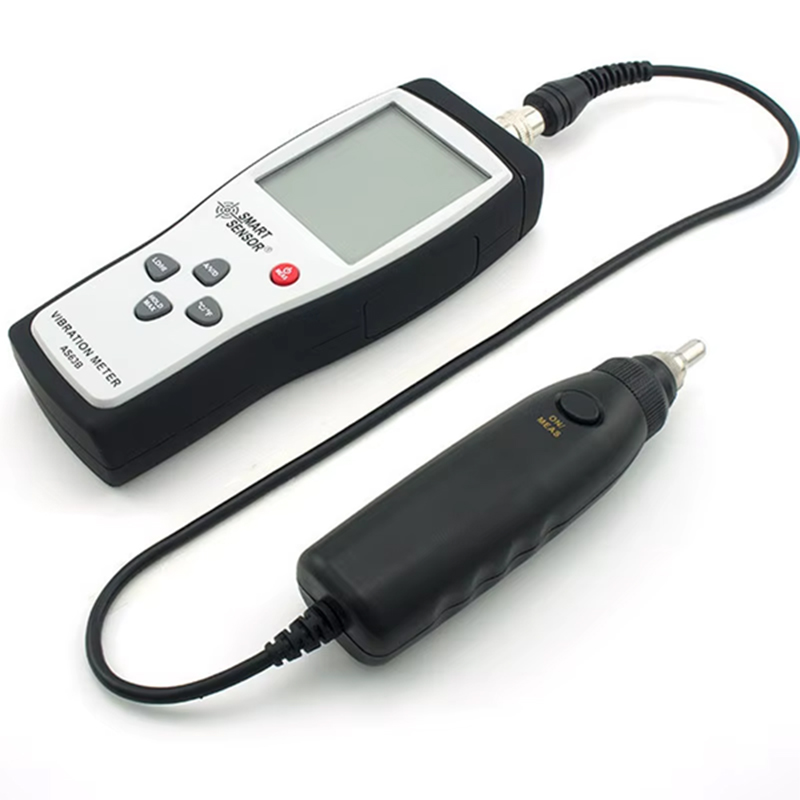

Notify me when its in stockThe device can be automatically operated by pressing the Power button on it or the Meas button on the wired probe.
As long as the Power / Meas button is held down, the device continues to measure.
The last measurement is displayed on the screen in a fixed manner.
There are two different measurement modes according to the vibration intensity: HI (high) and LO (low).
Measurement types include Acceleration, Velocity, and Displacement.
The probe cable, including the handle, is a total of 120 cm long.
Instantaneous temperature values can also be displayed on the screen.

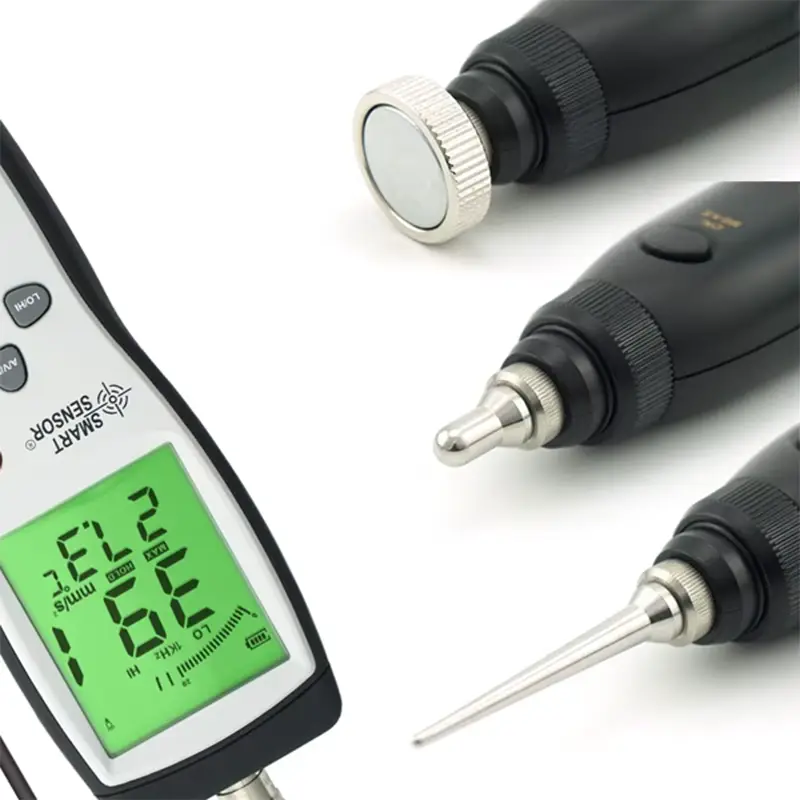

Various measurement accessories from the box allow vibration measurement on different surfaces.
The device has a large and readable LCD screen.
Screen light allows easy measurement in dark environments.
Auto shut-off feature is available; if the device is not used for 1 minute, it turns off by itself.
There is a low battery indicator on the LCD screen.
The device comes with a durable and easy-to-carry blue plastic carrying case.
TECHNICAL SPECIFICATIONS
Acceleration measurement range : 0.1 . . . 199.9 m/s square peak
Speed measurement range : 0.1 . . . 199.9 mm/s rms
Displacement measurement range : 0.001 . . . 1.999 mm p-p (Speed and displacement range is limited by 199.9 m/s square acceleration)
Measurement accuracies : ±5% ±2 digit
Acceleration measurement frequency range : 10 Hz - 1 KHz (Lo) / 1 KHz - 15 KHz (HI)
Speed frequency range : 10 Hz - 1 KHz (Lo)
Displacement measurement frequency range : 10 Hz - 1 KHz (Lo)
Screen : LCD
Weight : 137 gr
Power source : 9V battery
Temperature measurement range : -10 degrees … +80 degrees
Temperature accuracy : ±2 degrees
Dimensions : 150 x 66 x 33 mm
