ATS 5250 Stack Heat Meter Probe 250cm

ATS 5250 Stack Heat Meter Probe 250cm

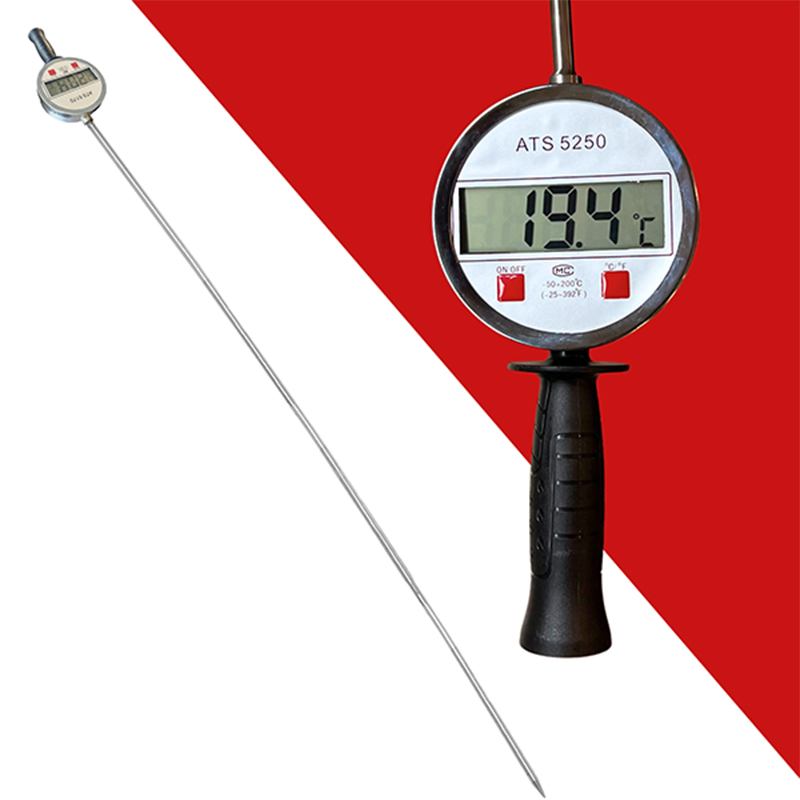

• Including the handle and indicator, its total length is 273 cm, allowing measurement even in wide and deep stacks.

• The thickness of the device's probe is 10 mm. Care should be taken to prevent breakage during immersion due to its thin structure.

• Excluding the handle, the immersible length is 250 cm. This length allows the probe to reach the deep parts of the stack, enabling more accurate temperature measurements.

• The measurement sensor is located in the plastic section at the tip of the probe. This placement provides the capability to measure temperature deep in the stack and ensures accurate evaluation of sample temperatures.

• The ATS 5250 stack heat meter probe can measure temperatures between -50°C to +200°C.

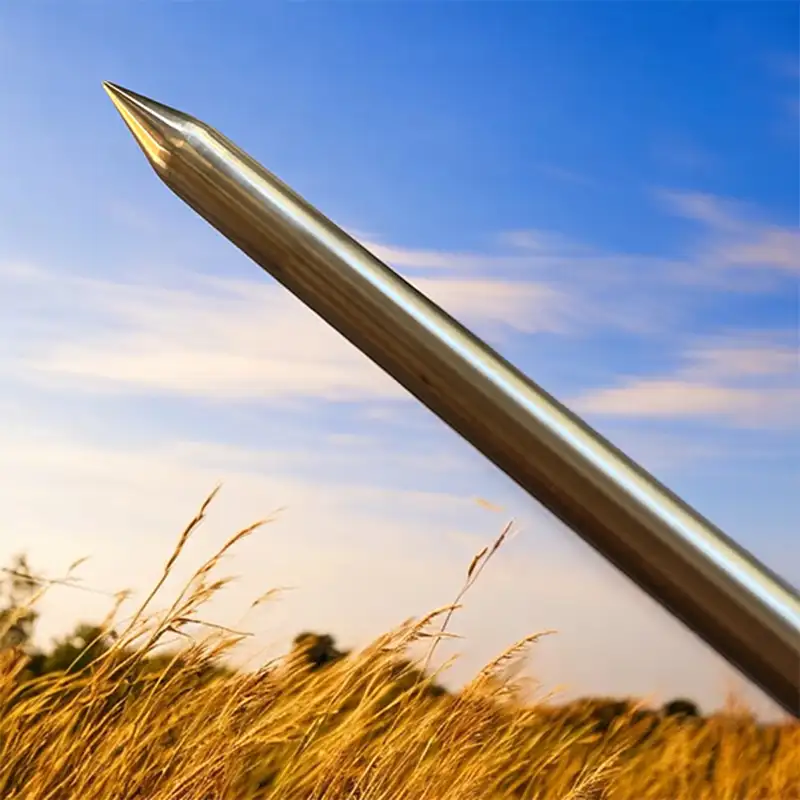

• The tip of the probe is designed as pointed to penetrate stacks more easily.

• The plastic piece at the end of the probe protects the sensor when the product is not in use; it must be removed when making measurements. Correct results cannot be obtained when it is attached.

• The metal structure of the probe is aluminum; it provides lightness and durability.

• The aluminum material offers safe usage, especially in outdoor and harsh conditions.

• The device operates with 1 AAA battery and provides long-term use, offering advantages in terms of portability and practicality.

• The ATS 5250 is suitable for monitoring the temperature of stacks such as grains, cereals, and straw, especially in large storage areas.

Technical Specifications

• Probe Measurement Range : -50 degrees . . . +200 degrees

• Probe Accuracy : ±1 degree

• Probe Resolution : 0.1 degree

• Probe Length : 250 cm is the length of the immersion probe

• Display : Single line LCD indicator

• °C/°F Unit Selectable : Yes

• Dimensions : 273 cm x 10.5 cm

• Weight : 610 g

• Power Source : 1 AAA battery
