AZ 86031 Water Quality Measurement Kit

AZ 86031 Water Quality Measurement Kit

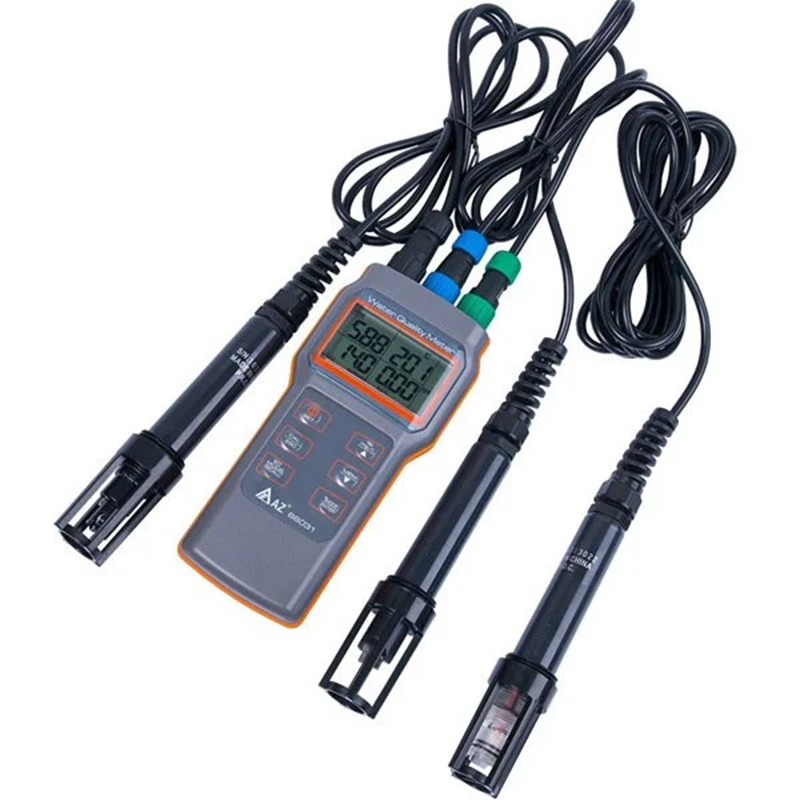

The AZ 86031 combo water quality measurement kit device is a water quality measurement kit with 3 inputs for 3 probes. With these probes attached to the device, you can accurately measure pH, conductivity, TDS, salinity, dissolved oxygen, and temperature values. You can instantly see all the results of these 3 different probes on the device's LCD screen. The AZ 86031 water quality measurement device has IP67 protection against dust and water splashes.

• The AZ 86031 measurement kit is used to measure liquids through its included probes.

• With the AZ combo water quality measurement kit device, you can accurately measure pH, conductivity, salinity, TDS, dissolved oxygen, and temperature values.

• The most significant feature of this water quality measurement device is having 3 probe inputs. The measurement results of these 3 different probes are instantly visible on the device's LCD screen. The model with a single probe input is named AZ 84051 device.

• The AZ 86031 water quality measuring device is an excellent measuring device suitable for use in fish farms, water treatment facilities, swimming pools, freshwater and seawater, and laboratories.

• As soon as the appropriate probe is attached to the inputs on the top of the device, the device immediately starts the measurement process.

• For easy attachment of the probes to the appropriate slots, both labels (pH, COND, D.O) and colors are present in the input slot. These colors are the same as the colors on the probe cables.

• The length of all probes is 15 cm. The diameter of the oxygen probe is 17 mm, the pH probe is 17 mm, and the conductivity probe is 19.60 mm. The diameter of the protective caps is 23 mm.

• The cable lengths of the probes are: dissolved oxygen probe cable is 280 cm, conductivity probe cable is 135 cm, and pH probe cable is 135 cm.

• The device has automatic temperature compensation (ATC) according to the sample being measured.

• This water quality test device has IP67 protection against water and dust splashes.

• It has a multi-point calibration feature. Calibration is done at 3 points for pH, 1 point for dissolved oxygen, and 4 points for conductivity.

• The AZ 86031 water quality measuring device has the function of storing and recalling 99 measurements.

• "COND" represents conductivity, "D.O" represents dissolved oxygen, and "pH" again represents pH.

• Using the "TMODE/ENTER" button, you can see the temperature measurements of the probes. When you press the button, the probe label flashing on the LCD screen shows which probe's temperature measurement is being made.

• With the "MEM" button, you can save the measurements you have taken into the device's memory.

• With the "EC MODE/RECALL" button, you can switch between conductivity, salinity, and TDS measurement units. You can also see the values you have stored in this section. You can navigate the records using the up-down arrow symbol.

• With the "CAL" button, you can put the device into calibration mode.

• With the "% mg/L" button, you can easily switch between dissolved oxygen measurement units.

• With the "SET" button, you can turn the device on and off. By holding the button, you can access the device's settings section.

• Temperature measurement units can be changed to °C / °F.

• It has an automatic shut-off function when not used for 1 hour.

Note: The "Probe Protection Liquid" that comes out of the device's box may sometimes come in a white box or a transparent bottle depending on the incoming batch product. In both cases, the product content is the same.

TECHNICAL SPECIFICATIONS

• pH Resolution : 0.01 pH

• Conductivity Measurement Range : 0 – 199.90 / 0 – 1999 µS/cm

• Conductivity Accuracy : 0.1 µS/cm (within 0 – 1999 µS/cm range)

• Conductivity Resolution : 0.01 µS/cm (within 0 – 19.99 mS/cm range)

• TDS Measurement Range : 0 – 1999 ppm

• TDS Accuracy : 0.1 ppm

• TDS Resolution : 0.01 ppm

• Salinity Measurement Range : 0 – 1000 ppt

• Salinity Accuracy : ±2.0 ppt

• Dissolved Oxygen Measurement Range : 0 – 30.0 mg/L

• Dissolved Oxygen Accuracy : 0.1 mg/L

• Dissolved Oxygen Resolution : 0.01 mg/L

• Temperature Measurement Range : 0 – 600 °C

• Temperature Accuracy : ±0.3 °C

• Temperature Resolution : 0.1 °C

• Display : LED

• Measurement Storage Capacity : 19 records

• pH Calibration : Automatic, 3 points

• Conductivity Calibration : Automatic, 2 points

• Dissolved Oxygen Calibration : 1 point

• Temperature Compensation : Yes

• Automatic Shut-off Duration : 1 hour

• Weight : 200 grams

• Power Source : 4 AAA batteries
