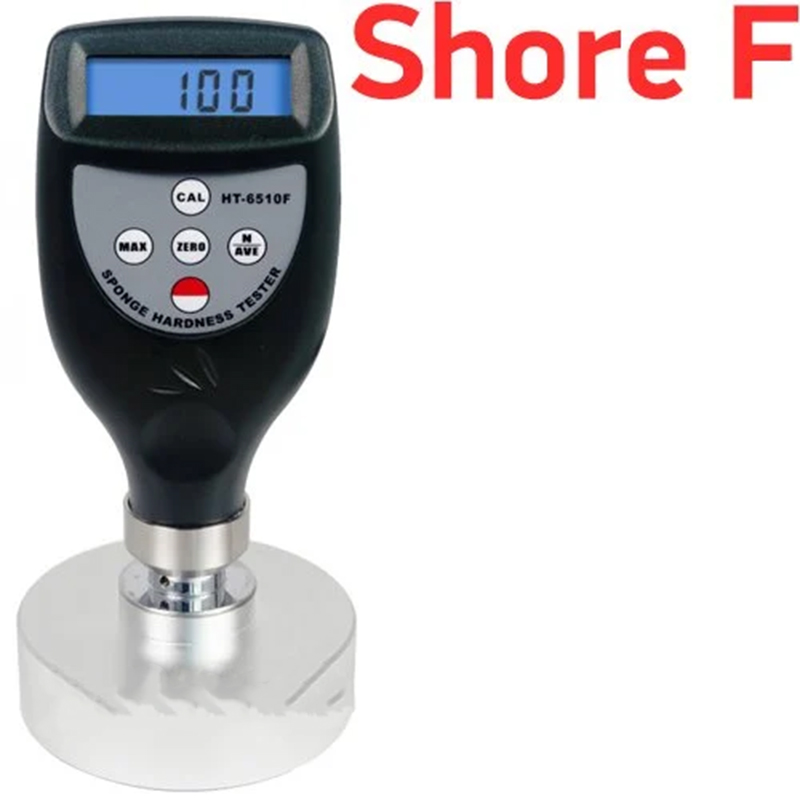

HT6510F Digital Soft Material Hardness Tester Shore Meter

HT6510F Digital Soft Material Hardness Tester Shore Meter

The HT 6510F digital hardness tester shore meter is a device designed to measure the hardness of soft cellular materials. Precise measurements can be made with its large diameter presser foot.

• HT 6510F is a shore meter designed for hardness measurement of soft materials (foam, styrofoam).

• The device has a backlit LCD screen. Therefore, you can take measurements even in dark environments and see them comfortably.

• The HT 6510F hardness measurement device has an automatic shutdown function. If no operation is performed with the device after the last operation, it will automatically shut down after 2 minutes.

• You can set the calibration of the device with the "CAL" button.

• You can use the "AVE" button to take the average of your measurements.

• You can find the maximum of the values you measure with the "MAX" button.

• You can use the "ZERO" button to reset the values on the screen.

• You can turn the device on and off with the red and white button.

• The HT 6510F hardness measurement device has a sturdy, durable, and very stylish metal case.

• This hardness tester measures the thickness of materials with a minimum thickness of 25 mm. If the thickness of the material to be measured is less than 25 mm, 2-3 pieces are placed on top of each other to ensure measurement.

• The device operates with 4 pieces of 1.5V AAA batteries.

Technical Specifications

• Measurement Range: 0 - 100 HF

• Resolution: 0.1 HF

• Diameter of Measurement Pin: 25.2 mm

• Presser Foot Diameter: 80 mm

• Spring Force: 455 gf

• Product Size: 162 x 65 x 28 mm

• Weight: 490 grams

• Power Source: 4 pieces of 1.5 volt AAA batteries
