LED32 LED Illuminated Refractometer 0-32 Brix

Product Code : LED32
%0
1,614 TL
1,614 TL
1,345 TL + VAT

Out Of Stock

Notify me when its in stock

LED32 LED Illuminated Refractometer 0-32 Brix

  • It measures density quickly up to 32 brix.

  • The most important feature of the product is that it allows you to take measurements easily even in dim and dark environments with its built-in LED light.

  • In refractometers with a range of 0-32 brix; low and medium concentrated fruit juices, food and machine oils, milk, and similar materials can be measured.

  • It provides high-quality measurement with the strong illumination of the LED light. (LED light battery can be quickly replaced when depleted.)

  • It is very easy to take measurements with a refractometer, no professionalism is required. Just put a few drops of your sample on the prism with the pipette and read the result through the eyepiece.

  • It has a feature called ATC, which stands for Automatic Temperature Compensation.

  • The refractometer is compact, lightweight, and easy to carry due to its small size.

  • With the mini screwdriver included in the box, you can perform calibration and focus adjustments. Besides calibration, it is also very easy to adjust the focus according to your eye structure.

  • To ensure continued precision and quality measurements, the refractometer's prism should be protected from impacts and scratches.

  • The refractometer has a high-quality pure aluminum body structure.

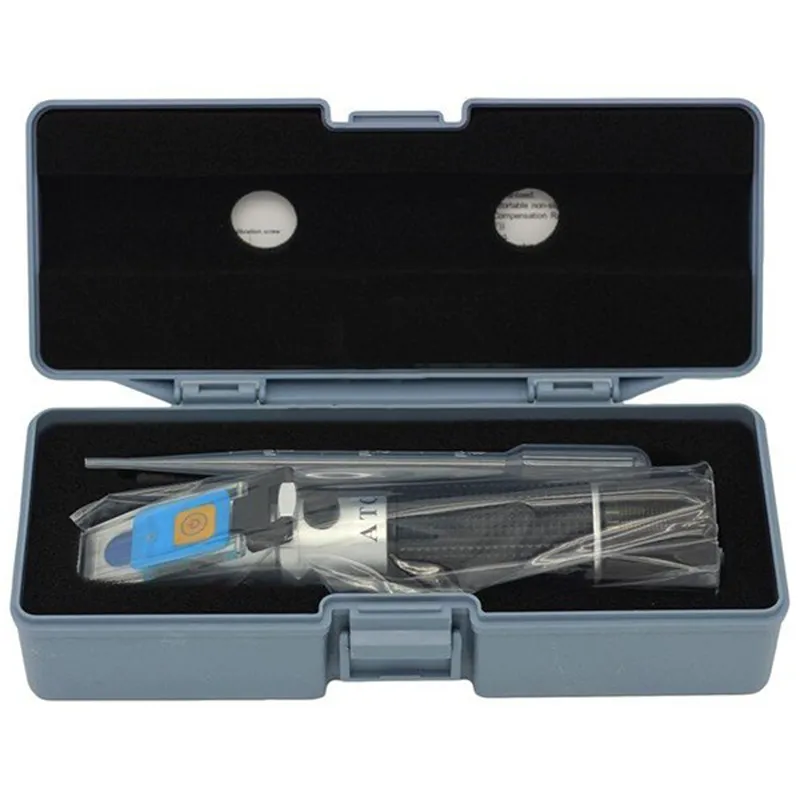

  • The box contents of the LED refractometer are as follows: The refractometer itself, pipette, mini screwdriver, plastic protective case, cleaning cloth, calibration liquid, CR1220 battery.

Why Is Brix Measurement Done?

  • The Brix value is used during the production stages of foods for control and testing purposes. The Brix value, which is the measurement value of refractometers, is used for processes such as tracking the ripeness and harvest time of fruits and vegetables, and monitoring the processing stages of foods like fruit juice, canned goods, and paste.

How to Measure?

  • Lift the prism cover of the refractometer and drop the sample to be measured onto the prism with the pipette. Press the button on the cover to activate the LED light. Position the eyepiece section on your eye and try to read the value on the measurement chart you see. If the values you see are not clear, you can rotate the adjustment ring just above the eyepiece to turn the measurement chart left or right to adjust the clarity.

Performing Zero Adjustment:

  • First, open the prism cover and drop 1-2 drops of pure water onto the inclined prism surface and slowly close the cover. Thus, a thin layer of water will remain between the prism surface and the cover. If the Dark-Light separation image seen around the 0 (zero) line of the measurement chart is not aligned with the zero line of the measurement chart, use the Calibration Screw with the help of a screwdriver to rotate and align the Dark-Light separation exactly with the zero line of the measurement chart.

Technical Specifications

  • Measurement Range : 0 . . . 32 degreeBx

  • Resolution : 0.2 degreeBx

  • Illumination : Yes, prism illumination with LED light

  • Size : 27 x 40 x 160 mm

  • Weight : 160 gr.

  • Power Source : CR1220 battery for LED light

  • Box Contents : The refractometer itself, pipette, mini screwdriver, plastic protective case, cleaning cloth, calibration liquid, CR1220 battery
