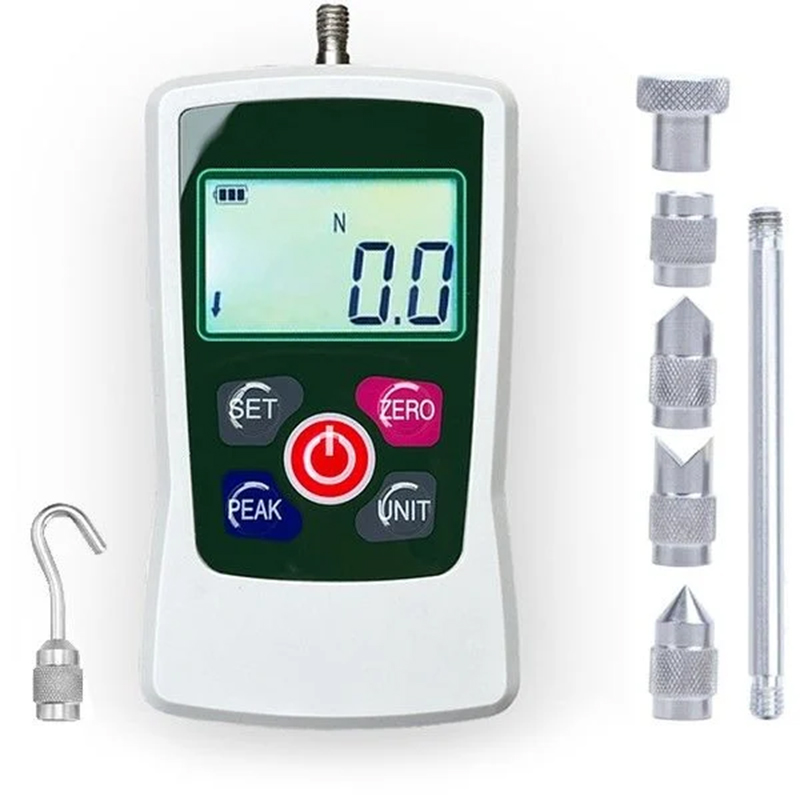

Notify me when its in stockThe AMF-20 is a small-sized, multifunctional, and highly accurate push-pull testing device used in many industries such as electronics, construction hardware, light industrial textiles, automotive parts, ignition systems, fire-fighting equipment, and pen manufacturing.
With a capacity of 20 Newtons (approximately 2 kilograms), it is especially suitable for measuring low forces.
High Accuracy and Resolution: Provides detailed analysis with ±1% accuracy and measurement sensitivity up to 0.01 Newton.
Wide Application Range: Used in lock break tests, assembly force measurements, fishing equipment, chemistry, power machinery, and scientific studies.

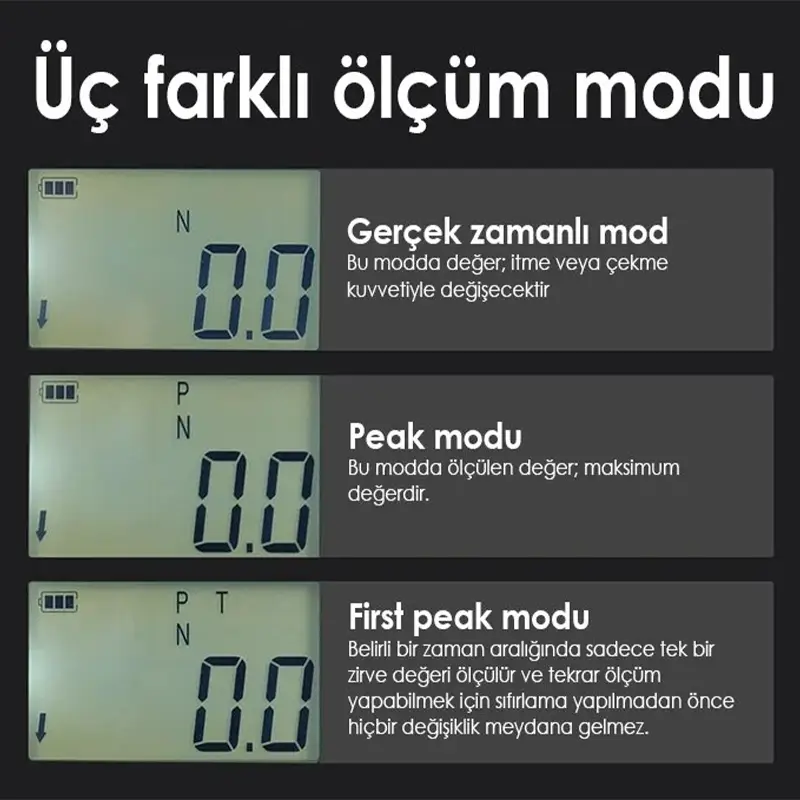

Three Measurement Modes:
Real-time measurement
Peak value measurement
First peak value measurement
Multiple Measurement Units: Switchable between Newton (N), Kilogram (kg), Pound (lb), and Ounce (oz).
Gravity Acceleration Setting: Allows manual input of local gravity acceleration to increase measurement accuracy.
Advanced Alarm System: Upper and lower limits can be set. Audible buzzer alarm sounds when limits are exceeded.
Minimum Force Protection: Filters out insignificant low values to analyze only meaningful data.
Auto Power Off: Automatically turns off after a set period of inactivity to save power. The shutdown time is adjustable.
Automatic Backlight: Ensures readability in low-light environments.
User-Friendly Interface: Provides clear and easy operation with a backlit LCD screen.
Measurement Capacity: 20 Newton | 2 Kilogram | 4.5 Pound | 72 Ounce
Measurement Accuracy: ±1%
Minimum Measurement: 0.1 Newton | 0.01 Kilogram | 0.022 Pound | 0.36 Ounce
Smallest Force Unit: 0.01 Newton | 0.001 Kilogram | 0.001 Pound | 0.01 Ounce
Sensor Type: Internal sensor
Display: Backlit LCD
Operating Temperature: Between 5 °C and 35 °C
Storage Temperature: Between -10 °C and 60 °C
Operating Humidity: Between 15% and 80% relative humidity

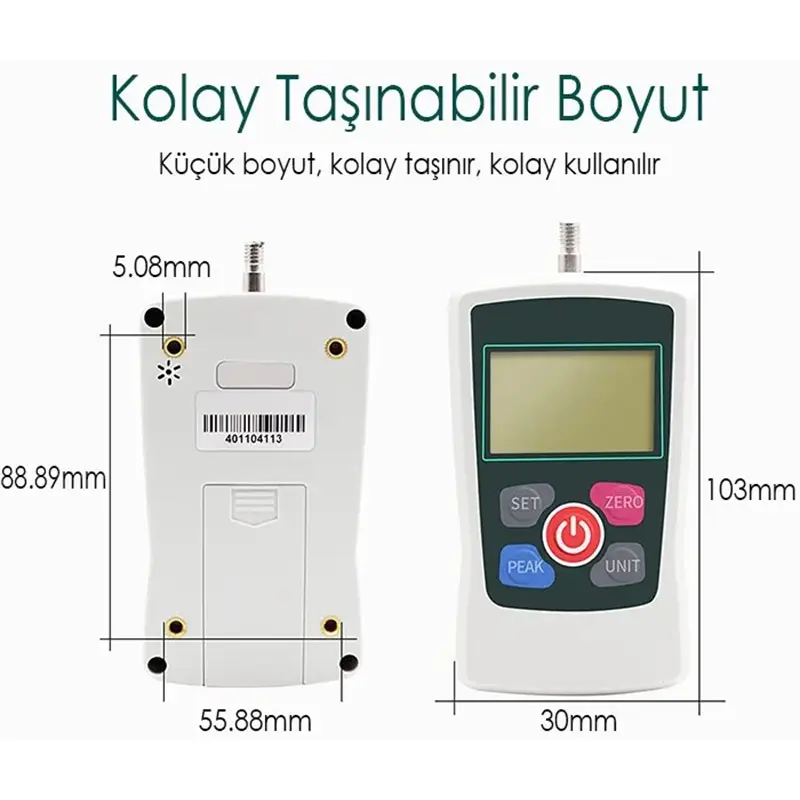

Dimensions: 124 x 60 x 31 mm
Weight: 400 grams
Power Supply: 2 AAA batteries
Usage Environment Warning: It is recommended to use the device in vibration-free and non-corrosive environments.
