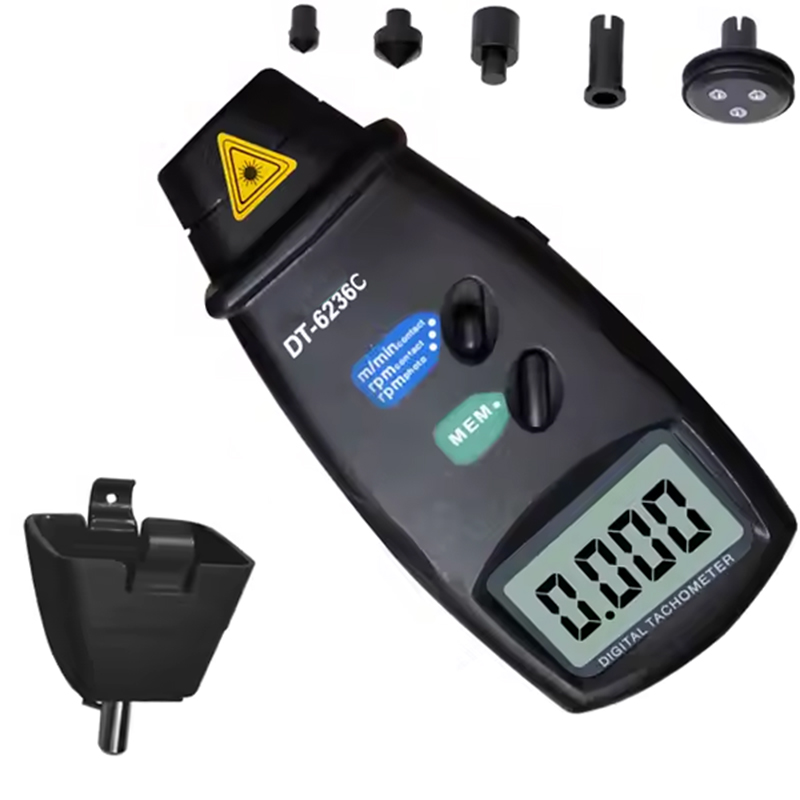

LYK-6236C Contact and Non-Contact Tachometer

LYK-6236C Contact and Non-Contact Tachometer

• The LYK 6236C tachometer is a highly practical and user-friendly device with a keypad, capable of both contact and non-contact rpm measurement, making it a versatile device.

• This tachometer operates with high precision, offering a wide measurement range suitable for various industrial applications.

• The device is easy to use.

• It has a wide measurement range.

• It features both contact and non-contact (laser) measurement capabilities.

• It has a high-resolution, fully functional digital display.

• Thanks to the backlit screen of the device, you can comfortably measure in environments with insufficient light.

• You can measure by holding down the measurement button located on the side of the device.

• Before starting to measure, you should select how you will measure from the sliding menu above the Memory button.

• In non-contact measurement mode, it can measure in the RPM unit, while in contact measurement mode, it can measure in both RPM and m/min units.

• By pressing the "Memory" button, you can see the highest value measured by the device, the lowest value, and the last value measured on the digital display.

• It can be used in all areas where portable rpm measurement is desired, such as motor rpm, rotating wheel rpm...

• The exterior of the device is made of black hard plastic.

TECHNICAL SPECIFICATIONS

• Precision: ± 0.05 % + 1 rpm

• Operating Temperature and Humidity Range: 0ºC . . . 50ºC

• Display: LCD

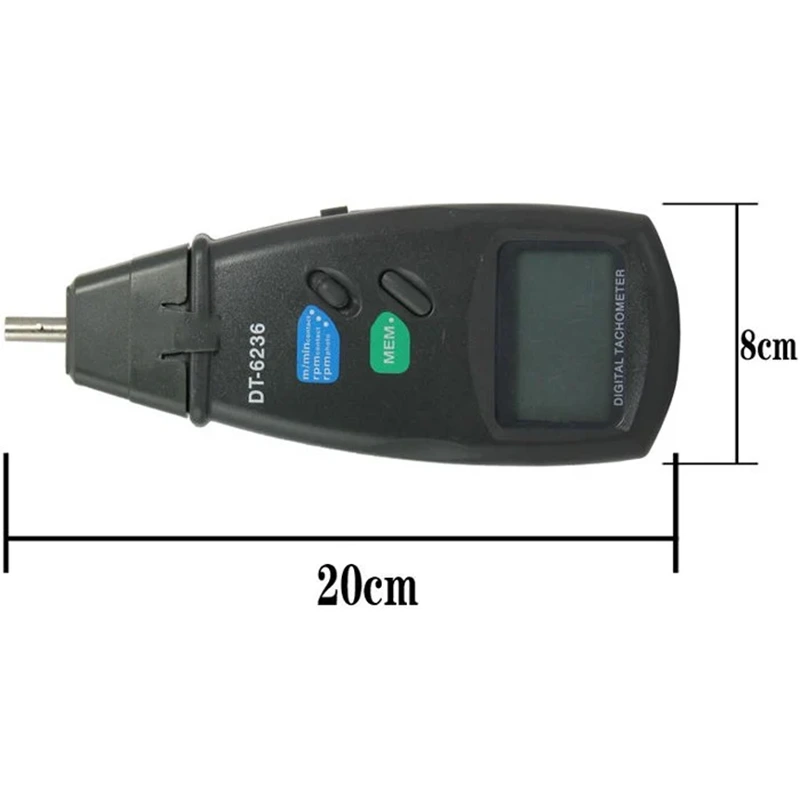

• Dimensions: 210 x 74 x 37 mm

• Weight: 220 grams

• Power Source: 4 pieces 1.5V AA batteries

• Measurement Range:

  • Non-contact: Between 2.5 and 99,999 rpm

  • Contact: Between 0.5 and 19,999 rpm

• Resolution: 0.1 RPM

• Measurement Distance: 50 mm . . . 500 mm

• Response Time: 0.8 seconds

• Accessories:

  • 4 different sized measurement tips

  • 2 pieces of 20 cm long laser labels

  • Leather storage case
