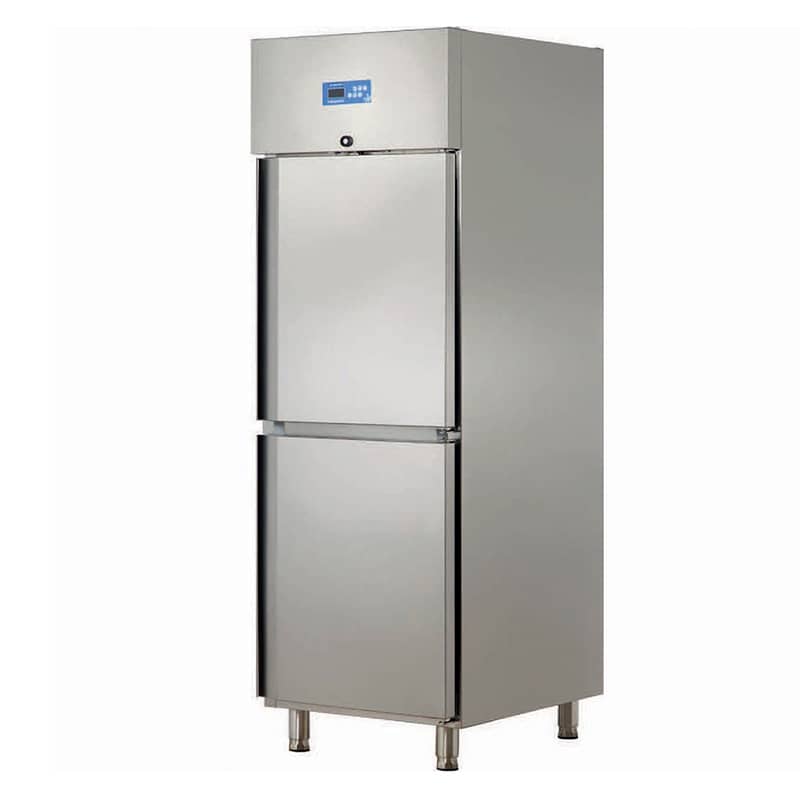

Öztiryakiler Monoblock Double Door Upright Refrigerator, GN 600 NMV Model, 304 Quality

Öztiryakiler Monoblock Double Door Upright Refrigerator, GN 600 NMV Model, 304 Grade

The Öztiryakiler GN 600 NMV is an upright refrigerator with a monoblock cooling system, designed to store food at -2/+8 °C in restaurants, hotels, cafes and industrial kitchens. With its GN 2/1 shelf layout, double half-door design, 304 grade stainless steel body and HACCP digital control panel, it meets the food safety needs of professional kitchens.

According to the product page, the 69 x 84 x 210 cm cabinet has a capacity of 700 lt and a power rating of 0.21 kW. Optional marine-type feet or castors make it easier to position the unit according to the kitchen layout.

HACCP Digital Control Panel

The digital control panel records and displays high and low temperature alarms, door open alarms and high condenser temperature alarms. These records help monitor the cold chain under HACCP and detect temperature deviations in time.

The panel supports a basic humidity control function and the MODBUS protocol. Its compatibility with centrally controlled network data and central systems is an advantage for businesses that monitor multiple refrigeration units from a single point. The smart defrost feature manages defrosting as needed and helps reduce energy consumption.

Mono-Block Cooling System and Air Circulation

The unit uses low energy compressors, an evaporator with a large surface area and electrostatic coating against corrosion, and high efficiency fans. According to the product page, the specially designed air duct provides optimum air distribution inside the cabinet, while the concealed evaporator makes the most efficient use of the interior volume.

The special wire condenser, which requires no cleaning, helps maintain performance over long-term use. The automatic fan cut-off switch, activated when the door is opened, minimizes warm air entering from outside. LED interior lighting makes products easy to see with low energy consumption.

Door, Gasket and Interior Rail Design

Reversible doors allow the unit to adapt easily to different kitchen layouts. The water-resistant front design offers durability in busy kitchen environments. The replaceable magnetic gasket with a triple insulation zone reduces heat loss.

The stainless steel interior rails, formed into the sheet metal, have rounded corners and are easy to clean. You can watch topics such as shelf counts, changing the door direction and the gasket in the Mutbex video.

Key Features

• Shelf Layout: GN 2/1 shelves, double half doors
• Body: 304 grade stainless steel
• Control: HACCP digital control panel, alarm recording and MODBUS support
• Cooling System: Monoblock design, fan-assisted air circulation
• Defrost: Smart defrost, minimal temperature rise during defrost
• Condenser: Special wire condenser requiring no cleaning
• Gasket: Replaceable magnetic gasket with triple insulation zone
• Insulation: 80 mm polyurethane walls at 40-42 kg/m³ density
• Door: Reversible, water-resistant front design
• Interior: Hygienic shelf rails and radiused interior base
• Lighting: LED interior lighting and automatic fan cut-off switch

Technical Specifications

• Model: GN 600 NMV
• Product Dimensions: 69 x 84 x 210 cm
• Capacity: 700 lt
• Operating Temperature: -2/+8 °C
• Refrigerant: R134A
• Power: 0.21 kW
• Electrical: 230 V, 50 Hz, single phase
• Number of Rails: 22+22
• Protection Class: IP2X
• Weight: 120 kg
• Certificates: CE, TSE, EAC, RoHS, Made in Türkiye
• Brand: Öztiryakiler

What to Consider When Choosing an Industrial Refrigerator

Capacity, daily usage intensity, the installation area and GN standard compatibility play a decisive role in choosing the right industrial refrigerator. The GN 2/1 shelf layout allows gastronorm pans to be placed directly in the cabinet, speeding up the transition between preparation and service.

You can watch the differences between upright and counter models, capacity selection by business type and ease of maintenance in the Mutbex video. For details, you can read our article Industrial Refrigerator Buying Guide.

Icing and Defrost

Ice build-up inside industrial refrigerators reduces cooling performance and increases energy consumption. Doors left open for long periods during service, products placed in a way that blocks air flow and worn door gaskets are among the main causes of icing.

The smart defrost and automatic fan cut-off switch of the GN 600 NMV help reduce this risk. You can watch how the defrost system works and the manual defrosting steps in the Mutbex video.

Details on the topic are available in our article Defrosting Industrial Refrigerators. For possible issues, you can also see our Industrial Refrigerator Troubleshooting Guide.

GN 600 NMV by Business Type

Business Type	How It Is Used	Key Benefit
Restaurant	Storing prepared mise en place and sauces in GN pans	Fast transition between preparation and service
Hotel	Storing breakfast and buffet products	Temperature monitoring with HACCP alarm records
Cafe and patisserie	Storing milk, cream and pastry ingredients	Space savings in tight areas with its upright design
Catering and cafeteria	Holding food before batch production	High-volume storage with GN 2/1 shelves
Hospital and institutional kitchen	Food storage in line with hygiene standards	Stainless body and easy-to-clean radiused interior

GN 2/1 Stainless Steel Wire Refrigerator Shelf

Businesses that want to add more shelves or replace worn ones can choose an extra shelf. The Öztiryakiler Stainless Steel Wire Refrigerator Shelf is compatible with GN 600 series refrigerators with its 53 x 65 cm GN 2/1 size.

For a more economical option, the PVC coated refrigerator shelf is also available. The right shelf rail and left shelf rail that hold the shelves are offered as spare parts.

GN 2/1 Gastronorm Pan

One of the main advantages of GN 2/1 refrigerators is that gastronorm pans can be placed directly on the shelves. With its 10 cm depth and GN 2/1 size, the Öztiryakiler Standard Gastronorm Pan allows prepared food to be stored and carried to service in the same container.

Models with different depths are listed in the standard gastronorm pan category. For size selection, you can read our article Gastronorm Pans.

Refrigerator Castor Kit

Businesses that want to move the unit easily during cleaning can choose castors. The Öztiryakiler Refrigerator 4-Piece Castor Kit consists of 2 braked and 2 unbraked 12 cm castors.

The braked castors help keep the unit stable during use, while the castor setup makes it easier to clean behind and under the cabinet.

Öztiryakiler GN 600 NMV Single Door Model

Businesses that prefer a single door model can consider the Öztiryakiler Monoblock Single Door Upright Refrigerator GN 600 NMV. The model belongs to the same series with its 304 grade stainless steel body and monoblock cooling system.

For higher volume needs, the GN 1200 NMV double door model is also available. For areas where products should be visible from outside, the double glass door GN 600 NMV can be preferred. All models are listed in the double door upright refrigerators category.

Benefits of the Öztiryakiler GN 600 NMV for Your Business

Feature	Contribution to the Business
HACCP digital control panel	Makes temperature monitoring easier in food safety inspections with alarm records.
GN 2/1 shelf layout	Speeds up preparation by allowing gastronorm pans to be placed directly.
Smart defrost and fan cut-off switch	Reduces icing and unnecessary energy consumption.
Wire condenser requiring no cleaning	Reduces maintenance needs and helps the unit run efficiently for longer.
304 stainless body and radiused interior	Offers easy cleaning and use in line with hygiene standards.

Frequently Asked Questions

What temperature does the Öztiryakiler GN 600 NMV operate at?

According to the product page, the unit operates at -2/+8 °C. This range is suitable for storing meat, dairy products, vegetables and prepared dishes. The temperature is monitored via the HACCP digital control panel.

Can the door direction be changed?

Yes, the unit has reversible doors. This allows the cabinet to adapt easily to different kitchen layouts. Planning the door opening direction before installation is recommended.

Can gastronorm pans be placed in the GN 600 NMV?

Yes, the cabinet has a GN 2/1 shelf layout. GN 2/1 gastronorm pans can be placed directly on the rails. According to the product page, the cabinet has 22+22 rails.

Can the refrigerator be used on castors?

Yes, optional marine-type feet or castors are offered for the unit. The Öztiryakiler 4-piece castor kit can be chosen for use on castors. The kit includes 2 braked and 2 unbraked castors.

Does the condenser need cleaning?

No, the unit uses a special wire condenser that requires no cleaning. This design helps maintain performance over long-term use. Regular cleaning of the door gasket and interior surfaces remains important for efficient operation.
