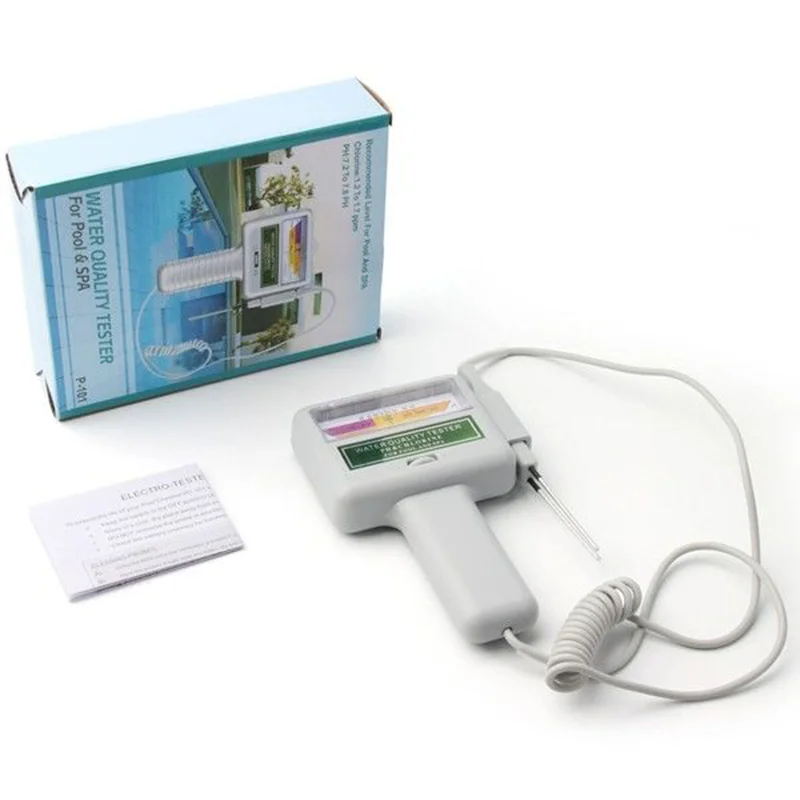

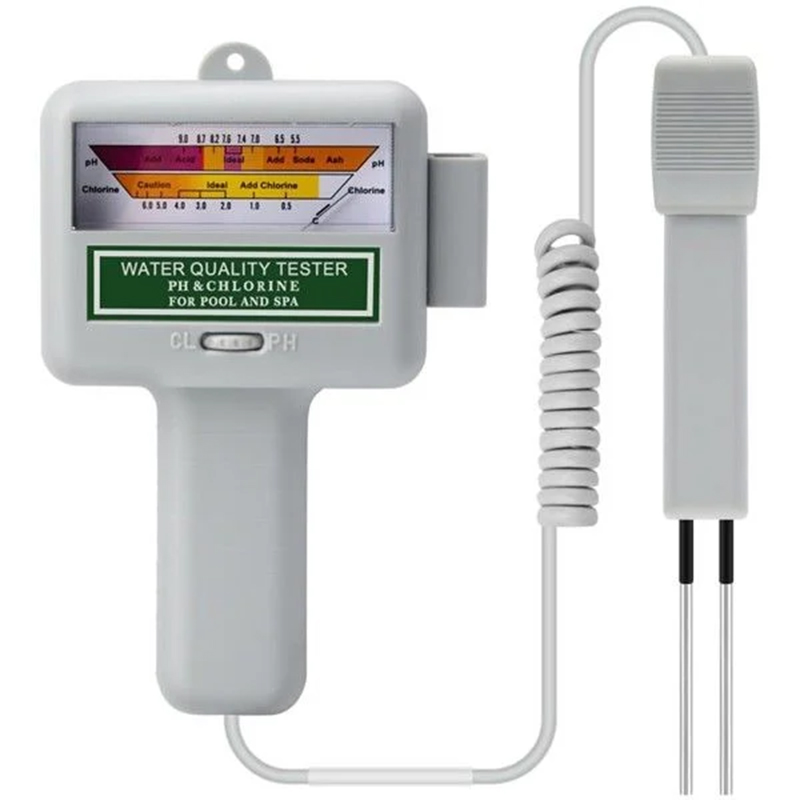

P-101 Ph and Chlorine Measurement Device

P-101 Ph and Chlorine Measurement Device

• The P-101 device is an easy-to-use measurement device that displays the chlorine and pH values in water both numerically and with a written color scale on the screen.

• In addition to displaying the pH and chlorine ratio numerically, the measurement device also allows checking with the colors on the test paper.

• Thanks to its large screen, pH and chlorine levels can be easily read.

• On the screen, the colors on the test paper are displayed in vivid and clear colors, making it easy to distinguish the colors.

• The device is very simple to use; it has a single button that can be used for both pH and chlorine measurements.

• To measure pH, turn the round part of the button to the right, and for chlorine measurement, turn it to the left.

• Thanks to its long cable probe, measurements can be made comfortably and practically.

• Suitable for measuring pH and chlorine levels in pools.

• Along with the product, a 5x5 cm sandpaper is provided; in case of rusting of the probe, the probe can be cleaned with this paper.

Device Calibration (Before First Use):

1. Pool or spa water is measured with a liquid test kit using a traditional method, and the obtained value is recorded (e.g., 1.5 PPM).

2. No presetting is required for pH measurement.

3. Insert "AA" 1.5V battery into the holding part of the device (the + pole of the battery should be at the top).

4. Hold the device in one hand and the probe in the other.

5. Immerse the cleaned probe tip into the water up to the black band and gently rotate it in the water.

6. Turn the adjustment knob to the left to the "CL" position, then slowly turn it to the right to set the needle to the value measured by the traditional method.

7. Without touching the adjustment knob, remove the probe from the water; the needle will stop at a letter between A and E on the dial. This letter is the calibration point.

Chlorine Level Measurement:

• The recommended chlorine level is between 1.2 and 1.7 PPM (for pools and spas).

• The needle is set to the calibration point.

• Immerse the probe in water up to the black band and wait until the needle stabilizes at a fixed value.

• While the probe is in the water, you can switch to pH measurement.

pH Level Measurement:

• The recommended pH level is between 7.2 and 7.8 (for pools and spas).

• While the probe is still in the water, turn the adjustment knob to the "PH" position until you hear a click (the battery should be out of the circuit for pH measurement).

• Wait until the needle stabilizes at a fixed value.

• After the measurement is complete, dry the probe and place it on the handles of the device.

TECHNICAL SPECIFICATIONS

• pH Measurement Range: 9.0 pH ... 5.5 pH

• Chlorine Measurement Range: 3.0 ppm ... 0.2 ppm

• Display: Analog

• Size: 165 x 94 x 30 mm

• Weight: 198 grams

• Power Source: 1 AAA battery
