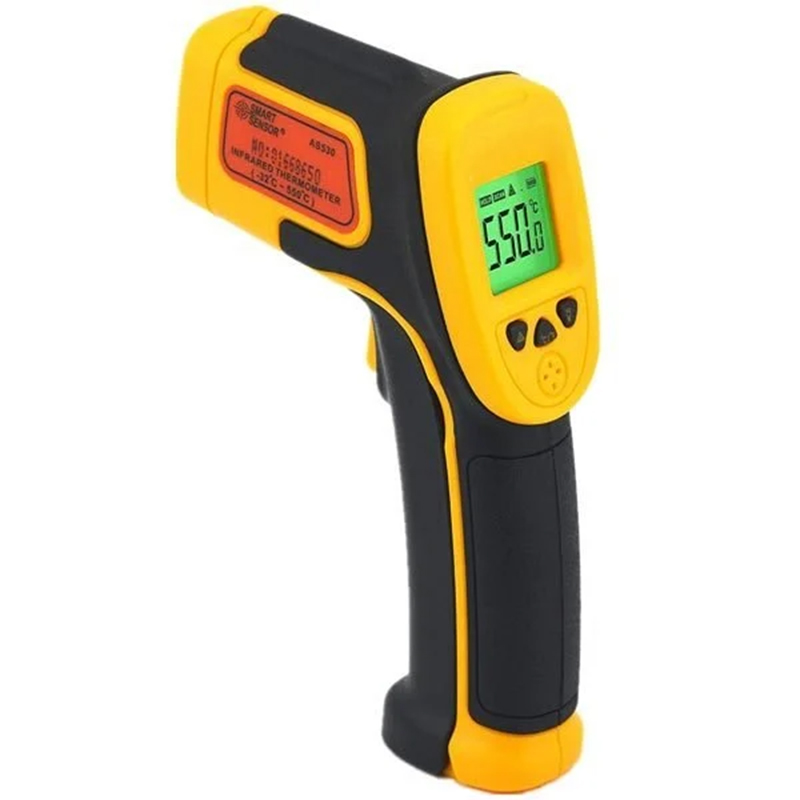

Smart Sensor AS530 Infrared Laser Temperature Gauge

Smart Sensor AS530 Infrared Laser Temperature Gauge

• Smart Sensor AS530 laser infrared temperature gauge; is an infrared temperature measuring device capable of measuring temperatures up to 550°C, with an ergonomic design, easy usage, and robust structure for industrial environments.

• Thanks to its laser, you can easily measure temperatures remotely.

• Smart Sensor AS530; is a type of infrared laser thermometer capable of measuring temperatures up to 550°C.

• With its single laser structure, you can target the area you will measure and easily measure the temperature of the specified area with the infrared sensor.

• With a temperature measurement range of 550°C, it has a wide range of usage.

• The laser temperature gauge provides the option to select either °C/°F units.

• After pressing and releasing the measurement trigger, the last temperature value read by the device is fixed on the screen.

• Thanks to the backlit light on the Smart Sensor AS530, you can easily use it in dark environments.

• You can easily turn the backlight on and off with a single button. If no measurement is made for 7 seconds while the light is on, the light automatically turns off.

• The red laser light, which allows you to easily see where you are measuring, can be easily turned off with a single button in inappropriate environments or measurements.

• Thanks to the automatic shut-off function in the temperature gauge device, if no operation is performed for 20 seconds, the device automatically turns off. This saves battery life.

• Additionally, you can easily track the battery status from the icon on the screen.

• The Smart Sensor AS530 infrared laser temperature gauge device operates with 2 pieces of 1.5V AAA batteries.

• Ensure the target is larger than the unit's dot (laser dot) size.

• The diameter of the measured parts should be 1.5 cm or larger.

• For a 10 x 10 cm area, the best test distance for temperature measurement is 20 cm.

TECHNICAL SPECIFICATIONS

• Laser Temperature Measurement Range : 32 ... +550 degrees

• Laser Temperature Sensitivity :

  • Between 0°C ... +100°C ±2 degrees

  • 100°C and above ±2 degrees

  • Between -32°C ... 0°C ±3 degrees

• Display Resolution : 0.1 degree

• Target Ratio : 12:1

• Emissivity : 0.95

• Display : Backlit LCD screen

• Laser Light : Single laser

• Response Time : 500 milliseconds

• Ability to Select °C/°F Units : Yes

• Hold Feature : Yes

• Automatic Shut-Off : Yes

• Dimensions : 146 x 80 x 38 mm

• Weight : 130 grams

• Power Source : 2 AAA batteries
