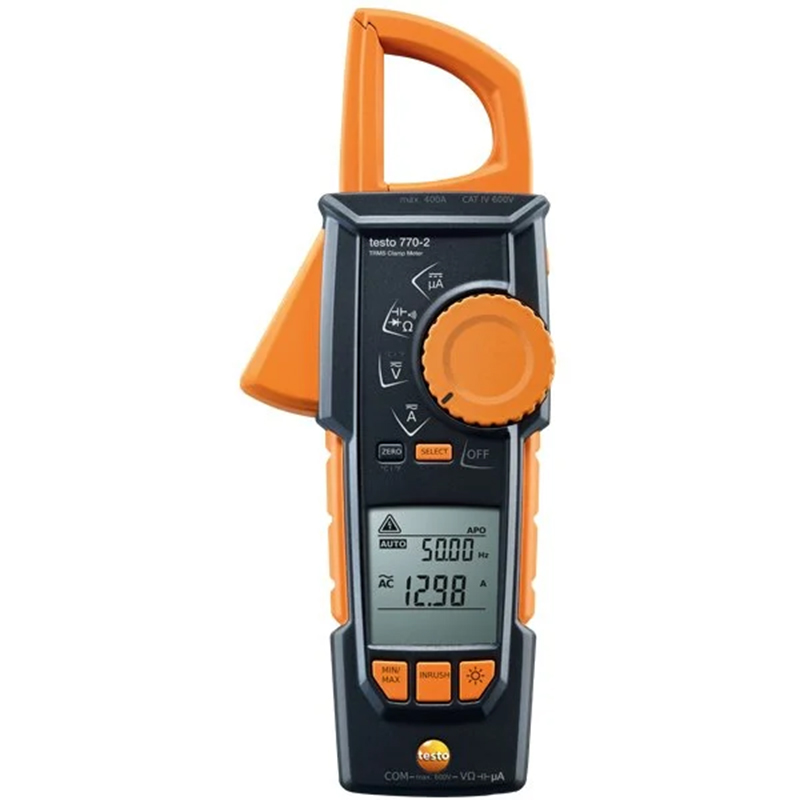

Testo 770-2 Clamp Meter

Testo 770-2 Clamp Meter

• Testo 770-2 clamp meter is an electrical measurement device that allows you to measure current without contact on tightly packed power cables or conductors. With the movable clamp arm fully retractable into the device, it can accurately grip conductors such as tightly packed cables.

• With the Testo 770-2 clamp meter, you can perform AC/DC voltage, AC/DC current, resistance, diode, and capacitance measurements.

• One of the most important features of this device is its True RMS function. True-RMS (rms = root of the mean squares) is a feature that can measure alternating current (AC) or AC voltage.

• The unique grip mechanism facilitates working in tight measurement points. You can see the current value of the cable passing through the clamp arm of the clamp meter on the screen without contact. Its wide clamp design allows easy use on thick cables.

• The Testo 770-2 meter detects both direct and alternating current in the current and voltage field and automatically selects other parameters such as resistance, diode, continuity, and capacitance.

• If you want a Bluetooth-enabled model, you can choose the Testo 770-3 clamp meter model.

• It features a large backlit 2-line LCD screen. You can easily read the measurement data with the backlight in low-light environments.

• You can connect a K-type probe to this clamp meter device with the Testo 0590 0021 adapter included in the box.

• By connecting the K-type probes you will purchase optionally to this adapter, you can measure temperature between -20℃ ... +500℃.

• For maximum flexibility, the clamp arm of the device is fully retractable.

• It can be easily used in switch cabinets. You can easily catch tightly packed cables in the cabinets without any difficulty.

• You can measure the instantaneous current value with the "INRUSH" button. With this feature, you can see the peak value of the current.

• With the "HOLD" button located on the right side of the Testo 770-2 meter, you can stabilize the values you measure on the LCD screen.

• You can display the maximum or minimum value of your measurements on the LCD screen with the Min/Max button.

• With the automatic shutdown feature, the device automatically shuts down to save energy when not in use.

TECHNICAL SPECIFICATIONS

• Resistance Measurement Range : Maximum 0.1 Ω

• Resistance Sensitivity : Not specified

• Resistance Resolution : Not specified

• Capacitance Measurement Range : 10 - 1000 μF

• Capacitance Sensitivity : Not specified

• Capacitance Resolution : Maximum 0.01 μF

• Diode Test : Available

• Continuity Test : Available

• Screen Backlighting : Available

• Hold Function : Available

• Temperature Measurement with Adapter : Available

• Automatic Shutdown : Available

• Min/Max Feature : Available

• Screen Counter Capacity : 4000

• Standards : EN 61326-1, EN 61010-2-032, EN 67140

• Operating Temperature : 0 °C ... 50 °C

• Storage Temperature : -10 °C ... 60 °C

• Dimensions : 269 x 96 x 43 mm

• Weight : 370 g

• Power Supply : 3 x 1.5 V AAA battery

• Screen : Backlit LCD display
