Testo Smart Ventilation Set (0563 0003 10)

Testo Smart Ventilation Set (0563 0003 10)

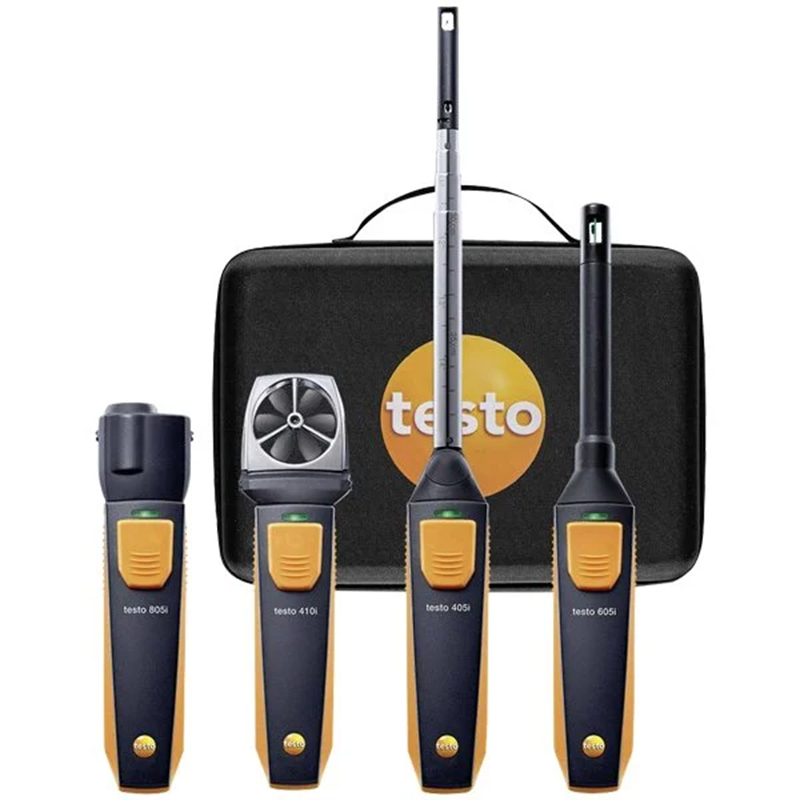

• Devices included in the set: Testo 405i Hot Wire Anemometer, Testo 410i Vane Anemometer, Testo 605i Thermo Hygrometer, Testo 805i Infrared Thermometer

• This set meets all equipment needs for measuring air speed and temperature in air conditioning and ventilation systems.

• Testo 405i Hot Wire Anemometer performs air flow speed and temperature measurement accurately and easily.

• Can be used in areas where vane probes cannot reach in narrow sections.

• The telescopic tip can extend up to 400 mm, so you can easily measure airflow in ducts.

• Testo 410i Vane Anemometer accurately measures air temperature and flow speed.

• Especially suitable for point measurements at vent outlets.

• Thanks to its 40 mm vane, you can easily size the air outlets.

• Testo 605i Thermo Hygrometer measures ambient and duct temperature and humidity.

• Automatically calculates dew point and wet bulb temperature.

• Detects areas with mold risk.

• Since the set devices do not contain a direct screen, measurement results can only be viewed through the "testo Smart Probes" mobile app.

• Devices connect via Bluetooth 4.0 to a smartphone or tablet.

• With the app, you can monitor measurement results in real-time, manually input area measurements to calculate volumetric flow, and send results to your email in PDF or Excel format.

• Compatibility: Requires iOS 8.3 or later, Android 4.3 or later, Bluetooth 4.0 supported devices.

• The carrying case of the set has separate compartments for four devices; thus, the devices can be transported and protected safely.

TECHNICAL SPECIFICATIONS

NTC

• Measurement Range

  • -20 … +60 degrees (testo 4051, testo 4101, testo 6051)

• Accuracy

  • ±0.5 degrees (testo 405i, testo 4101)

  • ±0.8 degrees (-200 degrees) (testo 605i)

  • ±0.5 degrees (0 … +60 degrees) (testo 6051)

• Resolution

  • 0.1 degrees (testo 4051, testo 410i, testo 6051)

Infrared

• Measurement Range

  • -30 … +250 degrees

• Accuracy

  • ±1.5 degrees or ±1.5% of measurement value (0 … +250 degrees)

  • +2 degrees (-20 … -0.1 degrees)

  • 2.5 degrees (-30 … -20.1 degrees)

• Resolution

  • 0.1 degrees

Capacitive Humidity Sensor

• Measurement Range

  • 0 – 100 %rF

• Accuracy

  • 5 … 80 %rF range: ±(1.8 %rF + 3) @ +25 degrees

• Resolution

  • 0.1 %rF

Heated Wire

• Measurement Range
  0 … 30 m/s

• Accuracy

  • (0.1 m/s + %5 of measurement value) (0 … 2 m/s)
    ± (0.3 m/s + %5 of measurement value) (2,15 m/s)

• Resolution
  0.01 m/s

General Technical Information

• Dimensions

  • 200 x 30 x 41 mm (testo 4051)

  • 140 x 36 x 25 mm (testo 8051)

  • 154 x 43 x 21 mm (testo 410i)

  • 243 x 30 x 24 mm (testo 605i)

• Operating Temperature - Body

  • -20 … +50 degrees (testo 405i, testo 410i, testo 605i)

  • -10 … +50 degrees (testo 8051)

• System Requirements

  • IOS 8.3 or later version required

  • Android 4.3 or later version required

  • Bluetooth 4.0 supported mobile device required

• Storage Temperature

  • -20 … +60 degrees

• Weight

  • 660 grams

• Vane Diameter

  • 40 mm (testo 4101)
