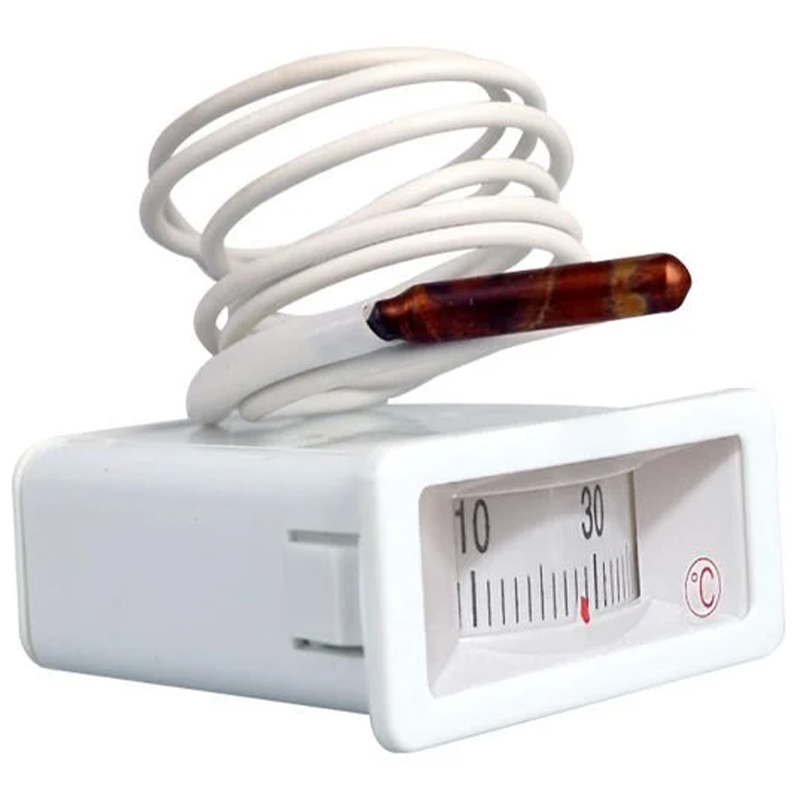

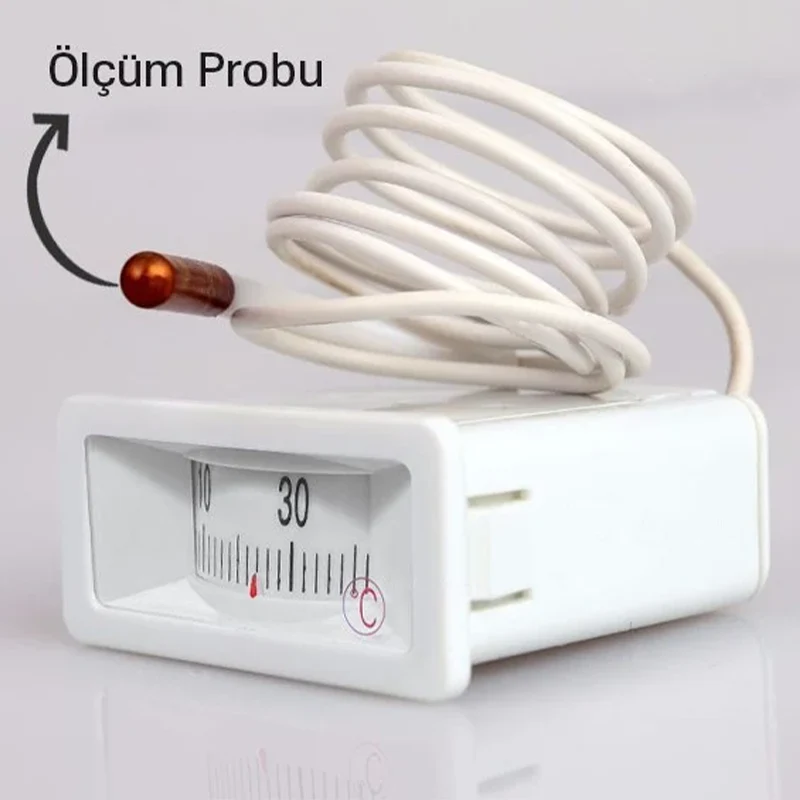

WTY-100B Socketed Mechanical Thermometer

WTY-100B Socketed Mechanical Thermometer

• The WTY-100B socketed mechanical thermometer device is an analog thermometer device capable of measuring temperatures between -10°C and +110°C and displaying these results on the measurement scale.

• The WTY-100B measures temperature mechanically between -10 degrees and +110 degrees.

• The spring mechanism connected to the copper wire inside the device moves with the increase or decrease in heat. As a result of this movement, the temperature value is displayed on the measurement scale.

• You can easily place the analog thermometer device in a panel or similar area with the socket slots located on the sides of the device.

• With its easy-to-read dial display, you can simply track your measurement results.

TECHNICAL SPECIFICATIONS

• Weight: 71 gr.

• Power Source: Not Required

• Temperature Measurement Range: -10 … +110 degrees

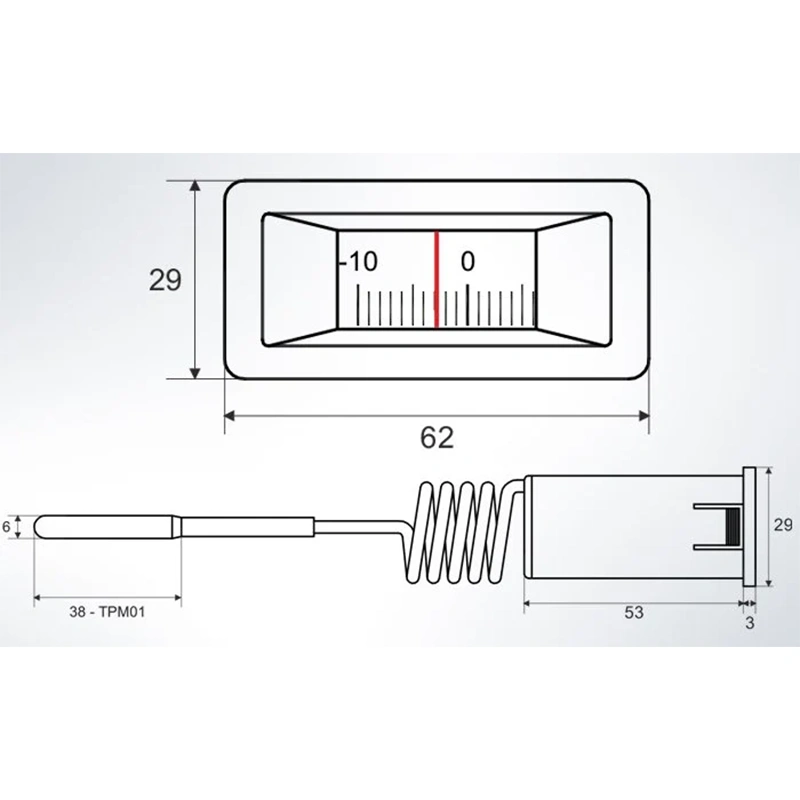

• Dimensions: 29 x 56 x 62 mm

• Probe Cable Length: 1 meter

• Temperature Resolution: 1 degree
