AZ 8838 Laser and Probe HACCP Thermometer

AZ 8838 Laser and Probe HACCP Thermometer

• Wide Temperature Measurement Range:
Measurements can be taken with an infrared (IR) sensor in the range of -40°C to +280°C and with a stainless steel probe in the range of -40°C to +200°C.

• High Sensitivity and Fast Response Time:
The infrared sensor of the device provides a measurement in as little as 500 milliseconds. The RTD type Pt100 probe offers high sensitivity up to ±0.5°C.

• Countdown Feature:
The device is equipped with a countdown timer up to 9 hours 59 minutes 59 seconds. It gives an audible alarm when the timer reaches zero. This feature allows monitoring of temperature over a specific period in HACCP applications.

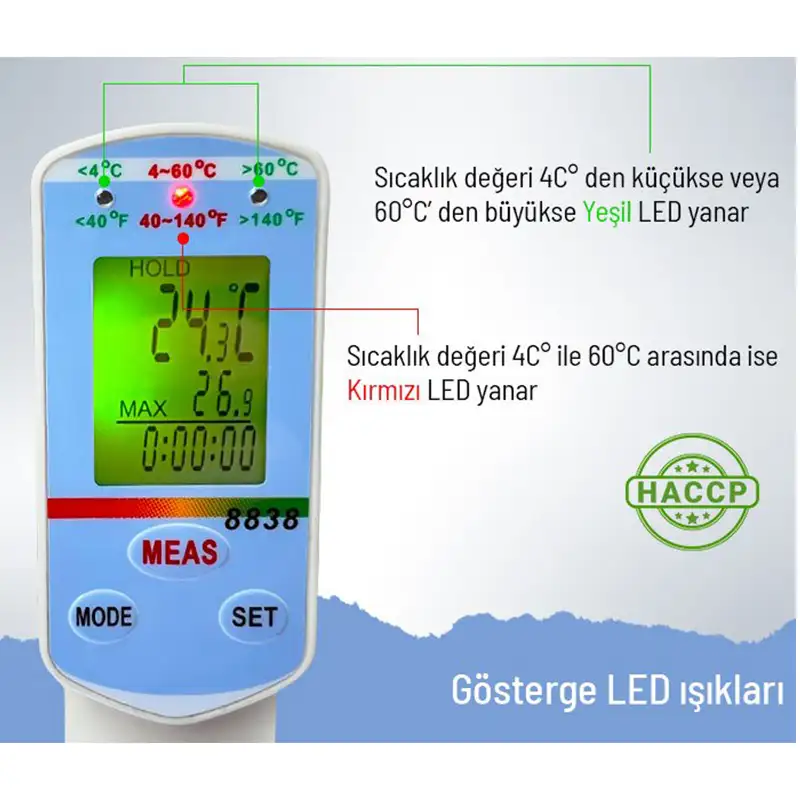

• LED Warning System:
Warning lights illuminate based on the temperature condition during measurement:
– Green LED: Lights up if the temperature is <4°C or >60°C.
– Red LED: Lights up if the temperature is between 4°C–60°C (indicates a dangerous temperature range).

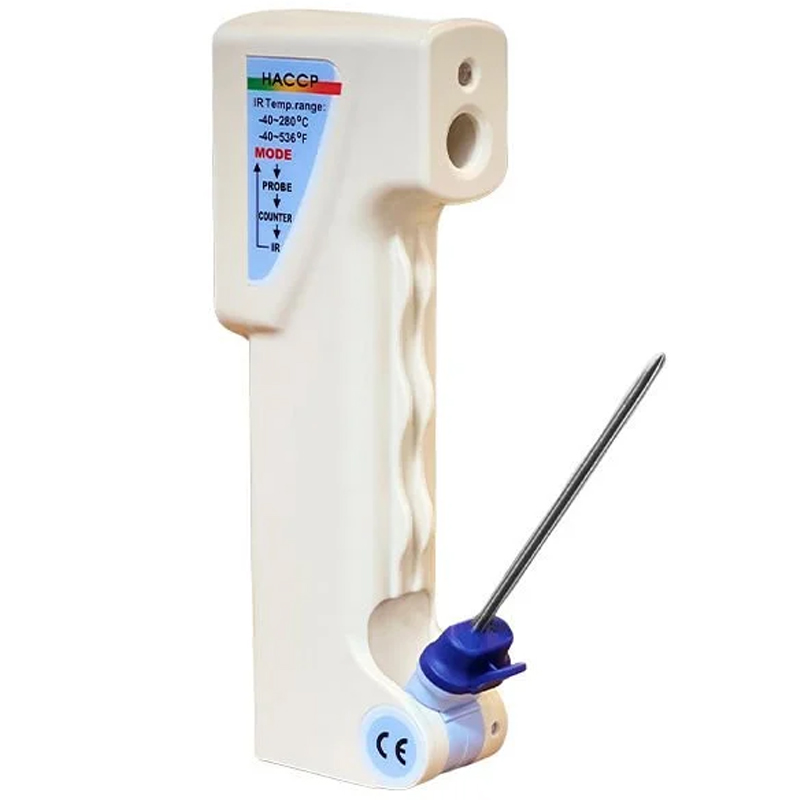

• Contactless and Contact Measurement Capability:
– Infrared sensor: Measures surface temperature without contact.
– RTD Pt100 probe: Accurately measures the temperature of liquid and semi-solid samples with direct contact.

• IP65 Protection Class:
The device is resistant to dust and water splashes.

• Usage Areas:
With its HACCP compliant structure, it can be used in food processing, restaurants, bakeries, and home kitchen applications. Suitable for semi-solid and liquid foods; not recommended for hard and frozen materials.

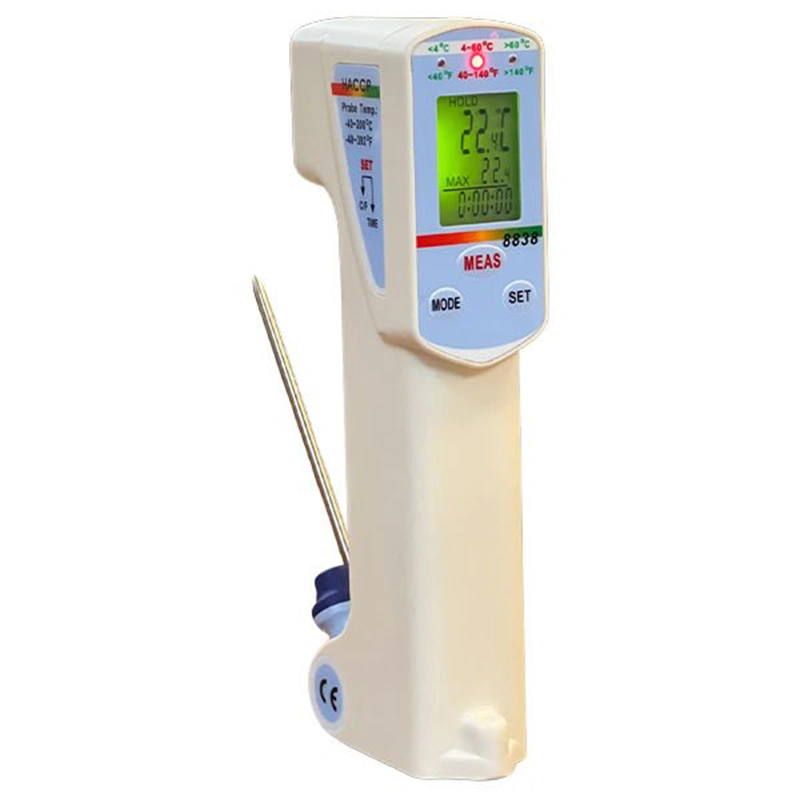

• Practical Use:
– MODE button: Switches between infrared and probe modes, activates the timer.
– SET button: Allows switching between °C / °F units and increasing the timer duration.
– MEANS button: Functions as a measurement and timer start.

• Additional Features:
– Backlit LCD screen
– Hold feature
– Maximum temperature memory
– 3:1 target ratio
– Illuminated measurement point display

What is RTD Type Pt100 Probe?

RTD (Resistance Temperature Detector) is a sensor that measures temperature based on resistance change. The term Pt100 means the sensor gives a resistance of 100 ohms at 0°C.
These probes made of platinum:

• Provide high accuracy,

• Stable performance,

• Long life, and

• Reliable measurements over a wide temperature range.

Commonly used in areas requiring precise temperature control such as food, laboratory, industrial production, and quality control.

Technical Specifications

• Infrared Measurement Range: -40°C . . . +280°C
• Infrared Sensitivity:
– < 0°C → ±1°C
– 0 ~ 65°C → ±1°C
– > 65°C → ±1.5°C

• Probe Measurement Range: -40°C . . . +200°C
• Probe Sensitivity:
– < -5°C → ±1°C
– -5 ~ 65°C → ±0.5°C
– > 65°C → ±1.5°C

• Resolution: 0.1°C
• Probe Length: 82 mm
• Response Time: 500 ms
• Target Ratio: 3:1
• Stainless Steel Probe: Yes
• Contactless Measurement: Yes
• Hold Feature: Yes
• °C / °F Selection: Yes
• Min/Max Feature: Only Max
• Screen: Backlit LCD
• Protection Class: IP65
• Dimensions:
– 167 x 61 x 35.5 mm (probe closed)
– 265 x 48 x 21 mm (probe open)
• Weight: 141 gr
• Box Contents:
– 1 AZ 8838 food thermometer
– 1 9V battery
– User manual
