Öztiryakiler Industrial Type Dishwasher Touch Screen, OBY 500 T Plus, 50x50 cm with Basket, 4 Pumps
Öztiryakiler undercounter industrial type dishwasher is durable with its stainless steel body. The oby 500 d plus, which can wash 35 baskets per hour in industrial type undercounter dishwashers, is easy to use with a user-friendly digital display panel. The basket dimensions of the Oby 500 d plus model are 50x50. It offers 5 pre-selectable washing programs to provide the desired performance for your business, and you can track fault situations on the digital screen. Öztiryakiler's "professional dishwasher" can be installed in your kitchen with adjustable feet.
The improved and performance-enhanced new model with code 1M.0710.00500.03.
Body, boiler, and washing tank made of stainless steel
Monolithic and rounded corner hygienic washing tank
Capacity to wash 35 baskets per hour (Basket dimensions 50cmx50cm)
2.8 liters of water consumption per washing cycle
Water temperatures can be seen from the front panel

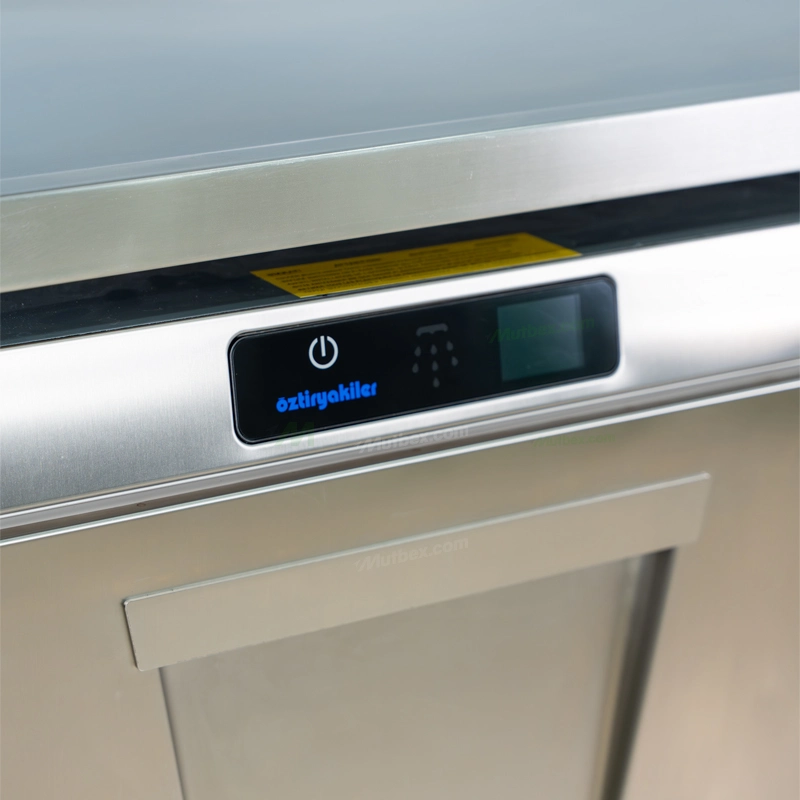

User-friendly digital control panel
5 pre-selectable washing programs
Savings in energy, detergent, and water use
Washing arms available in stainless steel and reinforced polypropylene(PP)
Height optimization with adjustable feet
Easy start-up; one-button water filling and heating for boiler and washing tanks
Electrical components and wiring systems comply with international standards and safety regulations
The entire body is insulated and has IPX5 protection standard against water
Thermostat-controlled rinse and wash temperatures for effective washing
Valve system preventing the return of water in the machine to the plumbing
Washing water temperature 55-60°C (provided the supply water is at least 2 bar and 50°C)
Rinse water temperature 80-85°C (provided the supply water is at least 2 bar and 50°C)
Fault situation tracking on the screen
Comes with 1 plate basket and 1 cutlery holder
TYPE: Electric
WIDTH (cm): 60
DEPTH (cm): 66
HEIGHT (cm): 82.5
NET WEIGHT (Kg): 65
GROSS WEIGHT (Kg): 75
VOLUME (m3): 0.33
CAPACITY: 560 Plates/Hour
ELECTRIC POWER: 5.5
VOLTAGE: 230V - NPE
FREQUENCY: 50 Hz
HOT WATER PRESSURE: 2-4 bar
HOT WATER HARDNESS: 0-10 French Hardness
COLD WATER INLET DIAMETER: 3/4 ''
COLD WATER PRESSURE: 2-4 bar
COLD WATER HARDNESS: 0-10 French Hardness
DRAIN INLET DIAMETER: Ø 25
TANK VOLUME: 30
BOILER VOLUME: 6
WASHING PUMP FLOW RATE: 356
RINSE PUMP FLOW RATE: 18
BOILER HEATER POWER: 5
TANK HEATER POWER: 2
WASHING PUMP POWER: 0.66
RINSE PUMP POWER: 0.37
WASHING WATER TEMPERATURE: 55 - 60
RINSE WATER TEMPERATURE: 80 - 85
DRYING FAN POWER: -
MAXIMUM NOISE: 75
PROTECTION CLASS: IPX5
*Product content information is obtained from the manufacturer.
