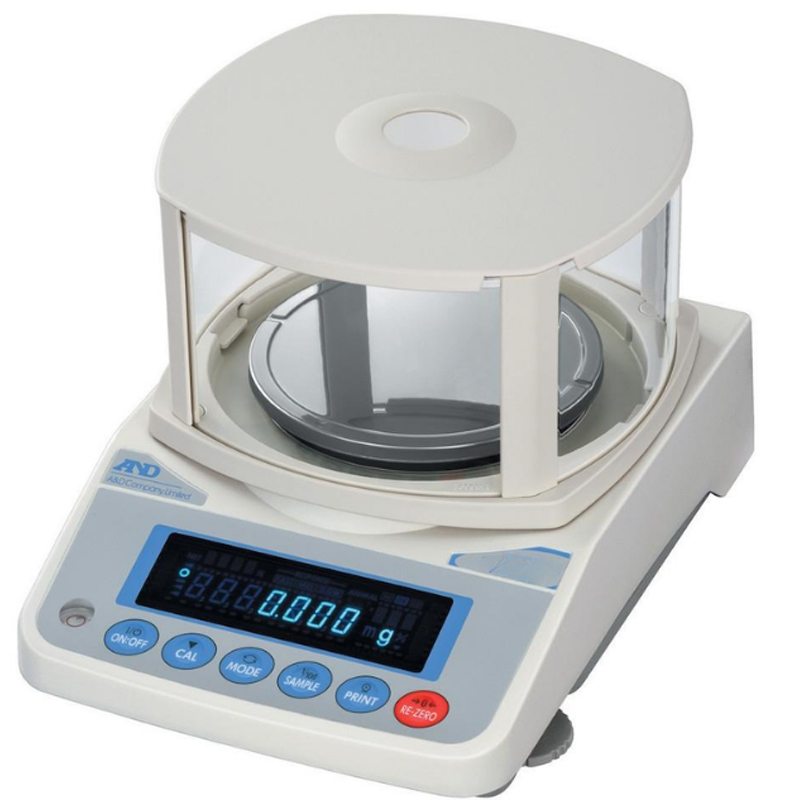

Notify me when its in stockAND FZ 500İ precision scale is a digital weighing device with a capacity of 520 grams and a precision of 0.001 grams.
The scale has a backlit VFD display for easy viewing of your measurements even in dark environments.
You can easily connect the scale to a computer or a printer with the RS-232C cable.
The stabilization time of this scale is approximately 1 second.
With the WinCT software that comes with the AND FZ 500İ precision scale, you can transfer your data to the MS-Office environment.
This device can weigh in 13 different units (g, oz, lb, lb-oz, ct, mom, dwt, GN, tl, tol, mes, pcs, %MLT).
With the "Print" button on the scale, you can get an output from the printer you will connect externally.
This precision weighing scale is GLP / GMP / GCP / ISO compliant.
You can turn the device on or off with the "On/Off" button.
With the piece counting feature, you can perform counting based on unit weight by giving a sample to the scale.
You can perform the calibration setting of the scale with the "CAL" button.
With the "RE-ZERO" button, you can easily zero the measured value of the scale and prepare the device for new weighing.
If no operation is performed for 10 minutes with the scale, it automatically turns off to save power.
With the underhook feature, the scale can perform bottom weight measurement with its lower hook as well as weighing from the upper pan.
This digital precision scale has internal calibration.
To understand whether the scale is balanced, a water level is located on the front of the scale.
If there is an imbalance in the scale, it can be corrected with its adjustable feet.
This device operates with a standard AC adapter.
The AND FZ 500İ digital weighing device has an anti-magnetic alloy casing.
SEMI-ANALYTICAL SCALE TECHNICAL SPECIFICATION
The device's maximum weighing capacity should be 520 g.
The device's precision should be 0.001 g.
The device's repeatability should be 0.001 g.
The device's linearity should be ± 0.002 g.
The device's sensitivity drift at 10°C to 30°C should be ± 2/ C ppm.
The device's stabilization time should not be more than 1 second.
The device's display refresh rate should not be more than 5 times per second in stable condition, and more than 10 times per second in unstable condition.
The device should be able to weigh in units of g, mg, oz, ozt, ct, mom, dwt, Gn, tl, t and m.
The device should be able to perform particle counting, %, comparator.
The device should be able to automatically perform the statistical calculations of the measurements made without the need for any additional device.
The device's weighing pan should not be less than 130 mm and should be made of corrosion-resistant non-magnetic material.
The device should be able to sum up consecutive weighing results.
The device's capacity indicator should be in % and should show the user how much weighing capacity is left on the screen.
The device should have fully automatic motor-driven calibration.
The device's indicator should be VFD.
The device's keypad should be of membrane type, and the indicator and keypad should be protected against dust and splashes.
The device should have a power on/off button, tare button, setting button for functions, data exchange button for printer and computer, a button to adjust weight units and precisions, and a calibration button.
The device should have an under-scale weighing hook for weighing magnetic materials.
The device should have GLP, GMP, GCP, ISO compatible documentation feature. Calibration data should be documented with the device's identification number.
The device should optionally have Ethernet and LAN computer outputs.
The device should have a balance level to check whether it is level at the place where it is installed, and it should have height-adjustable, balance-adjusting feet to ensure the device's balance.
The device should have a standard RS-232C interface connection for documentation, and it should be able to connect to a printer or computer optionally.
The computer software that will enable data transfer from the device to the computer should be provided free of charge with the device.
The device should be able to directly transfer data to computer applications such as Excel, the scale should be controllable via computer, graphs should be able to be created from weighing results, and statistical maximum, minimum, average, standard deviation, and % constant should be automatically calculated.
Optional printer, foot pedal, external control unit, rechargeable battery should be able to be attached to the device.
The device should have CE and ISO certificates.
Weighing Capacity: 520 gr
Weighing Precision: 0.001 gr
Pan Size: Ø130 mm
Stability Time: 1 sec
Calibration: Internal Calibration
Counting Precision: 0.001 gr
Display: VFD
Linearity: ±0.002 gr
Tare Capability: Yes
Hold Feature: Yes
Zeroing Feature: Yes
Units Weighed: g, oz, lb, lb-oz, ct, mom, dwt, GN, tl, tol, mes, pcs, %MLT
Scale Dimensions: 193 x 262.5 x 85.5 mm
Underweighing Function: Yes
Underweighing Hook: Yes
Power Source: 11VA AC Adapter (included)
Operating Temperature: 5°C ... 40°C (41°F ... 104°F)
RS232 Output: Yes
