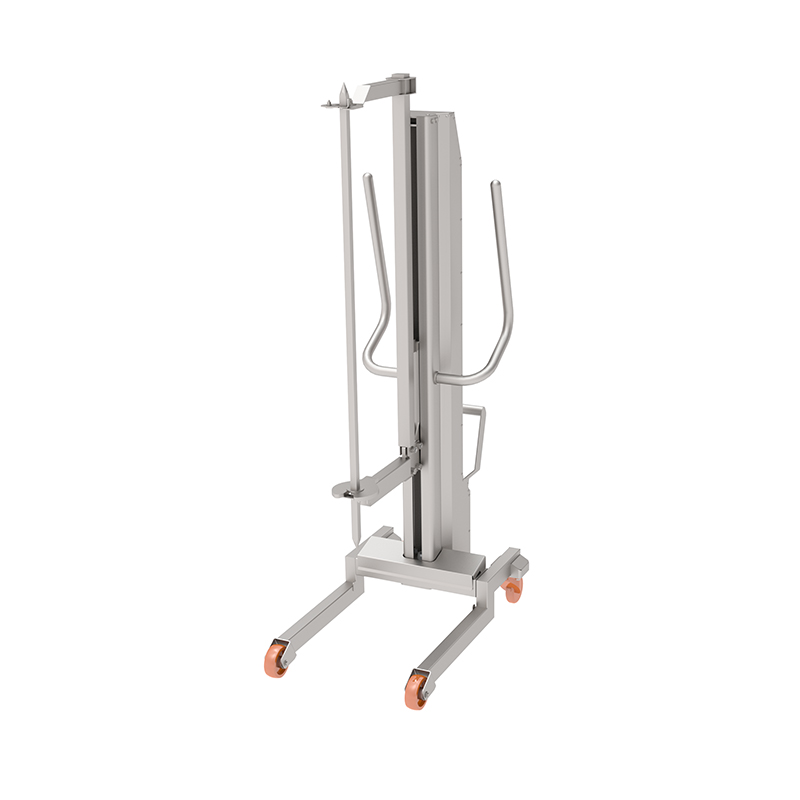

Atalay Döner Lift, 56,6x89x160,5 CmADST 04

Atalay Döner Lift, 56,6x89x160,5 CmADST 04

General Features

• The skewer must be held from the bottom, it comes without a tray.
• Not suitable for wrapping on top.
• For all ADR döner robots.
• For all compact series döner robots.
• Has a secure skewer locking system.
• Foot pedal hydraulic lifting system
• Thanks to its hydraulic structure, precise height positioning can be achieved.
• Can lift up to 350 Kg.

Technical Specifications

• Dimensions: 566x890x1605 Mm
• Weight: 88 Kg
• Minimum Lifting Distance: 30 cm
• Maximum Lifting Distance: 123 cm
• Maximum Döner Diameter and Height: 62 cm
• Trayless.
