Cem LA-1011 Lan Cable Tester and Multimeter

Cem LA-1011 Lan Cable Tester and Multimeter

The Cem LA-1011 is a precise testing device used not only for multimeter measurements such as current, voltage, and resistance, but also for testing network cables, telephone lines, and other wiring.
When used properly, the product will provide reliable service for many years.

• CEM LA-1011 is a multifunctional measurement device featuring multimeter functions including current, voltage, and resistance, along with the ability to test network cables, telephone lines, and other wiring.
• It provides reliable service for many years when used correctly.

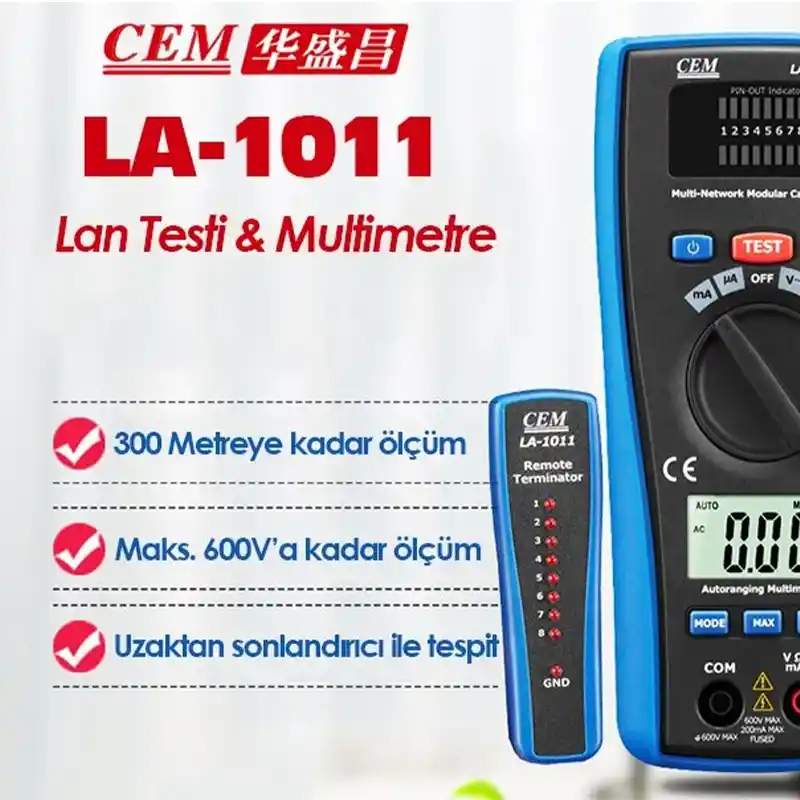

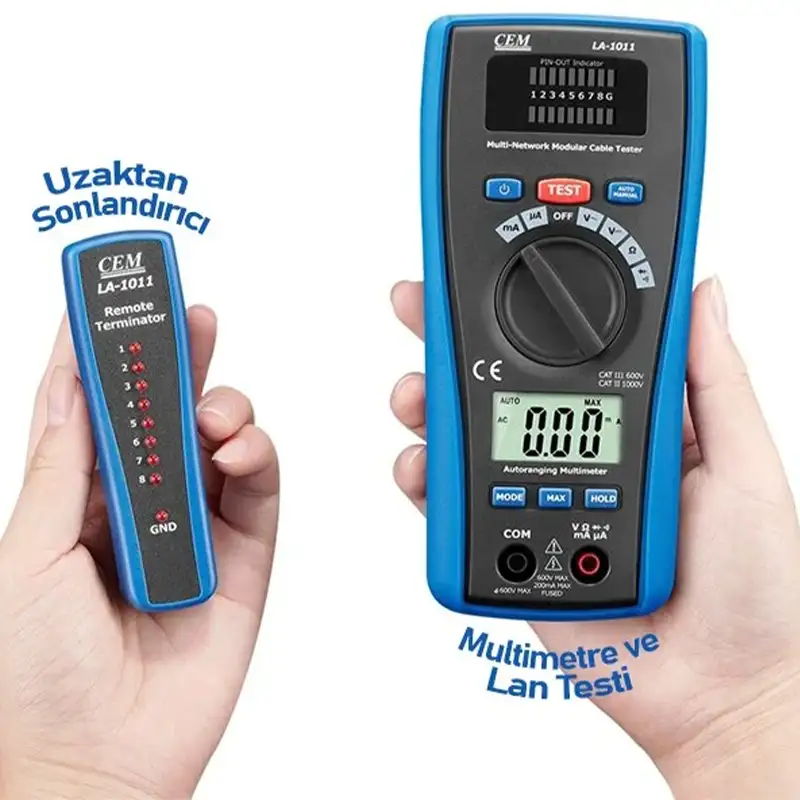

• Thanks to the included Remote Terminator accessory, cables inside walls or panels up to 300 meters away can be tested remotely.
• Multimeter functions:
  • DC/AC voltage measurement
  • DC/AC current measurement
  • Resistance measurement
  • Continuity test
  • Diode test
• Correct pin configuration can be tested for cables such as 10Base-T, 10Base-2 thin Ethernet cables, RJ45 / RJ11 modular cables, 258A, TIA-568A / 568B, and Token Ring.
• Cable faults and connection errors are easily detected.
• Issues such as cable continuity, open circuits, short circuits, grounding faults, and crossed connections can be detected.
• LAN tests can be performed via automatic or manual scanning.
• Grounding cable testing is possible.
• The device can be used safely within CATIII 600V and CATII 1000V safety classes.
• An automatic shut-off feature is included for the multimeter functions and is adjustable.

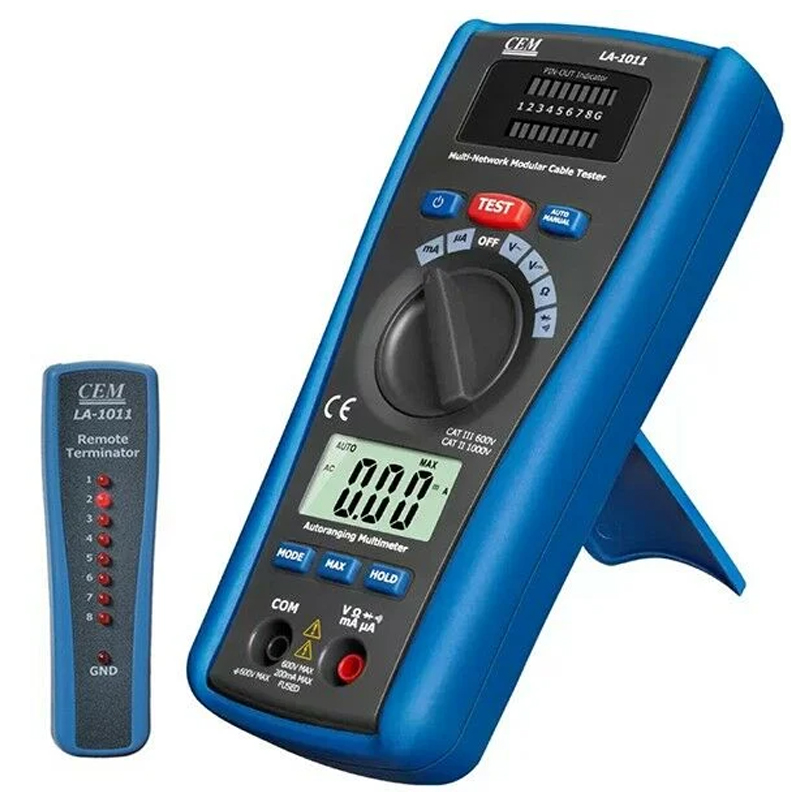

• The device is protected by a semi-hard blue case that absorbs shocks.

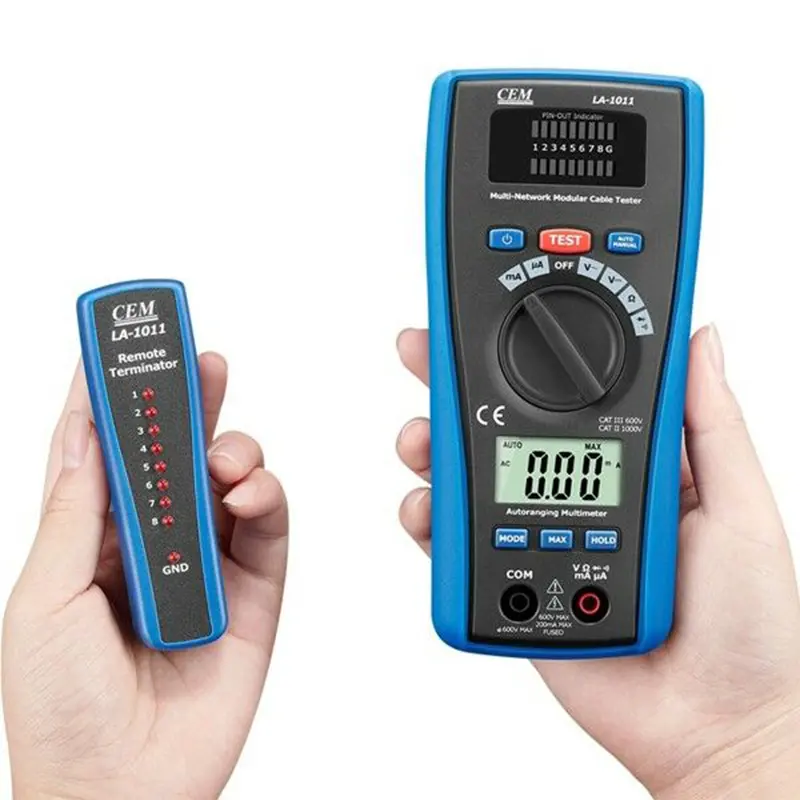

• Testing of the 8 copper wires inside LAN cables is done with the help of the indicator located at the top right corner on the device.

BOX CONTENTS

• 1 × CEM LA-1011 main unit
• Test probes
• LAN cable
• BN cable
• 1 × 9V battery
• 2 × AAA batteries
• Carrying case

TECHNICAL SPECIFICATIONS

• AC Voltage Measurement Range: 600V
• AC Voltage Accuracy: ±1.2%
• DC Voltage Measurement Range: 600V
• DC Voltage Accuracy: ±0.5%
• AC Current Measurement Range: 200mA
• AC Current Accuracy: ±2%
• DC Current Measurement Range: 200mA
• DC Current Accuracy: ±1.5%
• Resistance Measurement Range: 20 MΩ
• Resistance Accuracy: ±0.8%
• Diode Test: Maximum 1mA test current, 1.5V open circuit voltage
• Continuity Test: Beeps if resistance is below 100Ω
• Auto Power Off Time: 15 minutes
• Power Supply: 1 × 9V battery + 2 × AAA batteries
• Dimensions: 162 × 74.5 × 44 mm
• Weight: 308 grams
