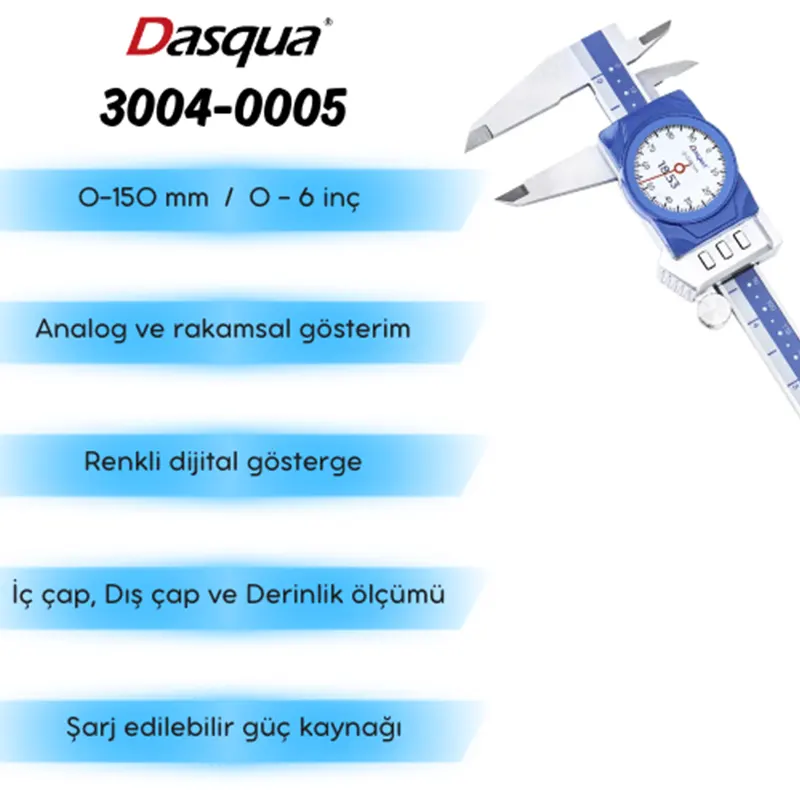

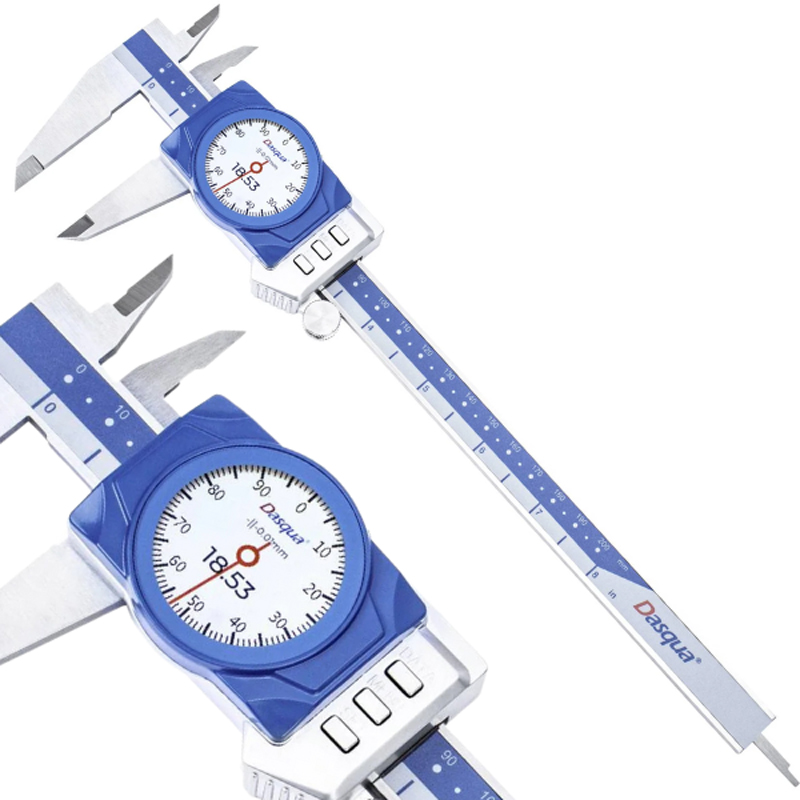

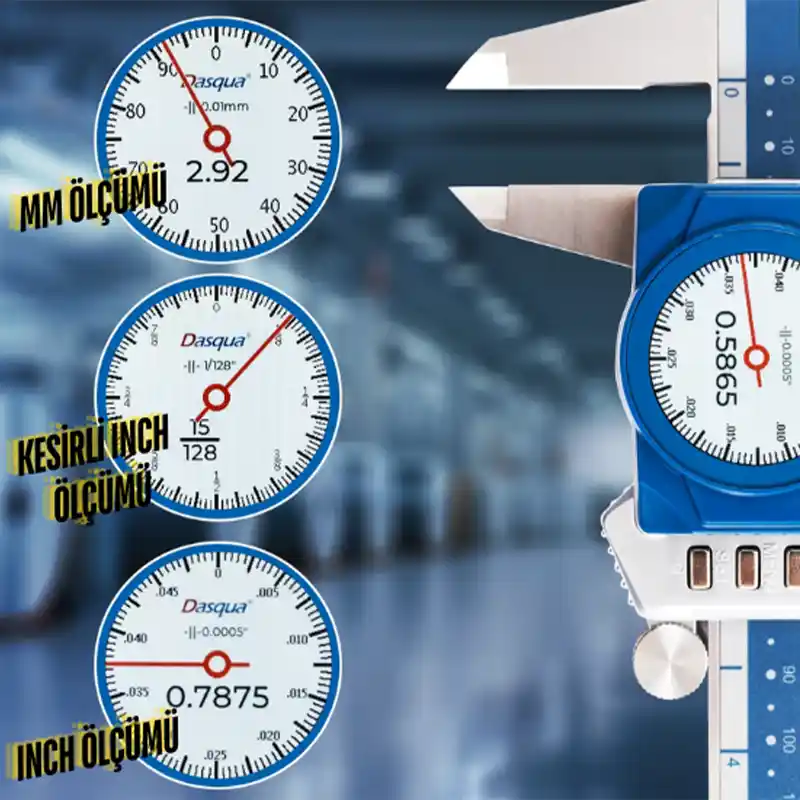

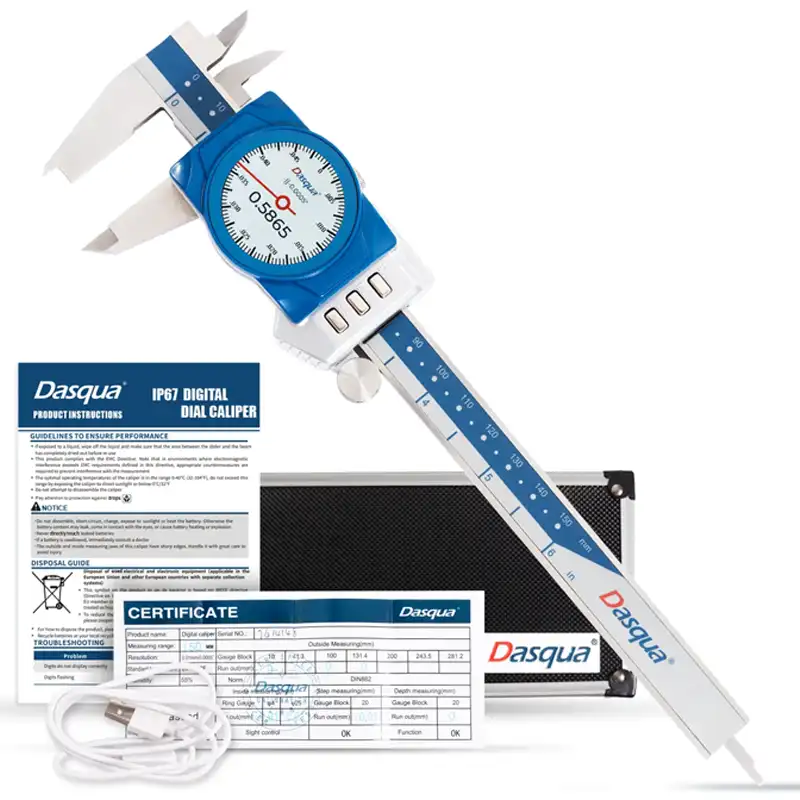

Notify me when its in stockThe Dasqua 3004-0005 thickness gauge is a high-performance measuring device with the rare feature of offering both a digital numeric display and a digital dial display together. It provides a wide range of use with three different measurement modes: inch, millimeter, and fractional inch.
With a measurement range of 0 - 150 mm (0 - 6 inch) and an accuracy of 0.01 mm, it offers reliable and accurate results even in the finest details. Its high-contrast and color digital display, readable from a 180-degree angle, ensures easy and clear reading of measurement values.

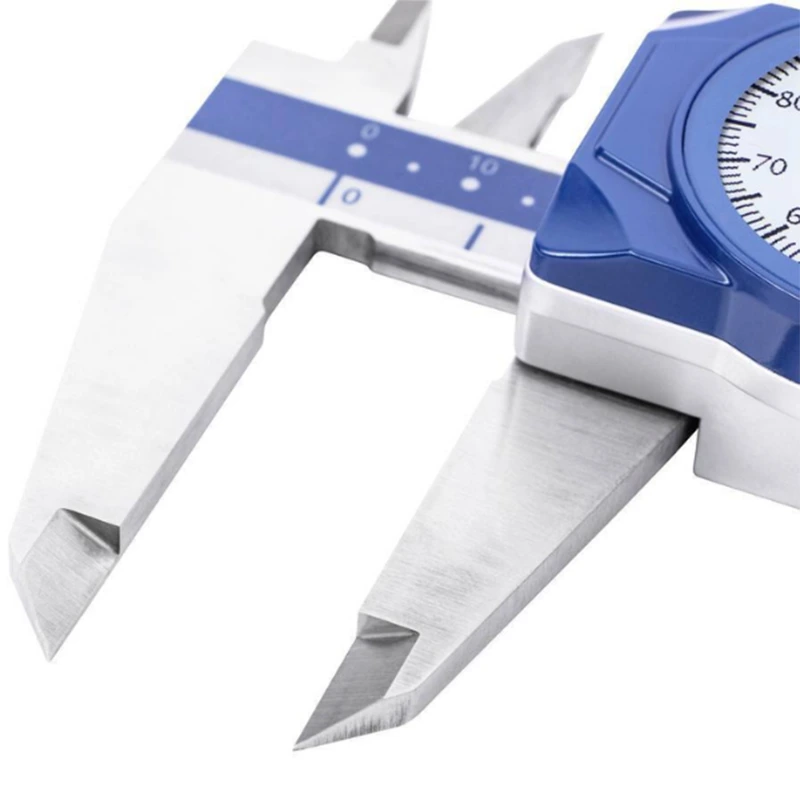

Manufactured in full compliance with DIN 862 standards, the device guarantees long-term use and high performance even under challenging conditions, thanks to its hardened, ground, and lapped measuring surfaces. Smoothly moving and precisely accurate measuring surfaces help you achieve consistent and definite results.

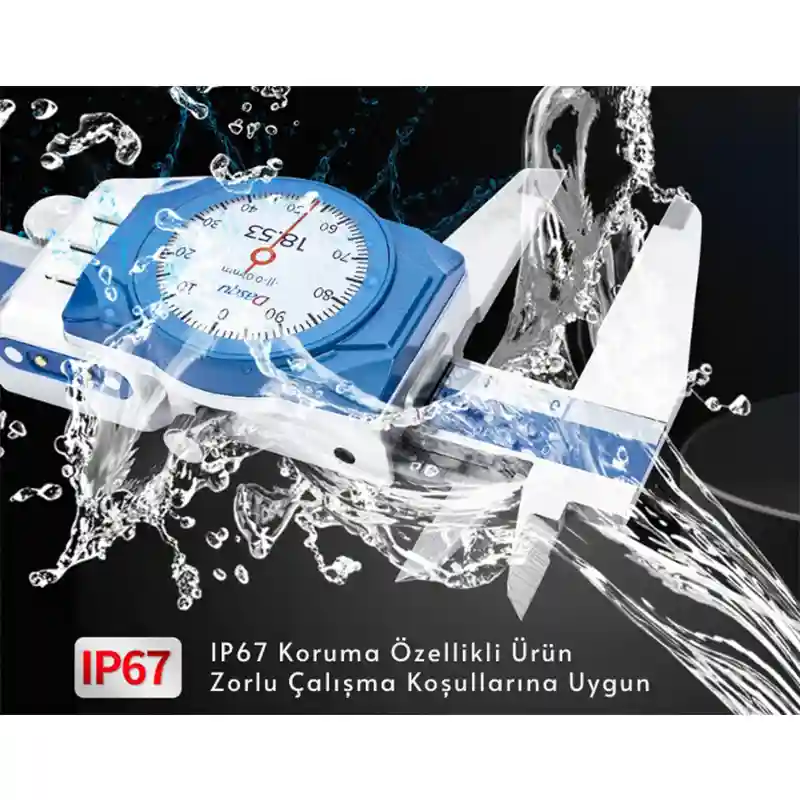

With IP67 protection class, the Dasqua 3004-0005 is resistant to water and dust, making it safe to use in industrial conditions. Its inductive measurement system provides superior data flow with low error margin in applications where precise tolerances are important.
Thanks to its tolerance setting and tolerance alarm functions, it gives a quick alert when measurement limits are exceeded, enhancing the reliability of quality control processes.

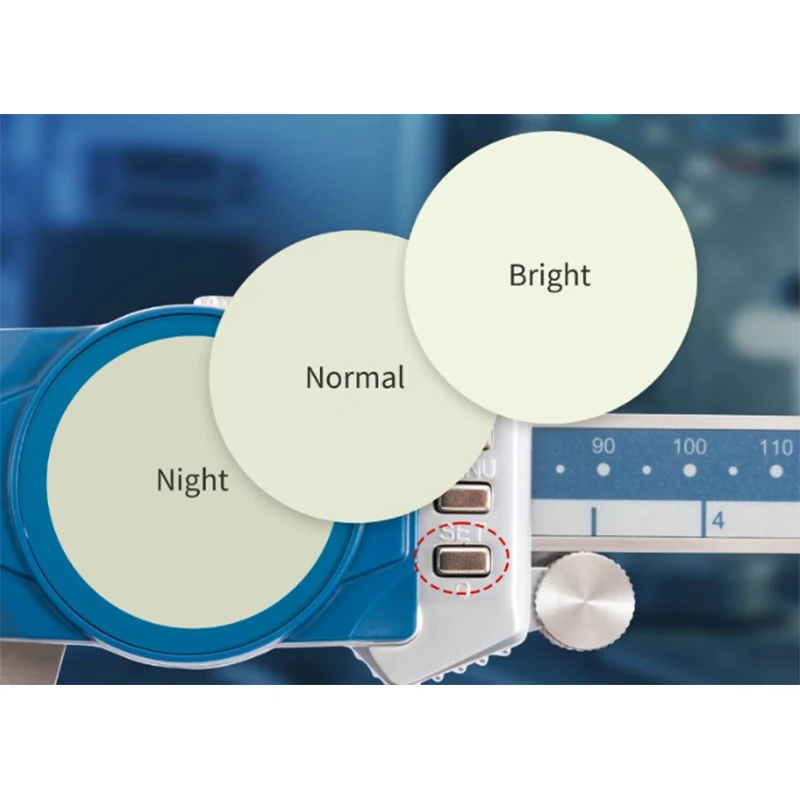

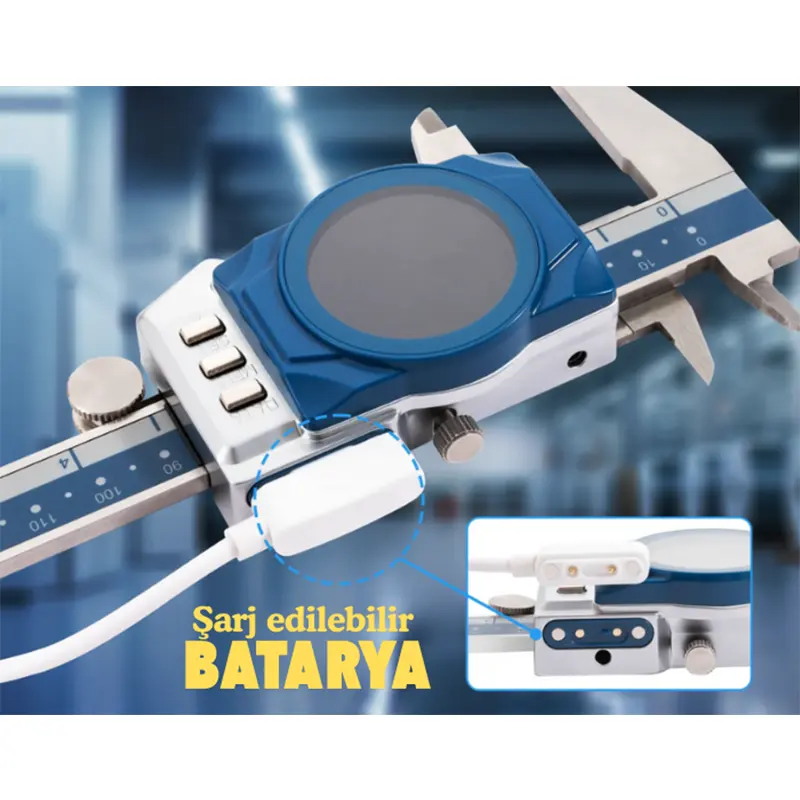

A 1000 mAh rechargeable lithium battery and magnetic charging connection provide long-term operation. The automatic shutdown time can be user-adjusted from 15 seconds to 10 minutes in the menu. The screen illumination can be changed in three levels: night, normal, and bright.

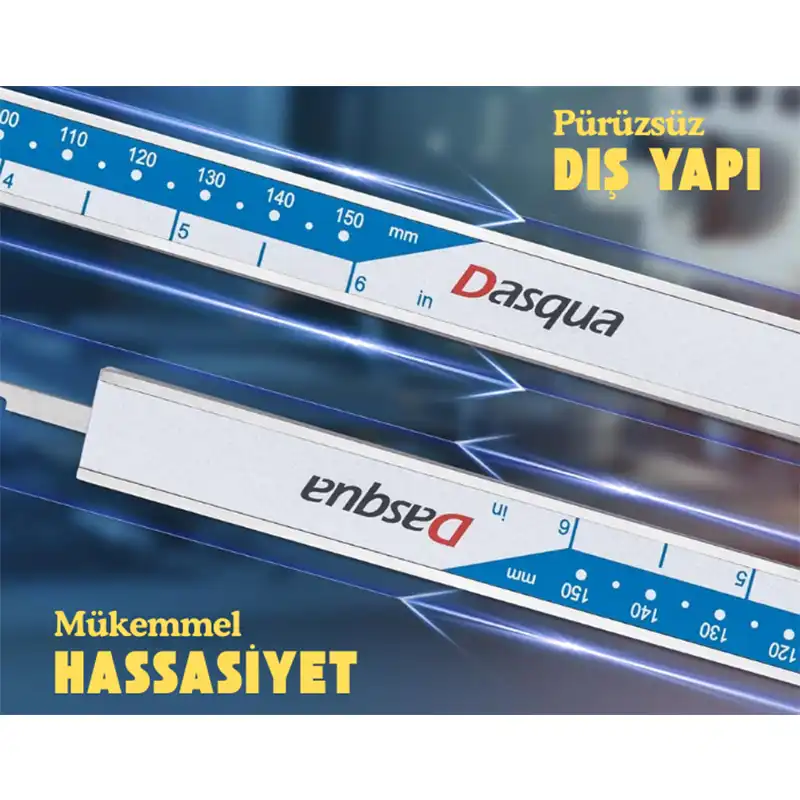

Measurement Range: 0 - 150 mm / 0 - 6 inch
Accuracy: 0.01 mm / 0.0005 inch
Lower Jaw Length: 40 mm
Upper Jaw Length: 19 mm
Display: Digital dial and numeric display
Inch and mm Measurement: Yes
Zeroing Function: Yes
On/Off Button: Yes
Protection Class: IP67
Power Source: Rechargeable lithium battery (1000 mAh)
Weight: 227 grams
