Notify me when its in stockThe biggest feature of this data logger is that you can get an automatic PDF example by connecting the device to the computer via the USB port without the need for additional device software.
To open the PDF format, Adobe Reader must be installed on your computer.
Through the device's computer interface program, you can review graphs and report outputs related to the data you have recorded.
You can also save this data you reviewed on the computer in Excel, Word, PDF, or TXT format.

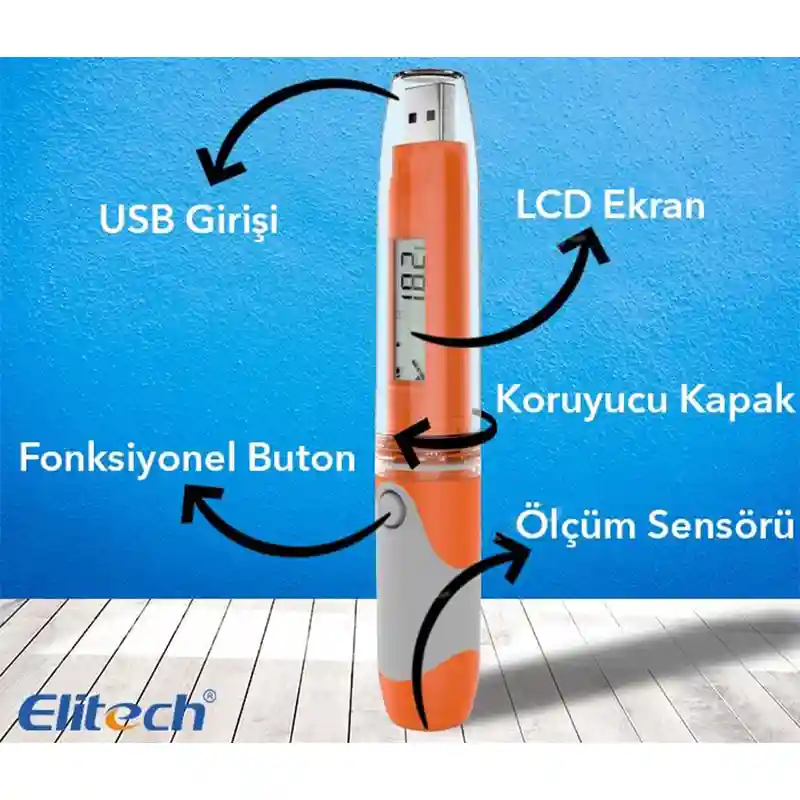

Information you can see from this data logger's screen includes status screen, maximum temperature indicator, minimum temperature indicator, maximum humidity indicator, minimum humidity indicator, temperature and humidity average, and record count.
The RC-51H digital data logger is frequently used in refrigerated trucks, frigofric trucks, and logistics transportation vehicles, as well as in places like food storage, pharmaceutical storage, and laboratories to monitor temperature and humidity records.
Visual alarms can be set for lower and upper limits on the RC-51H data logger.
After making the necessary settings in the device's application, you can start the recording process by pressing the setting button for 3-4 seconds.
The rEC on the device's screen indicates that the recording process has started, while Stop indicates the recording process has ended.
The section on the screen that reads "Log" shows the number of data the device has recorded.
With this data logger, you can record temperature and humidity up to 32,000 entries between the periods you set.
From the program, you can adjust the recording interval of the device from 10 seconds to 24 hours as desired.
If there is no operation within 10 seconds, the data logger will automatically shut down.
Pressing the button once will activate the currently off screen.
To make the device's settings and to obtain document records in different formats, you need to download the device's software to your computer by clicking the download button for the software below.
The RC-51H data logger can provide graphical reports. You can see an example of the graphical visual below.
When selecting the recording interval, the selectable recording intervals in the second section are 10, 20, 30, 40, 50 seconds. The desired value can be selected for hours and minutes.
Important Note:
The time zone in the data logger's analysis software, i.e., UTC setting, is defaulted to 00:00. According to Turkish standards, the time zone should be UTC +03:00.
While configuring the device's recording settings from the "Parameter" section in the software, be sure to adjust the time zone to UTC +03:00 according to Turkish standards and save it with the "Save Parameter" button.
If you do not change the UTC time zone, you will see the recording time incorrectly in both the PDF reports and the device's software.
How to set the UTC time zone is indicated in the visuals at the bottom of the page.
Temperature Measurement Range: -30 degrees ... +70 degrees
Temperature Accuracy: ±1 degree
Humidity Measurement Range: 10% ... 95% RH
Humidity Accuracy: ±5% RH
Memory Capacity: 32,000 entries
Alarm Feature: Yes (visual alarm only)
Maximum / Minimum Feature: Yes
Low Battery Indicator: Yes
Protection Class: IP67
Screen: LCD
Storage Temperature: -30 degrees ... +70 degrees
Dimensions: 131 x 24 mm
Weight: 19 grams
Power Source: ER14250 3.6 V battery
