Elitech Tlog 10EH Wired Temperature and Humidity Recorder, Precise

Tlog 10EH Wired Temperature and Humidity Recorder | Precise

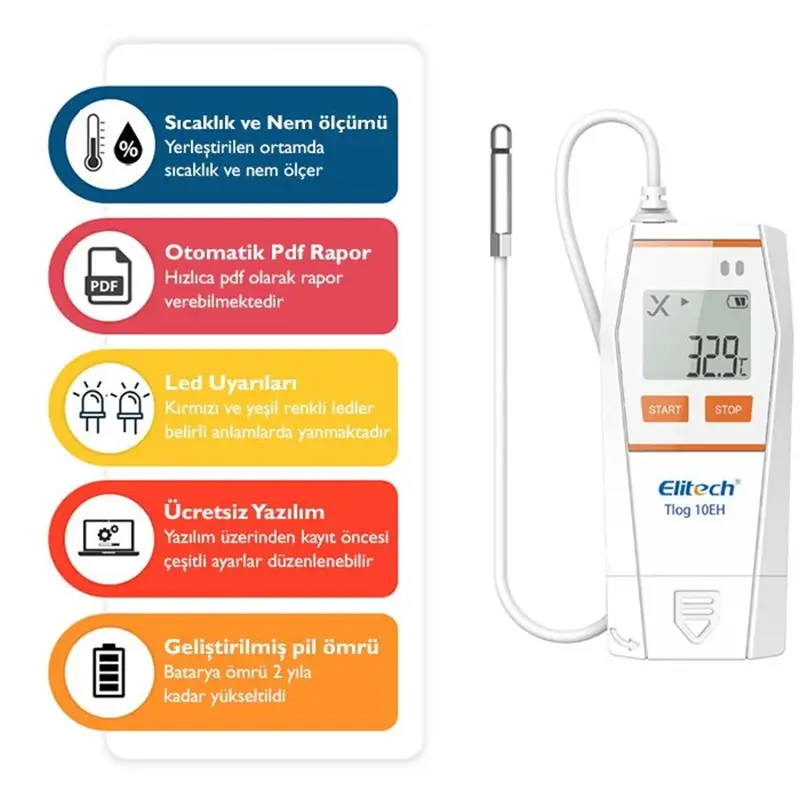

• The Elitech Tlog10EH datalogger device measures and records the temperature and humidity values only from the location at the end of its cable.

• The Elitech Tlog 10EH wired datalogger device has a quick feature to provide document reports as PDFs.

• It's quite easy to obtain results. The pre-set device is connected to a computer via USB. Results are reviewed by clicking the PDF report opened from the My Computer folder automatically.

• Various settings of the Elitech Tlog10EH datalogger device before recording can be made through its own program, which you can download for free by clicking the button below.

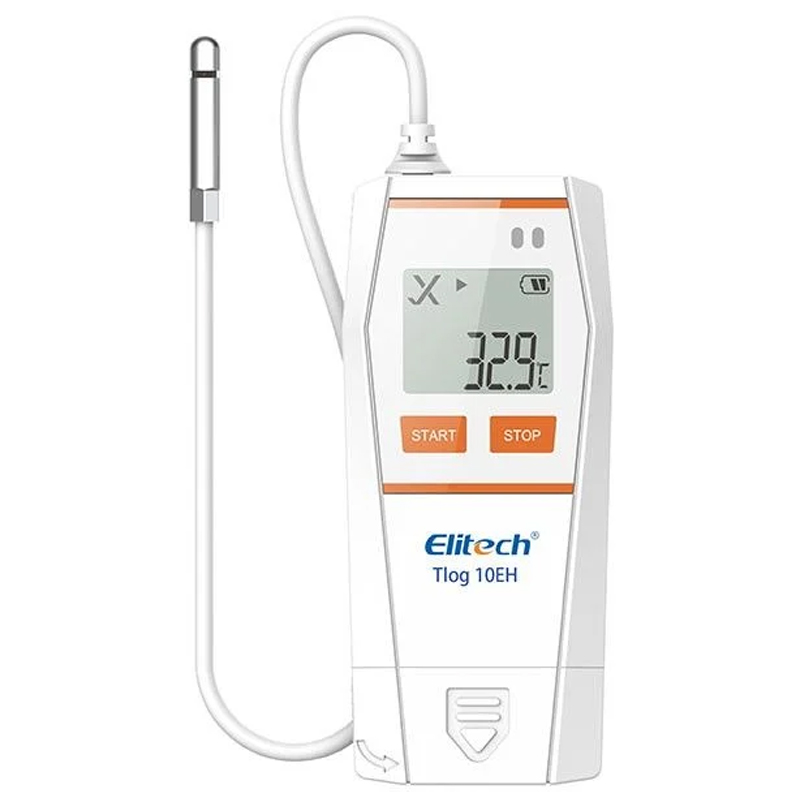

• The design of Tlog10EH temperature humidity recorders includes an LCD screen, two buttons, and a 120 cm long cable.

• In the Elitech Tlog 10EH series temperature and humidity recorder, the start action can be done by pressing a button or via PC software, while stopping the recordings can be done by pressing a button, via PC software, or automatically.

• You can view the device status, various parameters without connecting the device to a computer, and edit parameters and modes.

• The Elitech Tlog 10 EH wired temperature datalogger device has a remarkable precision of ±0.5°C. The humidity precision is 5%.

• The recording memory of the Elitech Tlog10EH temperature recording device has been increased to 32,000 units compared to other models. It records 16,000 temperature and 16,000 humidity records.

• In the Elitech Tlog10EH series, the battery and cell life have been renewed and can typically be used for 2 years.

• The red and green colors on the datalogger have specific meanings. For example, pressing the start button for 5 seconds will cause the red and green colors to flash 5 times, and recording will start, or pressing the stop button for 5 seconds will cause the colors to flash 5 times, and recording will stop. There are many such meanings for the lights.

• The buttons of the Elitech temperature recording device are made to be resistant to external factors.

TECHNICAL SPECIFICATIONS

1. Temperature Measurement Range: -40°C ... +85 degrees

2. Temperature Precision: ±0.5 degrees

3. Temperature Resolution: 0.1 degrees

4. Memory Capacity: 32,000 units

5. Adjustable Recording Intervals: Between 10 seconds and 24 hours

6. Alarm Feature: Alarm available, but alarm values can only be seen in the PDF document. 3 for high values and 2 for low values

7. °C/°F Unit Changeability: Available

8. Cable Length: 120 cm

9. Recording Mode: Stop when full___Cyclic recording

10. Protection Class: IP65

11. Display: LCD

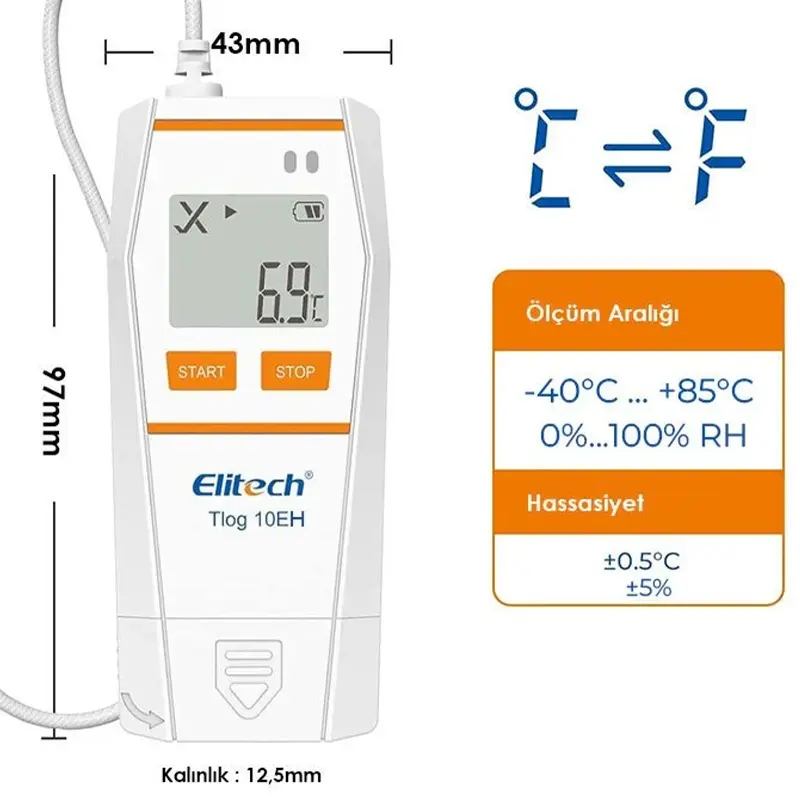

12. Dimensions: 97mm x 43mm X 12.5 mm

13. Power Source: 1 x CR2450 battery

14. Package Contents: Tlog10EH Datalogger, CR2450 battery (inside), Factory test certificate, User manual
