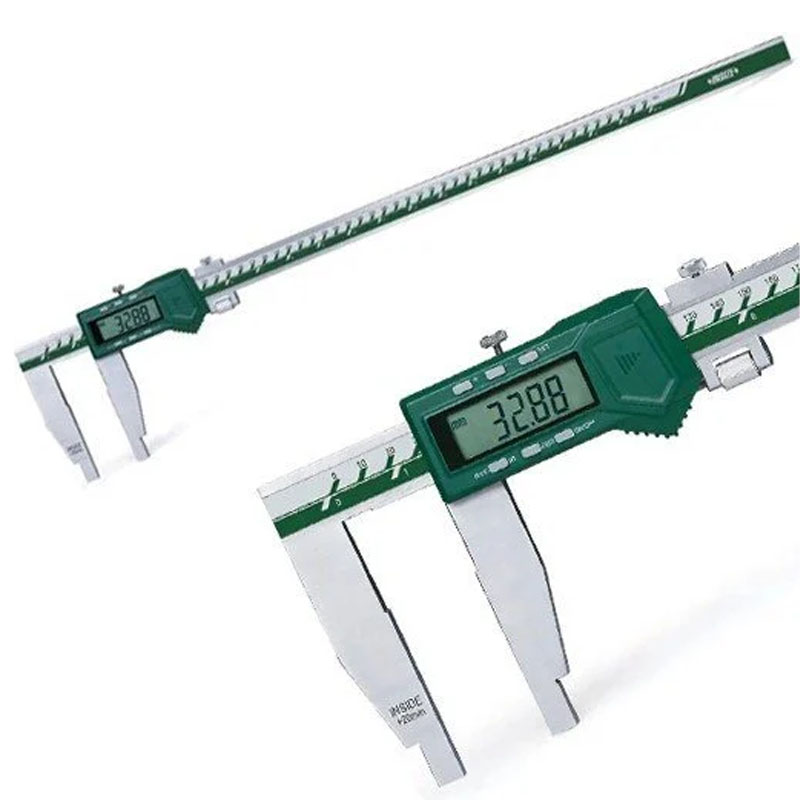

Insize 1106-501 Single Jaw Digital Caliper, 0-500 mm

Insize 1106-501 Single Jaw Digital Caliper 0–500mm

Insize 1106-501 is a professional digital caliper with a measuring range of 0 – 500 mm and an accuracy of 0.01 mm, featuring a digital display and data output.
With its durable stainless steel body, ergonomic design, and high accuracy, it is a reliable solution for industrial measurement needs.

Technical Specifications:

• Measuring Range: 0 – 500 mm / 0 – 20 inch

• Accuracy: 0.01 mm / 0.0005 inch

• Repeatability: 0.05 mm

• Lower Jaw Length: 100 mm

• Fixed Jaw Length: 123 mm

• Display: Large LCD display

• Body: Stainless steel

• Power Supply: 1 × CR2032 battery

Functions:

• mm/inch conversion for dual unit measurements

• ZERO button for reset function

• ABS (absolute measurement) mode

• ON/OFF buttons for manual operation

• Locking screw for measurement fixing and friction adjustment

• Auto power-on – activates when the slider is moved

• Data output port – for data transfer (interface cable sold separately)

Applications:

• External diameter measurements

• Workshops, production lines, and quality control units

• Precise dimension inspection of mechanical parts

Insize 1106-501 digital caliper is a high-performance and durable measurement tool, ideal for measuring large parts accurately and quickly.
