İnsize 1136-501 Double Jaw Digital Caliper 0-500 mm
Product Code : 1136-501
Free Shipping
%0
33,040
TL
33,040
TL
27,533
TL + VAT
Out Of Stock
Notify me when its in stock
Payment Options

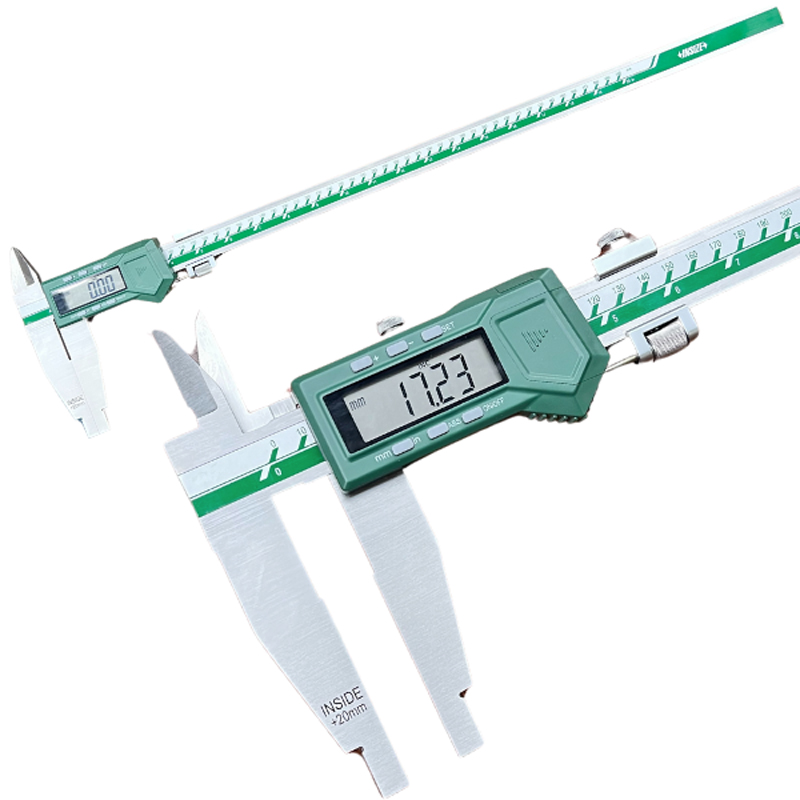

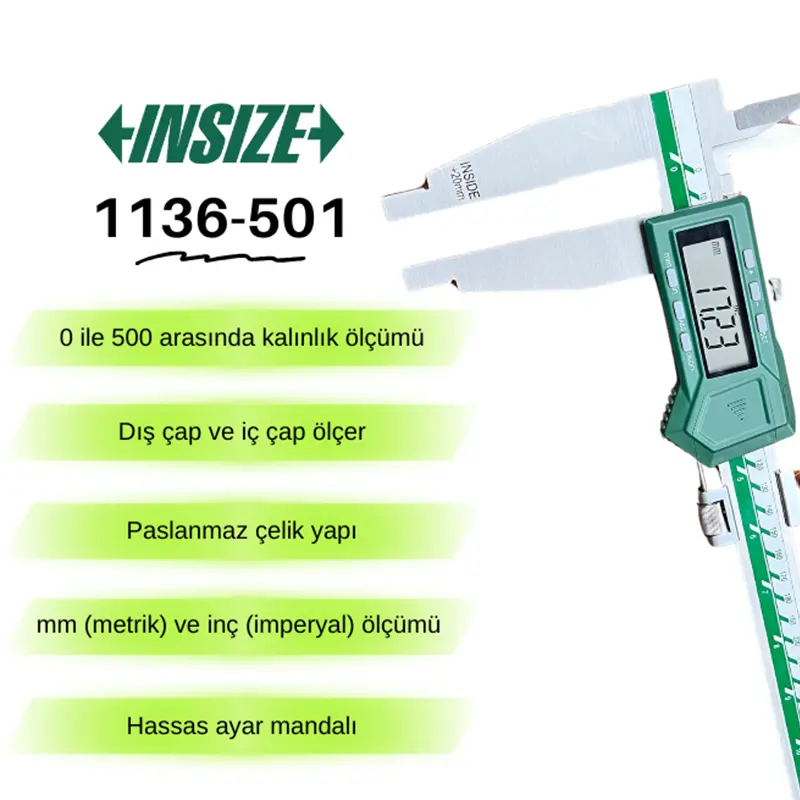

İnsize 1136-501 Double Jaw Digital Caliper 0-500mm
- The İnsize 1136-501 digital caliper is a professional measuring instrument offering high accuracy and repeatability, capable of measuring with 0.01 mm (metric) and 0.0005 inch (imperial) precision. It ensures reliable measurements in production and quality control processes.
- User-friendly keypad includes functions for on/off, mm/inch unit conversion, ABS (absolute) measurement mode, and zeroing. This provides flexible usage for the user. The ability to measure both metric and inch units on the same device provides an advantage in studies complying with local and international standards.
- CR2032 lithium battery powered system ensures energy efficiency. The automatic shut-off feature saves power, while the device can be reactivated with a slight movement, enabling fast and uninterrupted operation.
- The high-quality stainless steel body ensures the device maintains its durability even under harsh industrial conditions. Its long jaws allow precise measurements on large-sized workpieces, making the device suitable for a wide range of applications.

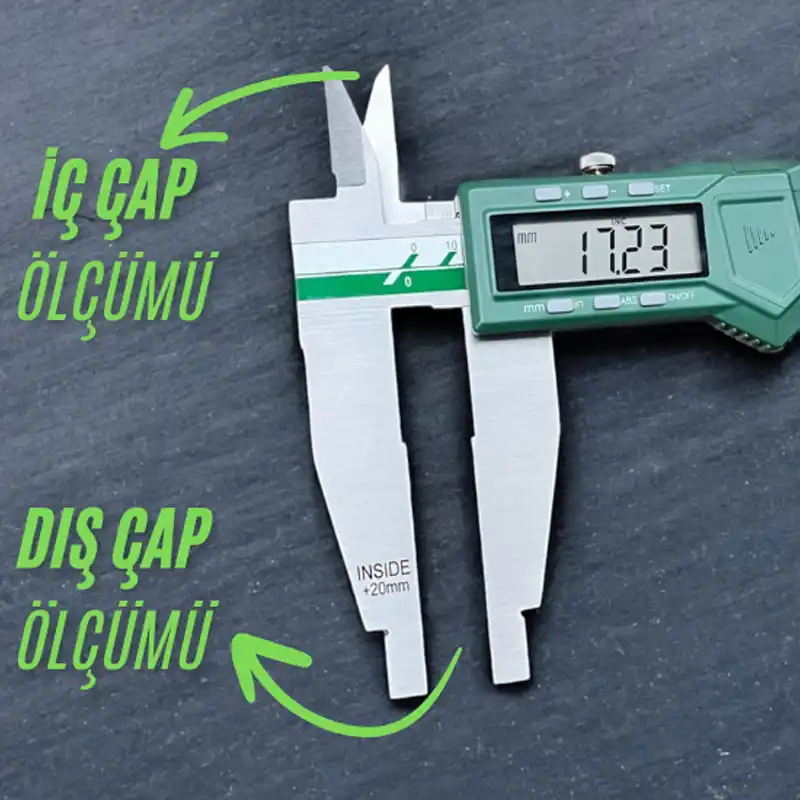

- The high-contrast LCD screen allows for quick, clear, and accurate reading of measurement values. Thanks to its versatile measurement capability, internal and external diameter measurements can be easily performed.

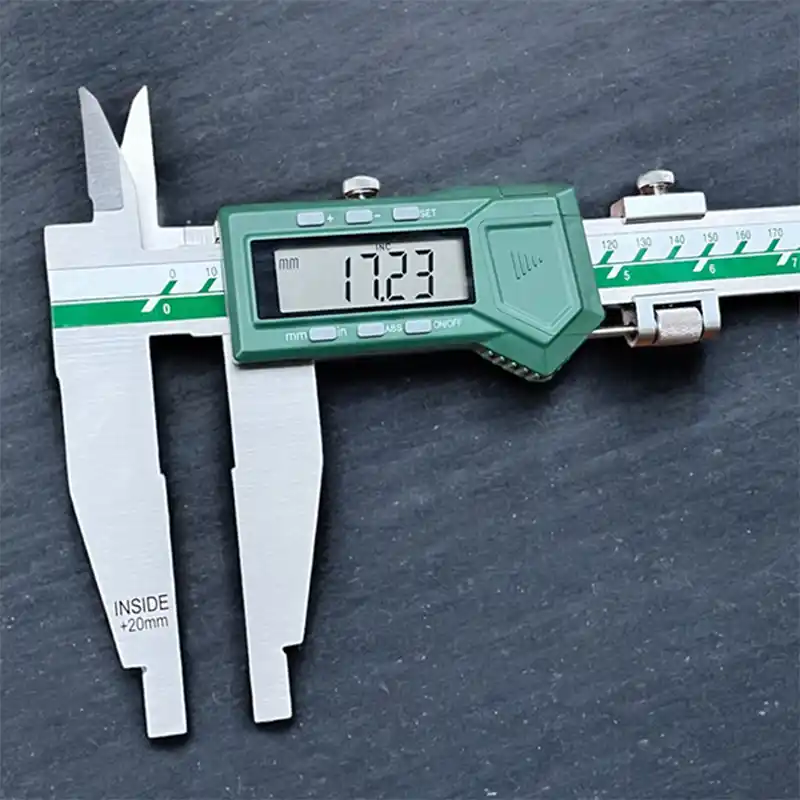

- ABS measurement system prevents dirt on the scale surface from affecting measurement results. Additionally, the "Inside +20 mm" notation on the external diameter measuring jaw indicates that 20 mm should be added to the measured value in internal diameter measurements. This feature ensures accurate and precise internal diameter measurements.
Technical Specifications

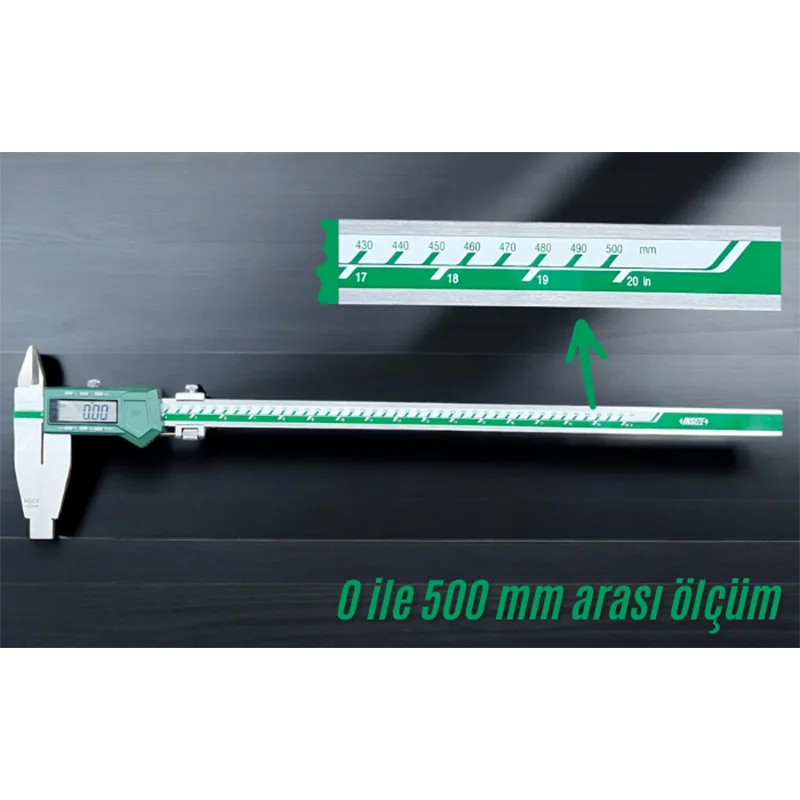

Measurement Range: 0-500 mm / 0-20 inch
Accuracy: 0.01 mm / 0.0005 inch
Repeatability: 0.05 mm
Lower Jaw Length: 100 mm
Upper Jaw Length: 45 mm
Display: LCD
Inch and mm Measurement: Available
Zeroing Feature: Available
On/Off Button: Available
Power Source: 1 piece CR2032 battery
