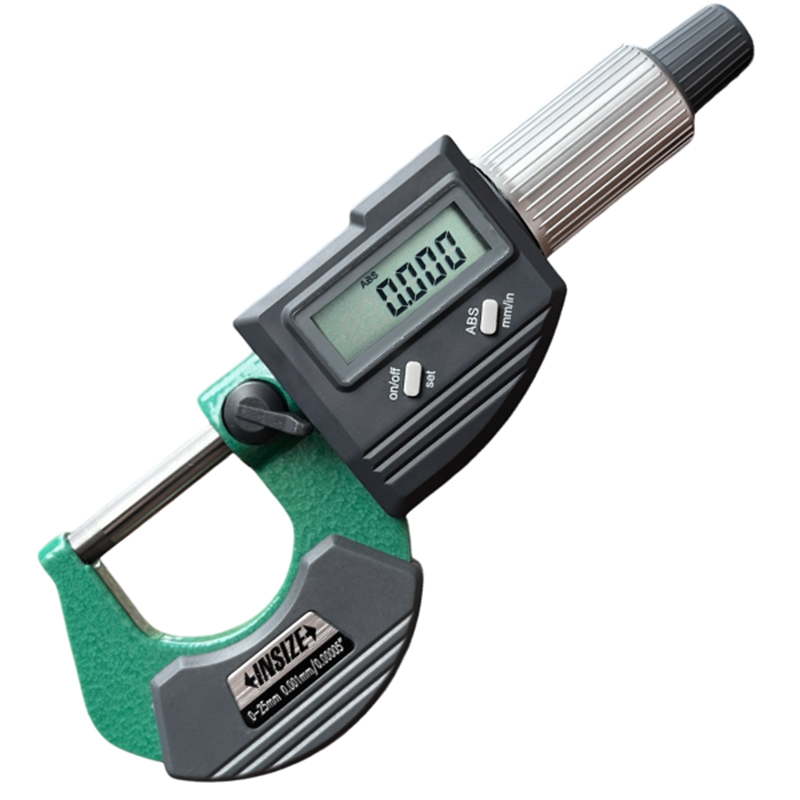

Notify me when its in stockThe INSIZE 3109-25A digital micrometer is a device capable of high-precision thickness measurement with a measuring range of 0-25 mm and an accuracy of 0.001 mm. This feature makes it an excellent solution for engineering applications requiring micron-level measurement precision.
One of the most important features of the device is that the micrometer has an ABS function. The ABS feature ensures that the device continuously maintains a reference zero point (absolute zero). This means the device does not lose its zero point even when turned off and on again.
The digital micrometer features a large and high-quality LCD screen with a digit height of 7 mm to allow you to clearly view your measurements.
The Insize 3109-25A digital micrometer can perform measurements in both inch and millimeter units.
The cylindrical accessory included in the box is generally designed for measuring pipes, cylindrical parts, or surfaces with complex geometries. Standard flat tips may not provide full contact on round surfaces. Cylindrical tips fit better on such surfaces, resulting in more accurate measurements.
The locking mechanism on the device allows secure fixing of measurements, ensuring accuracy and providing safe usage for the operator.
With the mm/in button on the digital micrometer, you can switch between millimeter and inch measurement units.

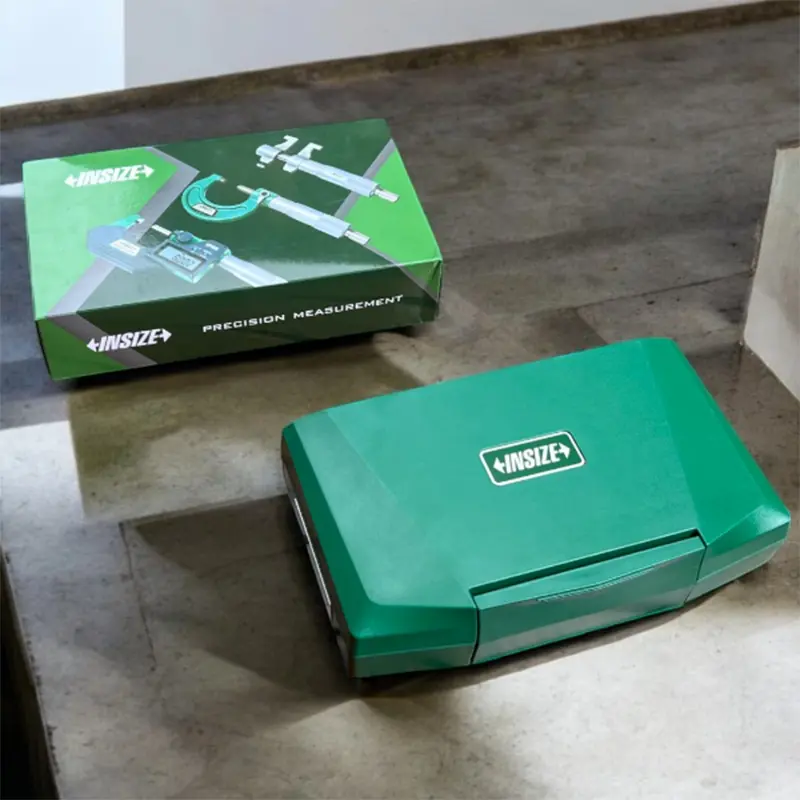

The box contents include: 1 Insize 3109-25A micrometer device, a ball, 1 CR2032 battery, 1 key to open the battery cover, 1 user manual, and 1 manufacturer test certificate.
Measuring Range: 0-25 mm / 0-1''
Accuracy: 0.001 mm / 0.00005''
Display: LCD
Digit Height: 7 mm
Repeatability: 0.001
Inch and mm Measurement: Yes
Reset: Yes
On/Off Button: Yes
Power Source: 1 x CR2032 Battery
