The Insize ISM-PM200SA digital microscope connects to a computer via USB port and is monitored through the computer.
The software allows you to take photos and perform measurements on the observed object on the screen.
Calibration is done before each measurement according to the sample to be measured.
Two different calibration scales come in the box for calibration purposes. The glass scale is mainly used for calibrating measurements of highly magnified objects. The white plastic scale is used for calibrating larger objects compared to the glass scale.
There are two different focus support rings for 80X/150X and 60X/200X magnifications.

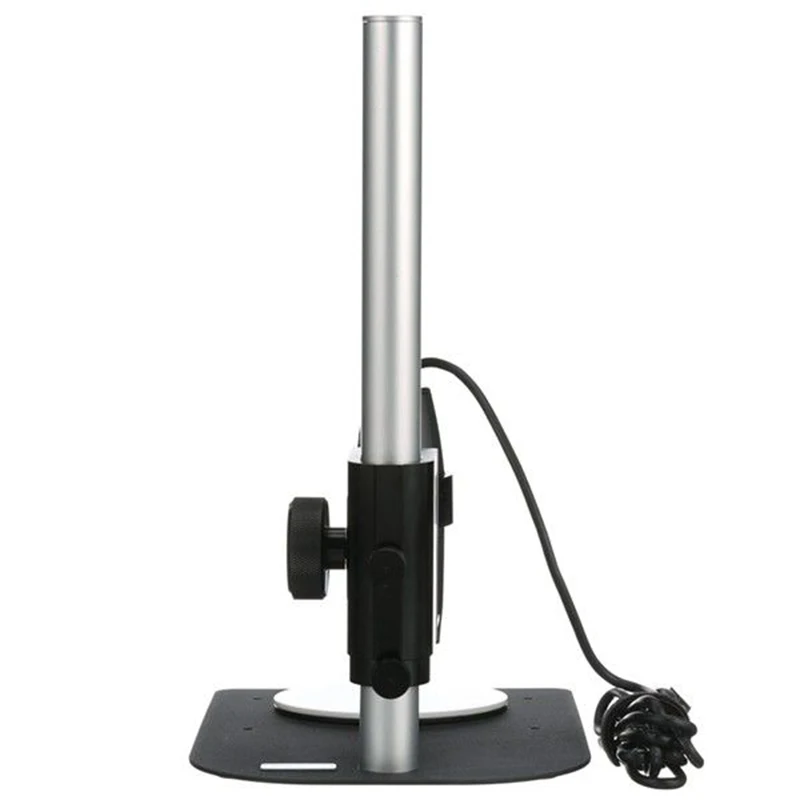

The digital camera is placed into the stand’s holder for use. The part placed on the stand can move up and down.
After adjusting the stand’s vertical position, focus adjustment is made using the adjustable magnification.
To see the object more clearly, a strong LED light turns on once the microscope is powered on.
The ISM-PRO software is the PC software for the ISM-PM200SA digital microscope. It is included on a USB drive shipped with the microscope.
When you purchase the microscope, the following items are included in the box: Digital microscope, Stand, Black and white plate, Focus support ring for 80X/150X, Focus support ring for 60X/200X, Calibration scale (0.1 mm), Calibration scale (1 mm), ISM-PRO software USB.

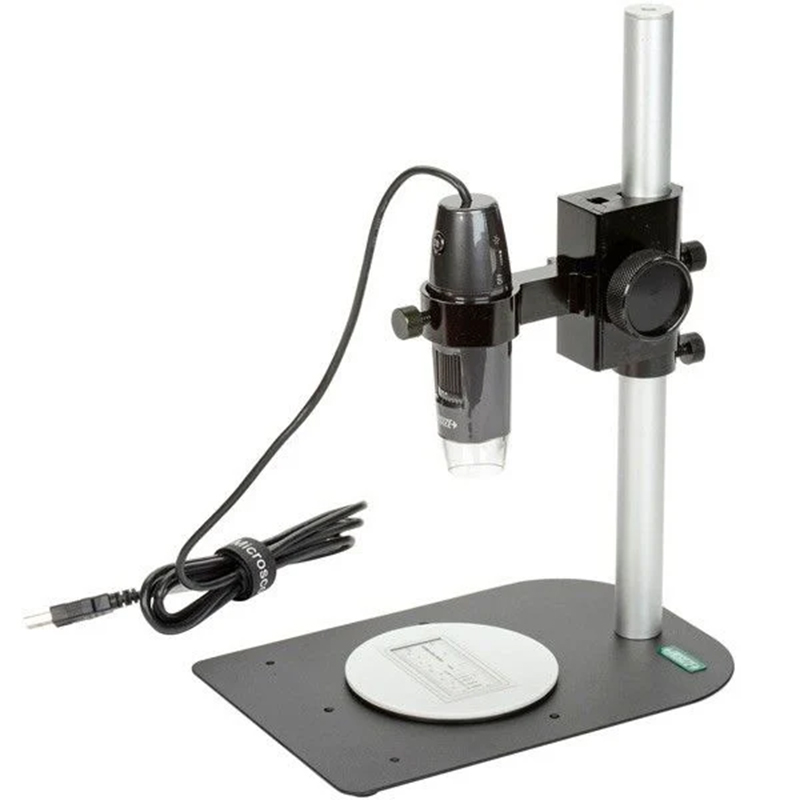

The digital camera of the ISM-PM200SA is used by placing it into the stand’s holder, which can move up and down on the stand.
The ISM-PM200SA digital microscope connects and operates via USB port. Afterward, the ISM-PRO software is launched to perform observations and measurements on the target object.
