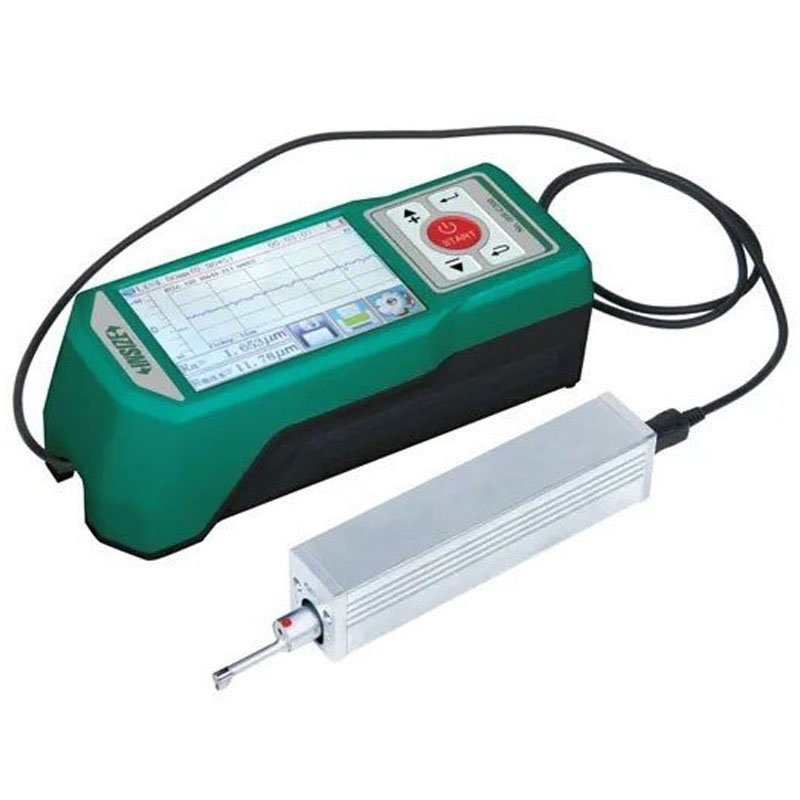

İnsize ISR-C300 Surface Roughness Tester

İnsize ISR-C300 Surface Roughness Tester

İnsize ISR-C300 is an advanced surface roughness measurement device that stands out with its portable structure, high-resolution measurement capabilities, and touch screen support.
With a resolution of 0.001 µm, a measurement force of 4 mN, and a diamond probe, it provides reliable and precise results in industrial surface quality controls.

Key Features:

• Measurement Resolution: 0.001 µm (Ra)

• Probe Type: Induction type diamond tip (5 µm radius, 90° angle)

• Measurement Force: 4 mN

• Compliance: Compliant with ISO, DIN, ANSI, JIS standards

• Touch Screen Support: Compatible with Android phones or computers via Bluetooth connection

• Connection: USB and Bluetooth (data transfer and printer connection)

• X Plane Range: 17.5 mm

• Z Plane Range: ±160 µm

• Cut-off Lengths: 0.25 / 0.8 / 2.5 mm

• Number of Cut-offs: 1–5

• Scanning Speeds: 0.135 mm/s, 0.5 mm/s, 1 mm/s

• Memory: Storage capacity for 100 measurement results and waveforms

• Automatic shutdown function for battery saving

Supported Roughness Parameters (22 types):

Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax

Box Contents:

• ISR-C300 Main Unit

• Standard Probe

• Calibration Standard and Support

• Short and Long Connection Cables

• Magnetic Base Adapter

• Adjustable Stand

• Touch Screen Stylus

• Software CD and USB Cable

• AC/DC Adapter

Technical Information:

• Dimensions: 158 x 64 x 52 mm

• Weight: 400 g

• Power: Built-in rechargeable lithium battery (over 500 hours of operation time)
