İnsize ISR-C300 Surface Roughness Tester

Product Code : ISR-C300
Free Shipping
%0
136,294 TL
136,294 TL
113,579 TL + VAT

Out Of Stock

Notify me when its in stock
  • Touch Screen Stylus
  • Calibration Standard and Support
  • Short and Long Connection Cables
  • Adjustable Stand
ProductFeatures
Depth(cm)
6.4
Height (cm)
5.2
Width (cm)
15.8
Weight
0.4

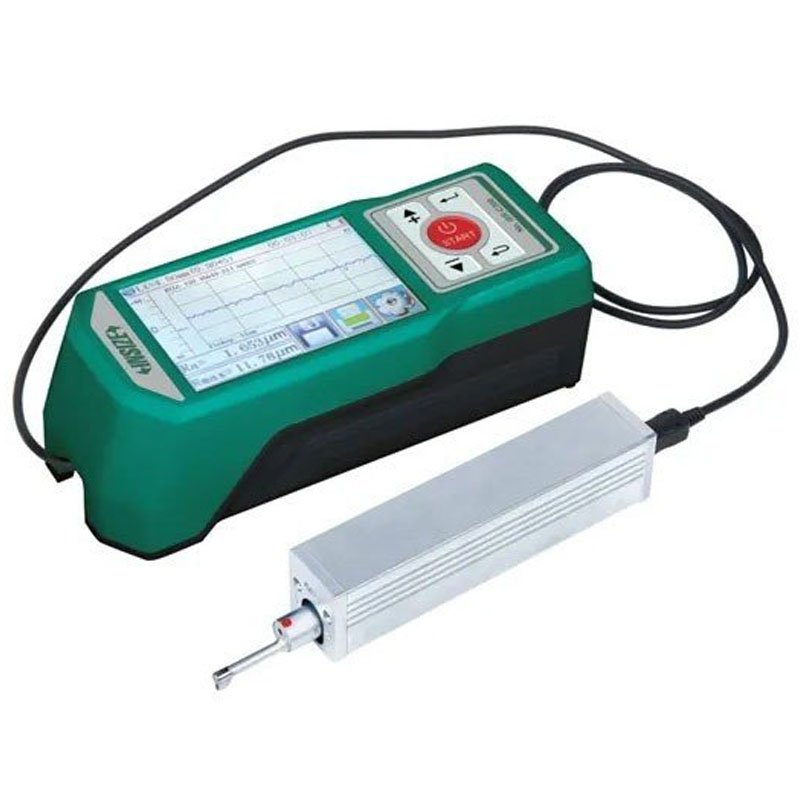

İnsize ISR-C300 Surface Roughness Tester

İnsize ISR-C300 is an advanced surface roughness measurement device that stands out with its portable structure, high-resolution measurement capabilities, and touch screen support.
With a resolution of 0.001 µm, a measurement force of 4 mN, and a diamond probe, it provides reliable and precise results in industrial surface quality controls.

Key Features:

  • Measurement Resolution: 0.001 µm (Ra)

  • Probe Type: Induction type diamond tip (5 µm radius, 90° angle)

  • Measurement Force: 4 mN

  • Compliance: Compliant with ISO, DIN, ANSI, JIS standards

  • Touch Screen Support: Compatible with Android phones or computers via Bluetooth connection

  • Connection: USB and Bluetooth (data transfer and printer connection)

Measurement and Memory:

  • X Plane Range: 17.5 mm

  • Z Plane Range: ±160 µm

  • Cut-off Lengths: 0.25 / 0.8 / 2.5 mm

  • Number of Cut-offs: 1–5

  • Scanning Speeds: 0.135 mm/s, 0.5 mm/s, 1 mm/s

  • Memory: Storage capacity for 100 measurement results and waveforms

  • Automatic shutdown function for battery saving

Supported Roughness Parameters (22 types):

Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax

Box Contents:

  • ISR-C300 Main Unit

  • Standard Probe

  • Calibration Standard and Support

  • Short and Long Connection Cables

  • Magnetic Base Adapter

  • Adjustable Stand

  • Touch Screen Stylus

  • Software CD and USB Cable

  • AC/DC Adapter

Technical Information:

  • Dimensions: 158 x 64 x 52 mm

  • Weight: 400 g

  • Power: Built-in rechargeable lithium battery (over 500 hours of operation time)
