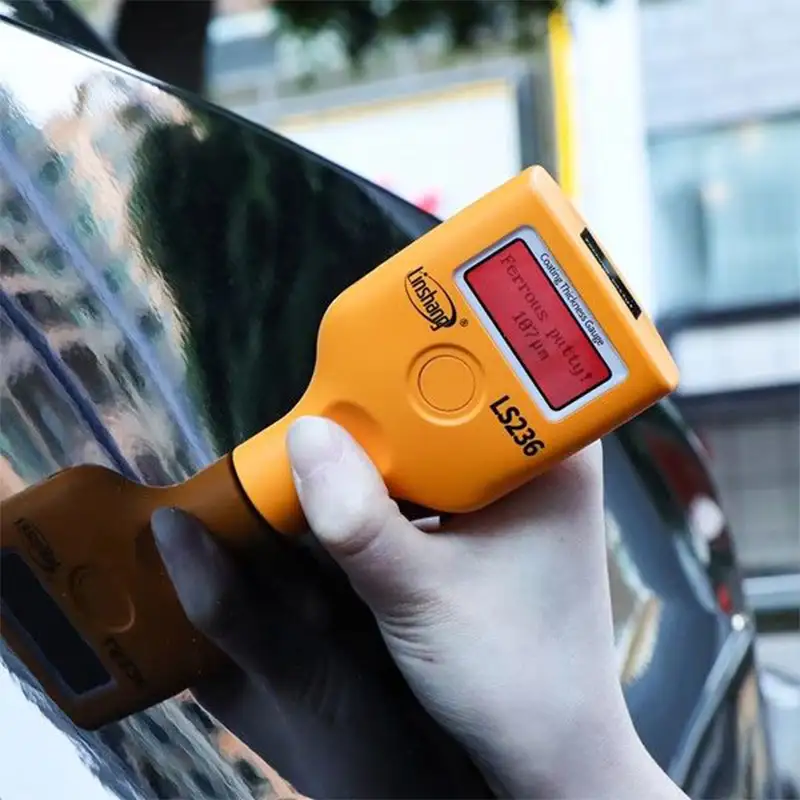

Notify me when its in stockLinshang LS236 is a digital measurement device developed especially for professional paint thickness measurements in the automotive industry, offering fast and precise results.
It provides comprehensive analysis with automatic recognition of iron, aluminum, and plastic substrates.
Advanced Automatic Detection: Automatically detects iron, aluminum, and plastic substrates. Recognizes galvanized iron bodies as "FeZn" and the screen lights up green.
Putty Detection: Alerts with sound and light for areas repaired with metal putty; the screen lights red.
Dual Screen Design: Provides easy reading from every angle thanks to front and top screens.
High Measurement Speed: Performs rapid measurements with a 0.5-second response time.
Bluetooth and Mobile Compatibility: Can be paired with a mobile app (iOS 12.0 / Android 6.0 and above) for data transfer and test report generation.
Turkish Menu: Provides user-friendly operation with a Turkish interface.
Advanced Probe Technology: Offers durable and stable measurement performance with a wear-resistant ruby probe and digital signal processing technology.
Triple Backlight: Guides the user by supporting measurement results with color (e.g., original, repaired, or puttied parts).
LS236 paint thickness gauge
Silicone protective case
Hand strap
Fabric carrying pouch
User manual
Iron and aluminum zero calibration plates
Plastic calibration piece
Technical Specifications:
Measurement Range: 0.0 – 3500 μm
Accuracy: ≤ ±(3% reading + 2 μm)
Resolution: 0.1 μm (0 – 99.9 μm), 1 μm (100 – 999 μm), 0.01 mm (1.00 – 2.00 mm)
Measurement Units: µm, mils
Probe Type: Ruby
Measurement Memory: 1500 readings
Display: Backlit LCD, dual screen
Response Time: 0.5 seconds
Operating Temperature: -40°C to 50°C
Power Supply: 2 x AAA 1.5V batteries
Weight: 80 grams
Dimensions: 100 x 60 x 24 mm
