Mitutoyo 500-184-30 Digital Caliper | Round Depth Rod
Mitutoyo 500-184-30 digital caliper features a 0-150 mm measurement range and stands out with a Ø1.9 mm diameter circular depth measurement rod, offering high precision.
This model easily performs inner diameter, outer diameter, and depth measurements, providing long-lasting and reliable use thanks to advanced AOS (Advanced Onsite Sensor) technology, which protects against dust, water, and oil interference.
GENERAL FEATURES

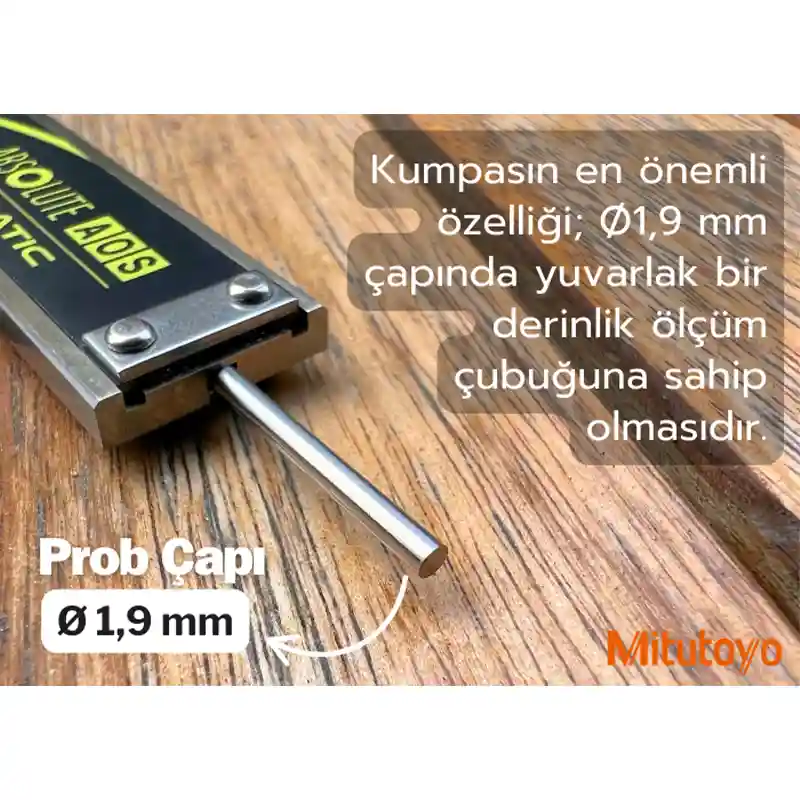

- Depth rod feature: Equipped with a Ø1.9 mm diameter circular depth measurement rod.
- AOS technology: Equipped with an advanced onsite sensor (AOS) inductive encoder.
- Versatile use: Measures inner diameter, outer diameter, and depth.
- Resistance to contamination: Water, oil, and other contaminants on the scale surface do not affect measurement accuracy.
- High quality: Made in Japan with premium components.
- ABS measurement system: Can take measurements immediately without zeroing when turned on.
- Display: Measurements can be viewed digitally on a single-line LCD screen.
- Durability: Stainless steel body.
- Energy saving: Automatic power-off when not in use.
- Measurement unit: Measures only in millimeters (mm).
- Carrying case: Comes with a shock-resistant plastic case.
- Certificate: Includes original certification from Mitutoyo.
TECHNICAL SPECIFICATIONS
- Measurement range: 0 - 150 mm
- Accuracy: 0.01 mm
- Display: LCD
- Depth rod diameter: Ø1.9 mm
- Repeatability: 0.01 mm
- Inch and mm measurement: No
- Zero setting: Yes
- On/Off button: Yes
- Power source: 1 x SR44 battery
- Weight: 168 grams
