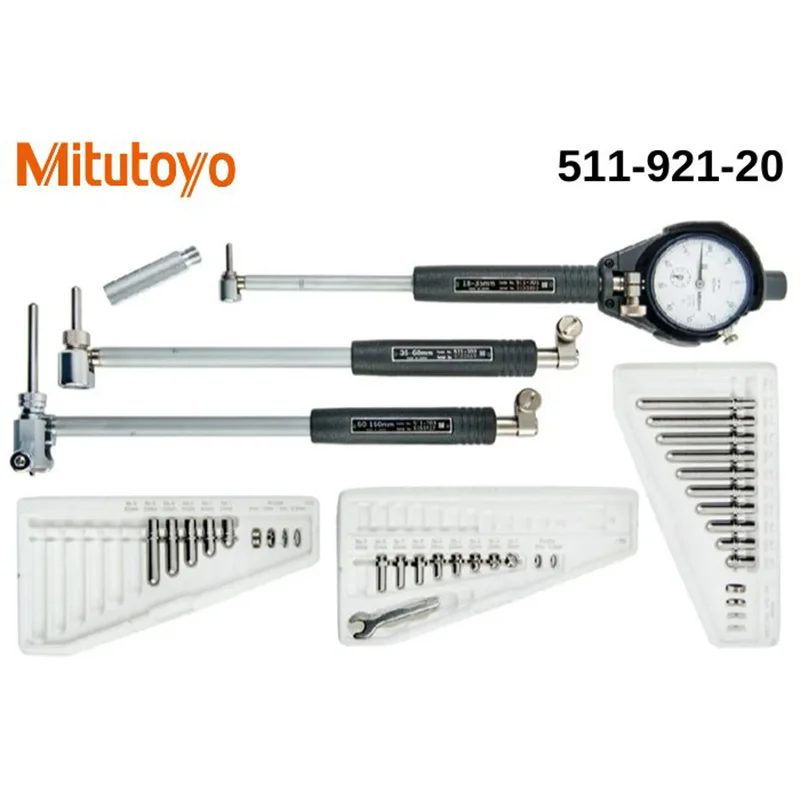

Notify me when its in stockFeatures of Mitutoyo 511-921-20 Cylinder Comparator Set
Provides ±2 µm accuracy for internal diameter measurements.
Offers the ability to measure different hole diameters with the same device thanks to interchangeable anvils.
Optional extension rod enables easy access to deep points for measuring deep holes.
Durable carbide-tipped contact points ensure long-lasting use.
Dial indicator model 2046AB is protected by a protective cover.
Pendulum guide structure allows sliding measurement.
Two-point contact system detects geometric errors such as roundness and taper.
8 mm diameter body compatible with various equipment.
Newly designed large gripping surface reduces the effect of hand heat on the device, increasing measurement accuracy.
Widely used in industries such as automotive, mold making, machinery manufacturing, and turning.
Indicator and parts come in a durable protective case.
Long-lasting and suitable for safe use in industrial environments.

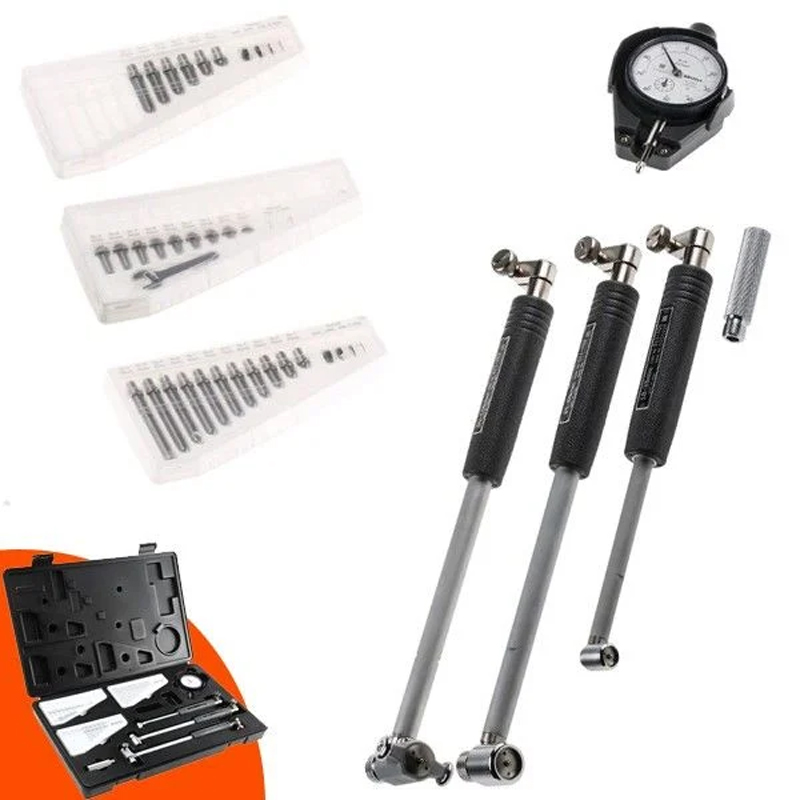

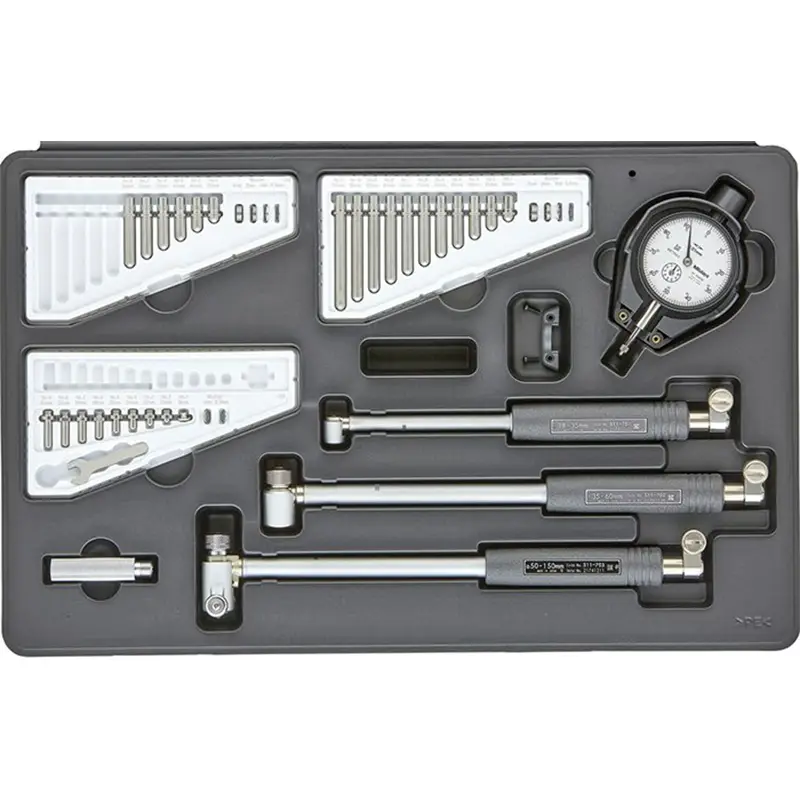

Package Contents
1 pcs 2046AB comparator dial
1 pcs comparator dial cover
1 pcs 18-35 mm measuring arm
1 pcs 35-60 mm measuring arm
1 pcs 60-150 mm measuring arm
1 pcs extension rod
1 pcs set of wrenches
Measurement heads in various sizes:
18 mm, 20 mm, 22 mm, 24 mm, 26 mm, 28 mm, 30 mm, 32 mm, 34 mm, 35 mm,
40 mm, 45 mm, 50 mm (2 pcs), 55 mm (2 pcs), 60 mm (2 pcs),
65 mm, 70 mm, 75 mm, 80 mm, 85 mm, 90 mm, 95 mm, 100 mm
Technical Specifications
Measurement Range: 18 mm - 150 mm
Unit: mm only
Accuracy: 2 µm
Repeatability: 0.5 µm
Display: Analog
Measurement Type: Mechanical
Comparator: Model 2046AB comparator dial
