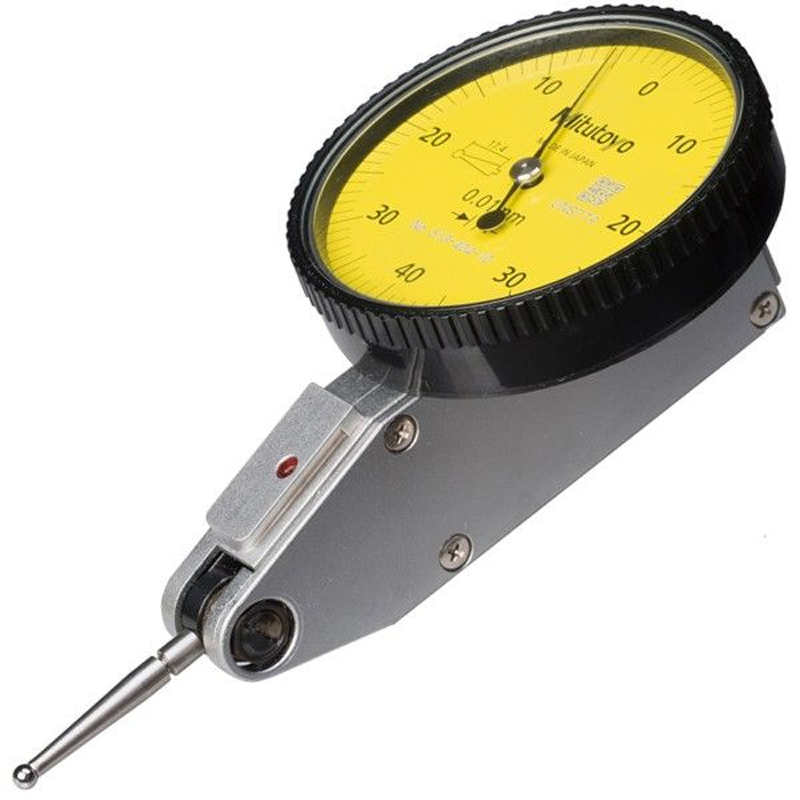

Mitutoyo 513-404-10E Dial Test Indicator

Mitutoyo 513-404-10E Dial Test Indicator

• It is a test indicator designed for high-precision measurements.

• Used in industrial applications such as metalworking, machine assembly, and quality control.

• Suitable for alignment operations on machine tools due to its anti-magnetic structure.

• Provides access to surfaces unreachable by traditional dial indicators.

• Automatically adapts to the measurement direction upon contact.

• Offers low friction and precise operation thanks to its jeweled bearing movement mechanism.

• Can be used for both alignment and measurement operations.

• Has a scratch-resistant surface.

• Provides high rigidity and durability due to its strong frame.

• The pointer and carbide contact point are almost unaffected by magnetic environments.

• Provides high visibility with its large dial face.

• Offers water and oil resistance with O-ring sealing method.

• Has a 2 mm long carbide contact tip.

• Measuring range: 0.8 mm

• Accuracy: 0.01 mm

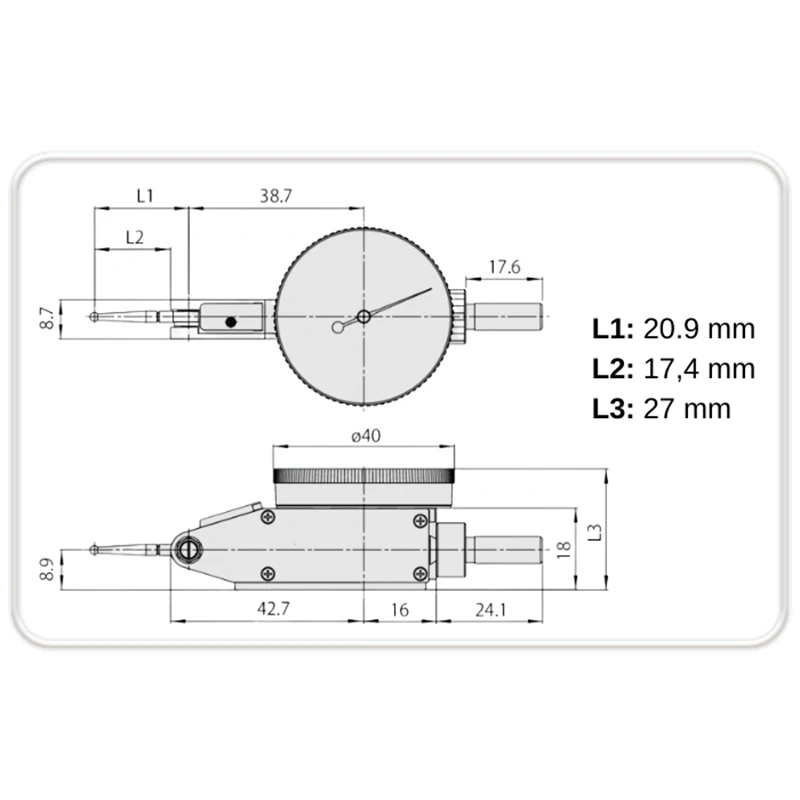

• Probe length: 17.2 mm

• Dial reading type: 0-40-0

• Measuring force: 0.01 – 0.3 N

• Contact point thread: M1.7 x 0.35

• Weight: 45 grams

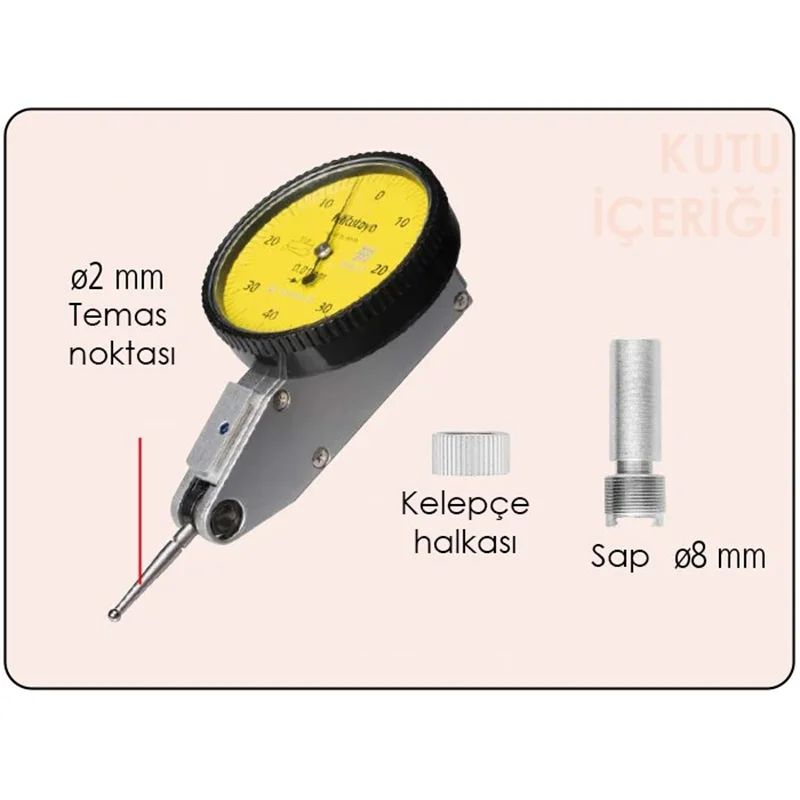

• Box contents: Device, 1 knurled ring, 1 handle, plastic box, factory test certificate, user manual
