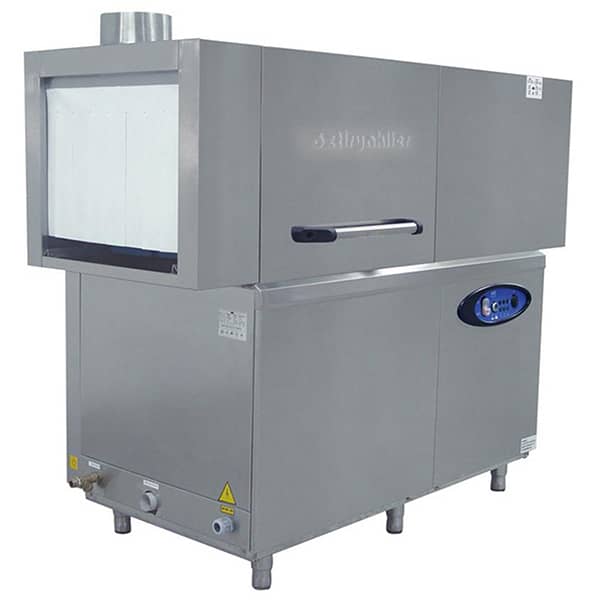

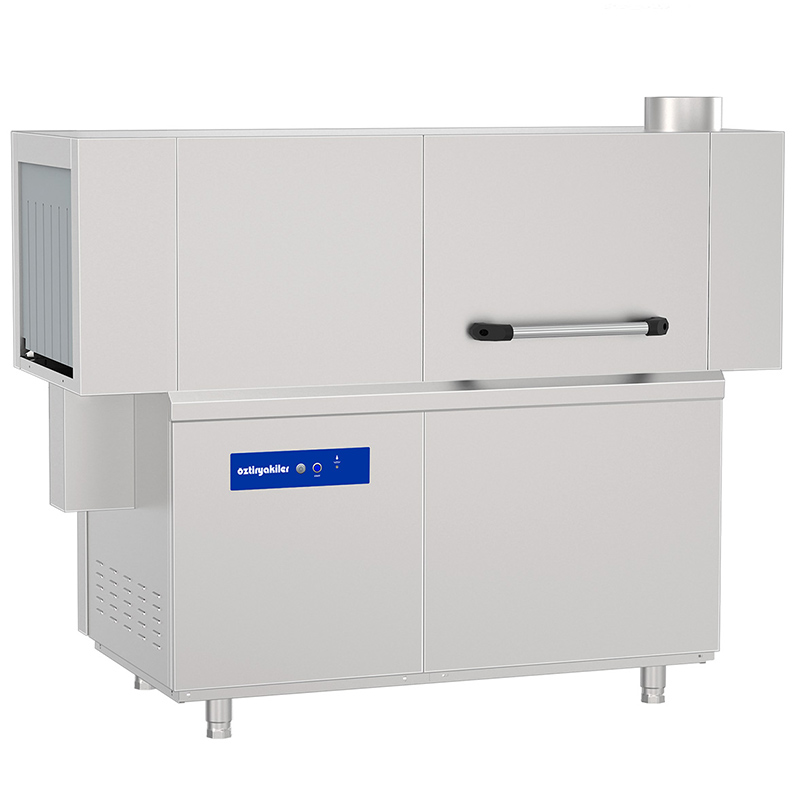

Öztiryakiler Conveyor Dishwasher, Right Entry, Without Dryer, Obk 1500

Öztiryakiler Conveyor Dishwasher, Without Dryer, OBK 1500 Right Entry Features

• Conveyor type professional dishwasher without dryer

• Right entry usage compatible with area

• Stainless steel body, boiler, and hygienic washing tank

• Rounded corner structure for easy cleaning and hygiene

• High washing capacity: 100 racks/hour (1650 plates/hour)

• Only 3 L water consumption per wash cycle

• User-friendly digital control panel

• Filling and heating boiler and tanks with one button

• Thermostat-controlled washing and rinsing temperature

• Energy, detergent, and water consumption savings

• IPX5 water protection

• Safe usage with backflow preventing valve system

Technical Specifications

• Model: OBK 1500 Right Entry (Without Dryer)

• Product Code: 076R.00100.BD

• Type: Electric

• Voltage: 400V – 3 NPE

• Electric Power: 38 kW

• Frequency: 50 Hz

• Protection Class: IPX5

• Capacity: 1650 Plates/hour

• Rack Size: 500 x 500 mm

• Washing Water Temperature: 55–60 °C

• Rinse Water Temperature: 80–85 °C

• Tank Volume: 90 L

• Boiler Volume: 18 L

• Boiler Heater Power: 27 kW

• Tank Heater Power: 9 kW

• Washing Pump Power: 1.5 kW

• Washing Pump Flow Rate: 659 L/min

• Rinse Pump Power: 0.37 kW

• Rinse Pump Flow Rate: 18 L/min

• Drying Fan Power: Not available

• Maximum Noise: 80 dBA

Connection Information

• Cold Water Inlet Diameter: 3/4"

• Cold Water Pressure: 2–4 bar

• Cold Water Hardness: 0–10 French Hardness

• Hot Water Pressure: 2–4 bar

• Hot Water Hardness: 0–10 French Hardness

• Drainage Inlet Diameter: Ø 50 mm

Dimensions and Weight

• Width x Length x Height: 850 × 1750 × 1500 mm

• Net Weight: 220 kg

• Gross Weight: 220 kg

• Volume: 2.1 m³

Origin and Brand

• Product Origin: Turkey

• Brand: Öztiryakiler
