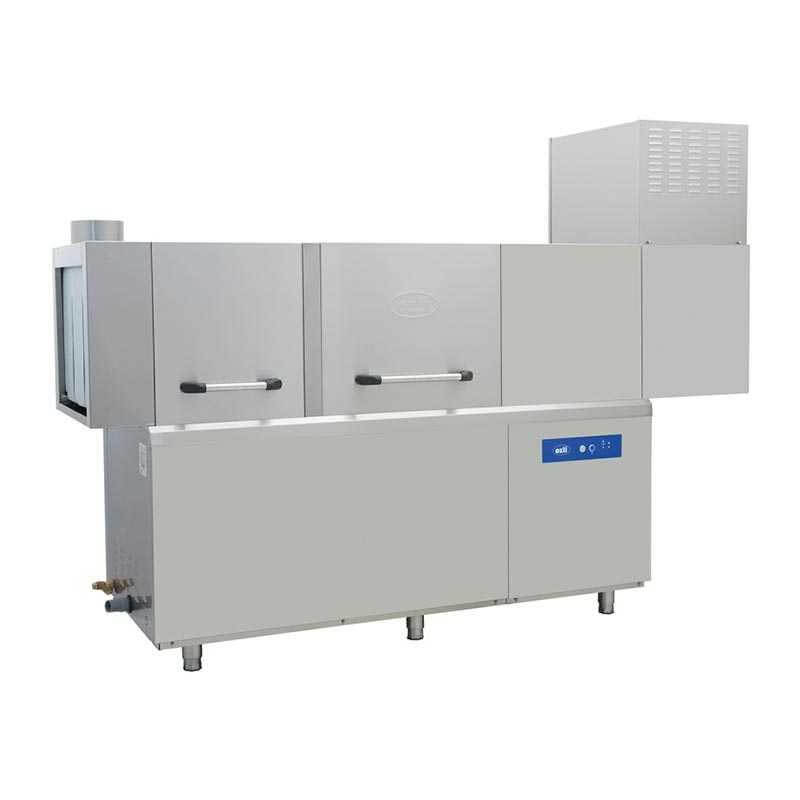

Öztiryakiler Conveyor Dishwashers, Left Entry, with Dryer, Obk 3000

Öztiryakiler Conveyor Dishwashers, Left Entry, with Dryer, Obk 3000

• Body, boiler, and washing tank made of stainless steel

• One-piece, rounded corner hygienic washing tank

• Automatic and user-friendly control panel

• Washing arms available in stainless steel and reinforced polypropylene (PP)

• Height optimization with adjustable feet

• Electrical components and wiring systems conform to international standards and safety

• Entire body is insulated and protected against water with IPX5 standard

• Rinse and wash temperatures are thermostat-controlled for effective washing

• Valve system preventing the water in the machine from returning to the installation

• Washing water temperature 55-60 degrees (provided feed water is at least 2 bar and 50 degrees)

• Rinse water temperature 80-85 degrees (provided feed water is at least 2 bar and 50 degrees)

• Washing capacity of 100 baskets per hour (Basket dimensions 50cmx50cm)

• 3 liters of water consumption per washing cycle

• Effective drying with a high-power fan

• Easy start; single-button water filling and heating for boiler and washing tanks

• Right Entry Table

• Built-in Rinse Pump

• Dimensions: 80x305x188

• Net Weight (Kg): 385 (+-5)

• Gross Weight (Kg): 420 (+-5)

• Capacity: 300 Plates/Hour

• Power (kW): 59.1

• Volt (single phase/three phase): 400V / 3 NPE

• Frequency: 50 Hz

• Hot Water Pressure (bar): 2 - 4 bar

• Hot Water Hardness: 0-10 French water hardness

• Cold Water Inlet Diameter (inch): 3/4''

• Cold Water Pressure (bar): 2 - 4 bar

• Cold Water Hardness: 0-10 French water hardness

• Drainage Inlet Diameter (inch): 1 1/4''

• Tank Volume (Lt.): 90

• Boiler Volume (Lt.): 18

• Washing Pump Flow Rate (Lt/min): 440/659

• Rinse Pump Flow Rate (Lt/min): 18

• Boiler Heater Power (kW): 27

• Tank Heater Power (kW): 13.5

• Washing Pump Power (kW): 1.5

• Rinse Pump Power (kW): 0.37

• Washing Water Temperature (°C): 55-60

• Rinse Water Temperature (°C): 80-85

• Drying Fan Power (kW): 0.45

• Max. Noise (dBA): 85

• Protection Class: IPX5
