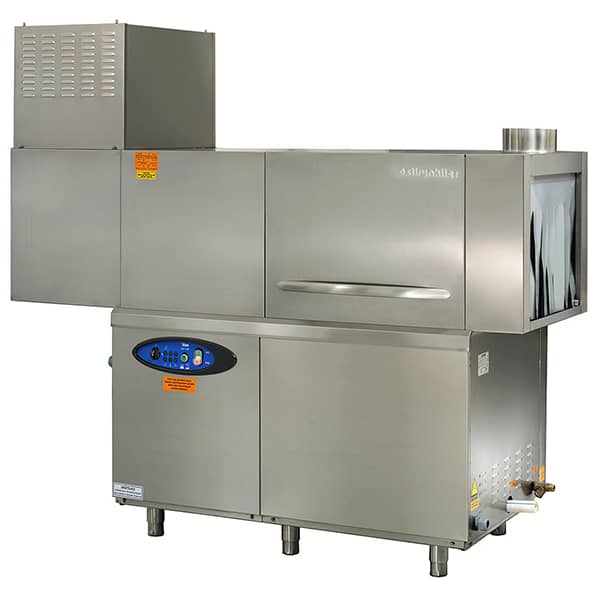

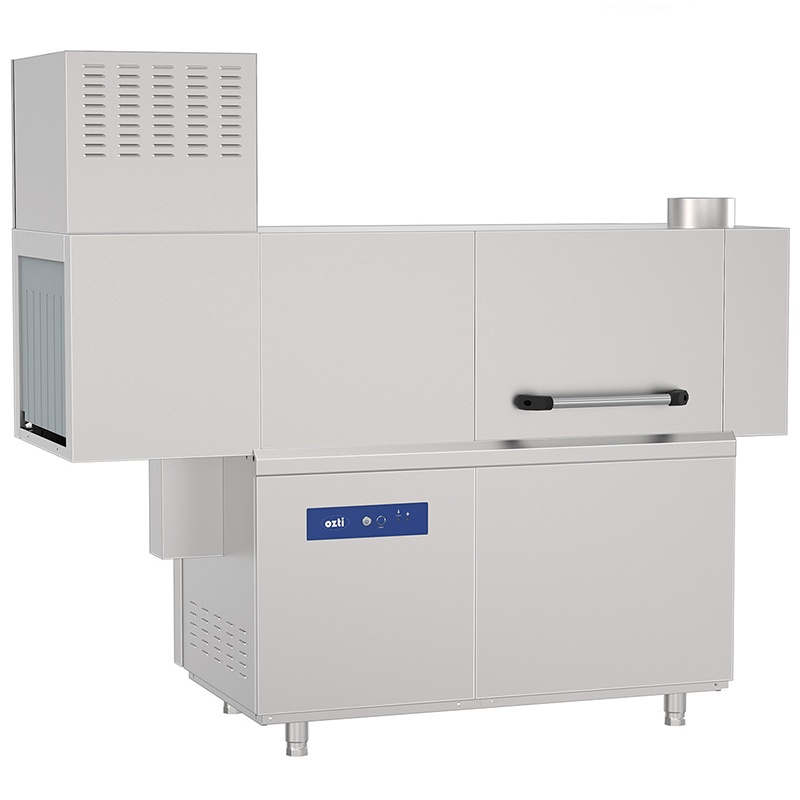

Öztiryakiler Conveyor Dishwashers, with Dryer, Right Entry Obk 1500

Öztiryakiler Conveyor Dishwashers, with Dryer, OBK 1500 Features

• Continuous and effective dishwashing with conveyor system

• Right entry table option

• Stainless steel body, washing tank, and boiler

• Seamless, rounded hygienic washing tank

• Effective drying with high-power fan

• User-friendly digital control panel

• Only 3 L water consumption per wash cycle

• Automatic water filling and heating feature

• Thermostat-controlled washing and rinsing temperatures

• Structure providing energy, detergent, and water savings

• Conforms to IPX5 water protection standard

• Safe use with backflow preventer valve system

Technical Specifications

• Model: OBK 1500

• Product Code: 076R.0010K.BD

• Type: Electric

• Voltage: 400V – 3 NPE

• Electric Power: 47 kW

• Frequency: 50 Hz

• Protection Class: IPX5

• Capacity: 1650 Plates/hour (100 baskets/hour)

• Basket Size: 500 x 500 mm

• Wash Water Temperature: 55–60 °C

• Rinse Water Temperature: 80–85 °C

• Tank Volume: 90 L

• Boiler Volume: 18 L

• Boiler Heater Power: 27 kW

• Tank Heater Power: 9 kW

• Washing Pump Power: 1.5 kW

• Washing Pump Flow Rate: 659 L/min

• Rinse Pump Power: 0.37 kW

• Rinse Pump Flow Rate: 18 L/min

• Drying Fan Power: 0.45 kW

• Maximum Noise: 80 dBA

Connection Information

• Cold Water Inlet Diameter: 3/4"

• Cold Water Pressure: 2–4 bar

• Cold Water Hardness: 0–10 French Hardness

• Hot Water Pressure: 2–4 bar

• Hot Water Hardness: 0–10 French Hardness

• Drain Inlet Diameter: Ø 50 mm

Dimensions and Weight

• Width x Length x Height: 850 × 2050 × 1880 mm

• Net Weight: 250 kg

• Gross Weight: 270 kg

• Volume: 3.08 m³

Origin and Brand

• Product Origin: Turkey

• Brand: Öztiryakiler
