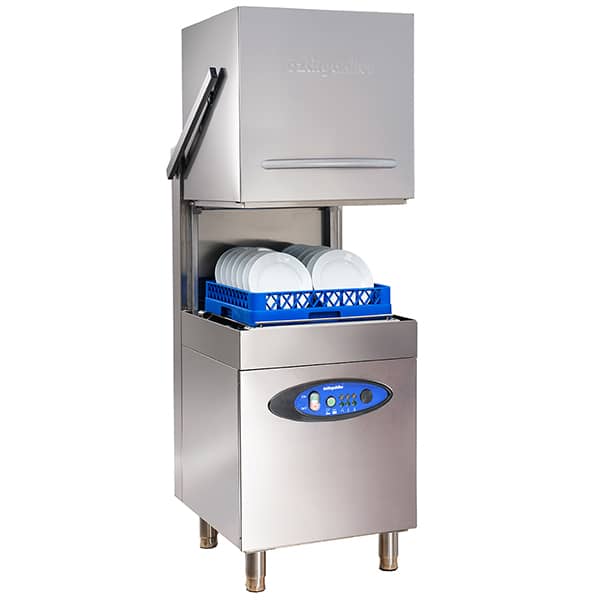

Notify me when its in stock| Model | OBO 1080 S |
| Description | *With detergent pump *With rinse aid pump *With rinse pump *Without drain pump * Single-piece washing tank, gastronomic hygienic. * Washing process stops when the lid is opened. * Automatic operation every time the lid is opened and closed. * 3 program options. ( 52/102/132 Sec.) * Self-heating water. * Fully insulated against water and moisture. * Height of legs is adjustable. * Washing and rinsing arms are easy to clean, made of polypropylene material. * Washing baskets 500 x 500 mm * Electrical connection (D-E): 200 *45 mm * Water connection (F-G): 60 *45 mm |
| Type | Electric |
| Product Code | 0710.01080.01 |
| Height (mm) | 785 |
| Width (mm) | 670 |
| Height (mm) | 1.440 |
| Capacity | 1000 Plates/Hour |
| Volt (Single Phase/Three Phase) | 400V - 3 NPE |
| Electric Power (kW) | 8.26 |
| Frequency (Hz) | 50 |
| Volume (m³) | 0.76 |
| Protection Class | IPX5 |
| Gross Weight (Kg) | 115 |
| Net Weight | 105 |
| Package Dimensions (mm) Height | 750 |
| Package Dimensions (mm) Width | 700 |
| Package Dimensions (mm) Height | 1.550 |
| Package Volume (m³) | 0.81 |
| Number of Products in Package | 1 |
| Standard Accessory | 1 Plate basket , 1 Flat glass basket, 1 Flat cutlery basket, 1 Water inlet hose |
| Number of Standard Accessories | 4 |
| Optional Accessory | Drain pump. |
| Number of Optional Accessories | 1 |
| Max. Noise (dBA) | 85 |
| Tank Volume (lt.) | 37 |
| Tank Heater Power (kW) | 3 |
| Cold Water Inlet Diameter | 3/4'' |
| Cold Water Pressure | 2 - 4 |
| Cold Water Hardness | 0-10 French Hardness |
| Drainage Inlet Diameter | Ø 50 |
| Hot Water Inlet Diameter | 3/4' ( 50º) |
| Hot Water Pressure | |
| Hot Water Hardness | 0-10 French Hardness |
| Boiler Volume (lt.) | 7 |
| Boiler Heater Power (kW) | 7.5 |
| Rinse Water Temperature (ºC) | 80 - 85 |
| Washing Pump Flow Rate (lt/min) | 356 |
| Washing Pump Power (kW) | 0.66 |
| Washing Water Temperature (ºC) | 55 - 60 |
| Rinse Pump Flow Rate (lt/min) | |
| Rinse Pump Power (kW) |
