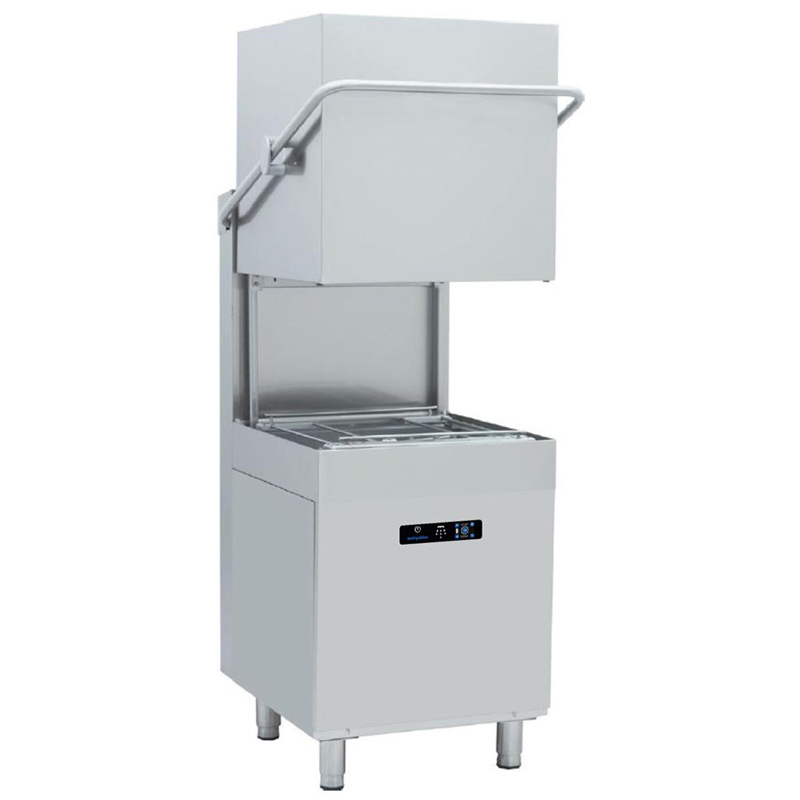

Öztiryakiler Door-Type Dishwasher, Obm 1080 T Plus, Touch Screen, 4 Pumps

Features of Öztiryakiler Door-Type Dishwasher, OBM 1080 T Plus, Touch Screen

• Enhanced performance of the previous model 1M.071D.11110.BB

• Low water consumption and dirty water block system

• Visual and audible tracking with a touch screen

• IPX5 protection class and CE international certification

• Programs with washing times under 60 seconds suitable for large enterprises

• 5 different dishwashing programs: 52 sec, 102 sec, 132 sec, 152 sec, 192 sec

• Automatically stops washing process when the door is opened

• Automatic start when the door is closed

• Integrated detergent, rinse aid, rinse, and drain pump

• Seamless hygienic washing tank

• Thermostat-controlled washing and rinse temperatures

• Adjustable foot height

• Easy to clean washing/rinse arms (polypropylene)

• Insulated against water and moisture

• Washing basket size: 50 × 50 cm

• Product height with the door open: 196 cm

Package Content

• 1 Plate Basket (50 × 50 cm)

• 1 Flat Glass Basket (50 × 50 cm)

• 1 Cutlery Basket (50 × 50 cm)

Technical Specifications

• Model: OBM 1080 D Plus

• Type: Electric

• Washing Capacity: 1108 plates/hour

• Washing Programs: 52 / 102 / 132 / 152 / 192 seconds

• Water Consumption per Cycle: 2.8 L/cycle

• Washing Water Temperature: 55–60 °C

• Rinse Water Temperature: 80–85 °C

• Tank Capacity: 37 L

• Boiler Capacity: 7 L

• Wash Pump Flow Rate: 356 L/min

• Boiler Heater Power: 7.5 kW

• Tank Heater Power: 3 kW

• Wash Pump Power: 0.66 kW

• Rinse Pump: Yes

• Drain Pump: Yes

• Maximum Noise: 85 dBA

Connection Information

• Voltage: 400V – 3 NPE

• Electric Power: 8.26 kW

• Frequency: 50 Hz

• Cold/Hot Water Inlet Diameter: 3/4"

• Cold/Hot Water Pressure: 2–4 bar

• Water Hardness: 0–10 French Hardness

• Drain Inlet Diameter: Ø 50

Dimensions and Weight

• Width x Depth x Height: 75 × 78.5 × 148 cm

• Height with Door Open: 196 cm

• Net Weight: 105 kg

• Gross Weight: 115 kg

• Volume: 0.76 m³

Origin and Brand

• Product Origin: Turkey

• Brand: Öztiryakiler
