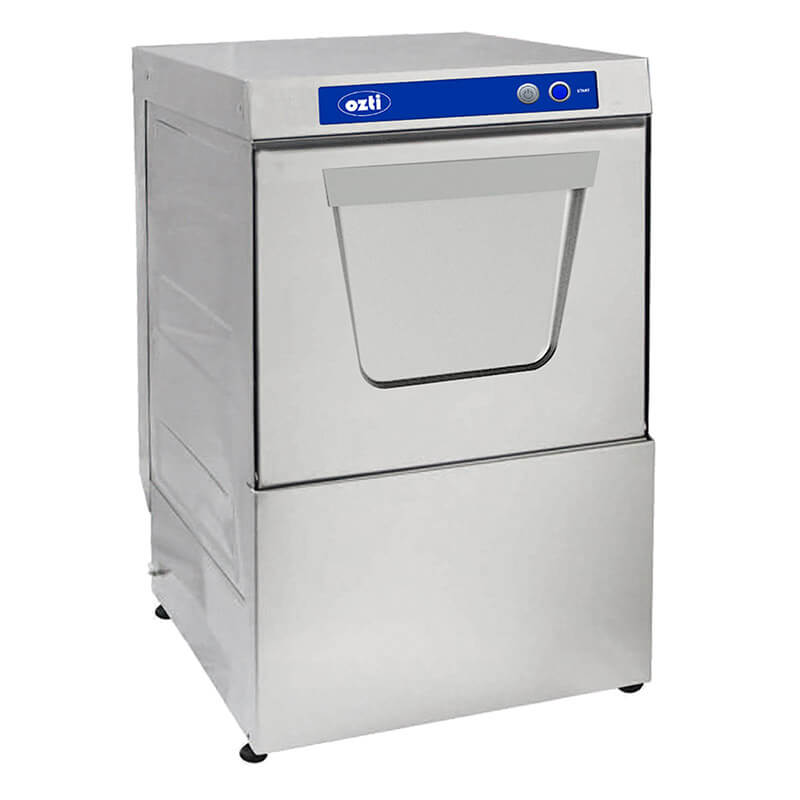

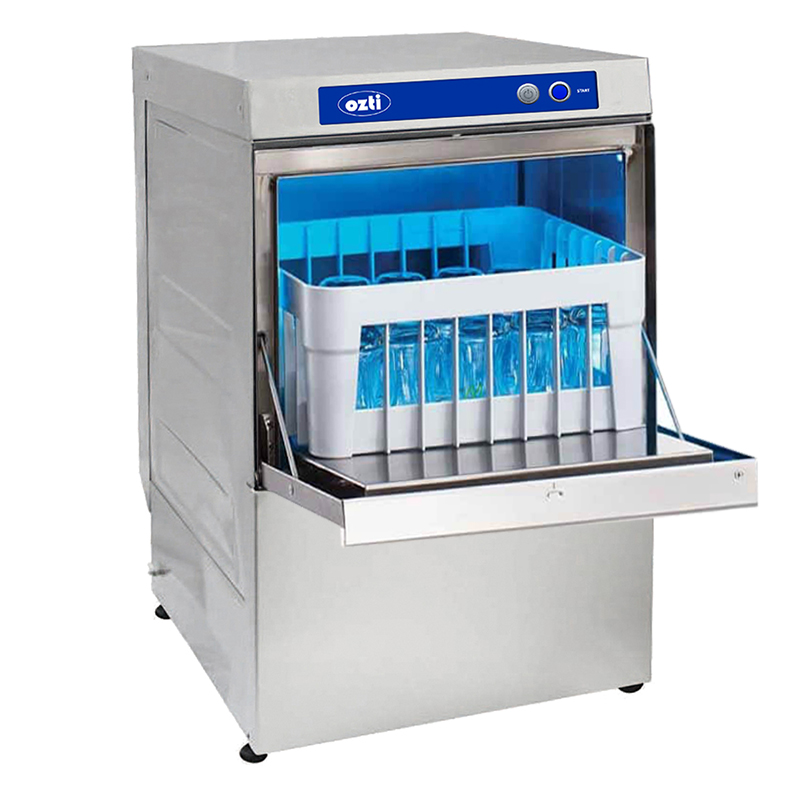

Öztiryakiler Glass Washing Machine, OBY 500 40M, 40x40 Cm Basket

Öztiryakiler Glasswasher, OBY 500 40M, 40x40 cm Basket Features

• Improved version of the previous model 1M.074M.10000.AD

• Body, boiler, and hygienic washing tank made of stainless steel

• Rounded corners for easy cleaning

• Washing capacity: 30 baskets / 500 glasses per hour

• Washing cycle: 120 seconds

• Low water consumption: 2.5 L per cycle

• User-friendly control panel

• Thermostat-controlled wash and rinse temperatures

• Energy, detergent, and water-saving

• Insulated body with IPX5 protection rating

• Valve system prevents backflow into the water system

• Can be used as both countertop and undercounter

• Usage areas: bars, cafes, tea shops, etc.

Package Contents

• 1 Glasswasher Basket (40 × 40 cm)

• 1 Round Cutlery Basket

• Power cable

• Drain hose

• Water inlet hose

Technical Specifications

• Model: OBY 500 40M

• Type: Electric

• Basket Size: 40 × 40 cm

• Washing Capacity: 500 glasses/hour – 30 baskets/hour

• Washing Time: 120 seconds

• Water Consumption per Cycle: 2.5 L

• Washing Water Temperature: 55–60 °C

• Rinse Water Temperature: 80–85 °C

• Tank Volume: 18.4 L

• Boiler Volume: 2.8 L

• Wash Pump Flow Rate: 170 L/min

• Boiler Heater Power: 3 kW

• Tank Heater Power: 2 kW

• Wash Pump Power: 0.27 kW

• Drying Fan: None

• Max Noise Level: 70 dBA

Connection Information

• Voltage: 230V – NPE

• Power: 3.3 kW

• Frequency: 50 Hz

• Hot/Cold Water Inlet Size: 3/4"

• Hot/Cold Water Pressure: 2–4 bar

• Water Hardness: 0–10 French Hardness

• Drain Inlet Size: 3/4"

Dimensions and Weight

• Width x Depth x Height: 47.5 × 54.5 × 76.5 cm

• Loading Height: 33 cm

• Net Weight: 40 kg (±5)

• Gross Weight: 45 kg (±5)

• Volume: 0.23 m³

Origin and Brand

• Country of Origin: Turkey

• Brand: Öztiryakiler
