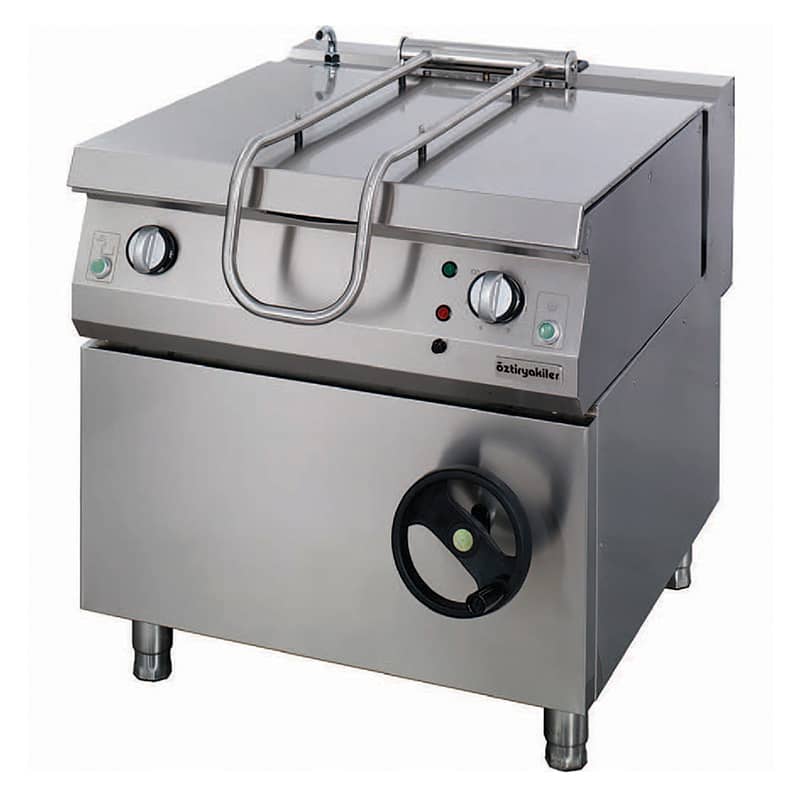

Öztiryakiler Tilting Pan, Electric Lifting Motor, OTME 205

Öztiryakiler Tilting Pan, Electric Lifting Motor, OTME 205

• Type: Electric

• Width: 1600 mm

• Length: 900 mm

• Height: 850 mm

• Net weight: 125 kg

• Volume: 0.31 m³

• Electric power: 21 kW

• Voltage: 400V / 3NPE

• Frequency: 50/60 Hz

• Protection class: IP 21

Technical Specifications:

• The base is made of 8 mm thick stainless steel

• Indicator lights are present on the panel

• Temperature can be adjusted between 50-300 degrees

• Power can be adjusted with an energy regulator

• Thanks to insulation, heat does not spread to the external environment, providing energy saving

• Manual lifting mechanism is standard

• An optional electric motorized lifting system can be added

• Pan corners are rounded and polished, making cleaning easy

• Homogeneous heat distribution is ensured with specially designed stainless steel heaters

• Hot and cold water connection is possible

• Water inlet valves are controlled from the front panel

• The pan can be filled with a chrome-plated faucet

• Double-walled lid provides high insulation

• The lid opens and closes easily with a spring mechanism

• Overheating is prevented by a safety thermostat
