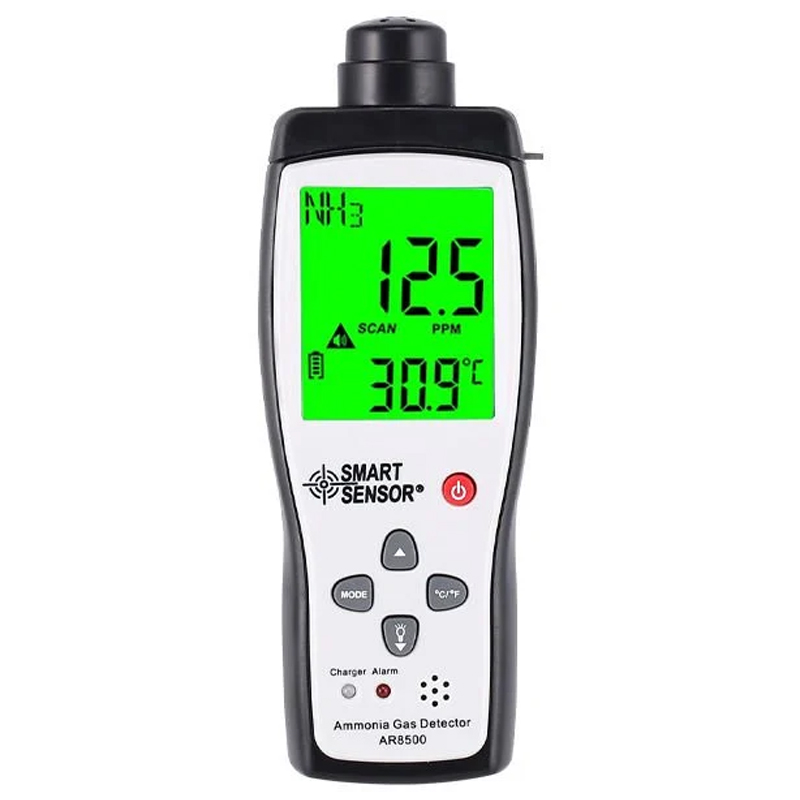

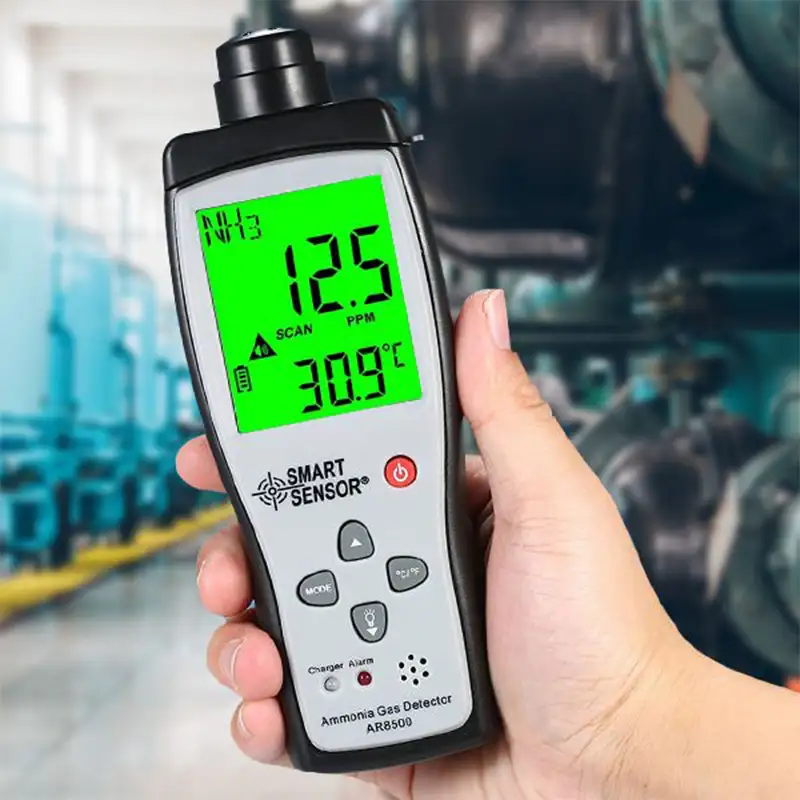

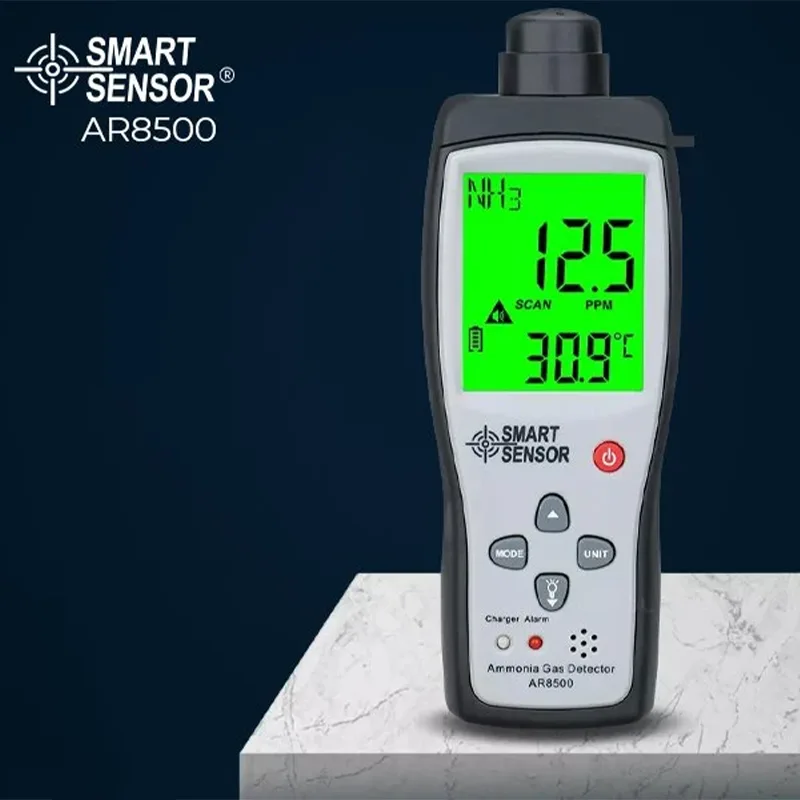

Smart Sensor AR8500 Ammonia Gas Leak Detector
Smart Sensor AR8500 ammonia gas leak detector is a handheld measuring device that can measure ammonia (NH3) gas from 0 to 100 ppm and features both audible and visual alarms.
- Smart Sensor AR8500 is a device capable of detecting ammonia (NH3) gas leaks up to 0 - 100 ppm.
- This digital gas leak detector can also measure temperature between -10°C and +50°C.
- Ammonia is a gas that is irritating and toxic to living beings upon contact or inhalation. Excessive inhalation can be fatal.
- Therefore, leak testing in ammonia or ammonia-using industries is important for occupational safety and human health.
- Smart Sensor AR8500 is ready to measure 10 seconds after powering on.
- Probe protection cap should always be kept on after measurement to prevent probe damage.
- “MODE” button allows adjustment of lower and upper alarm thresholds (AL1-AL2).
- Both audible and visual alarms alert based on the set ammonia ppm values.
- The device uses a rechargeable 3.7V Li-ion battery.
- Backlit LCD screen enables easy measurement in dark environments.
- Automatic shut-off feature powers off the device after 10 minutes of inactivity.
- Box contents: 1 AR8500 ammonia detector, 1 rechargeable 3.7V battery, 1 micro USB charging cable (adapter not included), 1 carrying strap, and 1 blue carrying case.
Technical Specifications
- Ammonia Measurement Range: 0 ~ 100 ppm
- Accuracy: ±2%
- Resolution: 0.1 ppm
- Temperature Measurement Range: -10°C to +50°C
- Response Time: T90 < 120 seconds
- Visual Alarm: Yes
- Dimensions: 18 x 33 x 70 mm
- Weight: 170 grams
- Power Supply: 3.7V Li-ion battery
- Audible Alarm: Yes
- Display: Backlit LCD screen
- Operating Time: Less than 60 hours
