Testo 175 T3 Temperature Data Logger

Testo 175 T3 Temperature Data Logger

• Testo 175 T3 is a dual-input temperature data logger capable of measuring and recording temperatures from -50 degrees to +1000 degrees.

• With a wide range of uses, it is frequently preferred in refrigerators, cold storage warehouses, production facilities, the pharmaceutical industry, restaurants, and supermarkets.

• The most significant difference from the Testo 175 T1 and T2 models of this model is that it allows for the connection of two external probes.

• Thanks to the two separate slots located at the bottom of the device, K type and T type probes can be connected. Temperature values of both connected probes can be simultaneously displayed on the LCD screen.

• With externally connected probes, measurements can be made in different environments such as air, liquid, or surface temperatures. The type of measurement varies depending on the probe used.

• Over 1 million data memory and long-lasting battery enable reliable data recording over long time intervals.

• Although the battery life varies depending on usage, it is approximately 3 years under standard conditions.

• Even if the battery is completely depleted or replaced, the recorded data will not be erased; the device provides high data security.

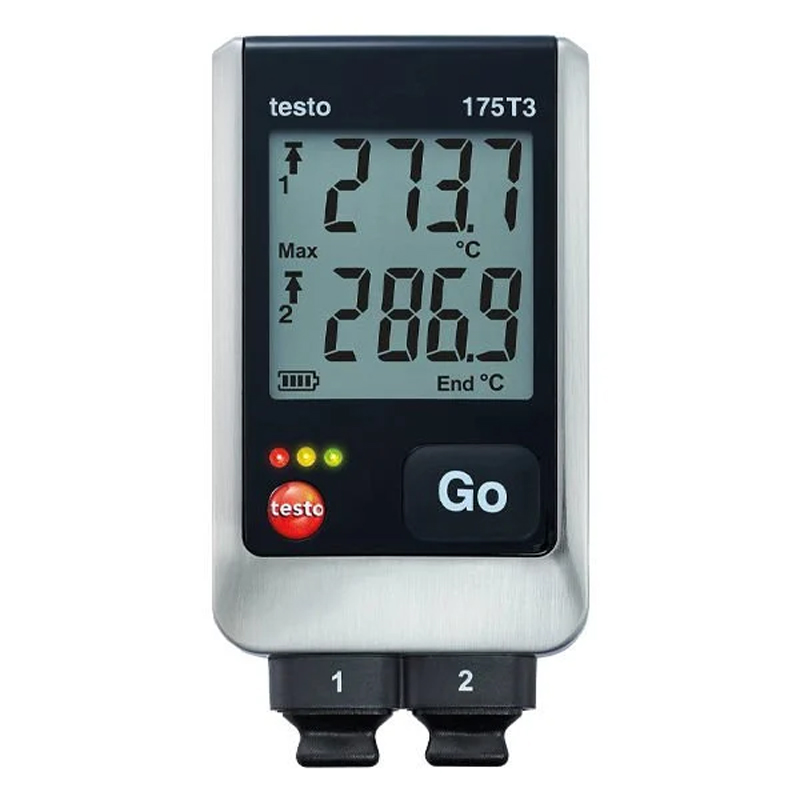

• On the device's screen, instantaneous temperature data, specified limit values, minimum/maximum measurements, limit exceedance warnings, and remaining battery status can be displayed. Thus, measurements can be quickly checked without a computer connection.

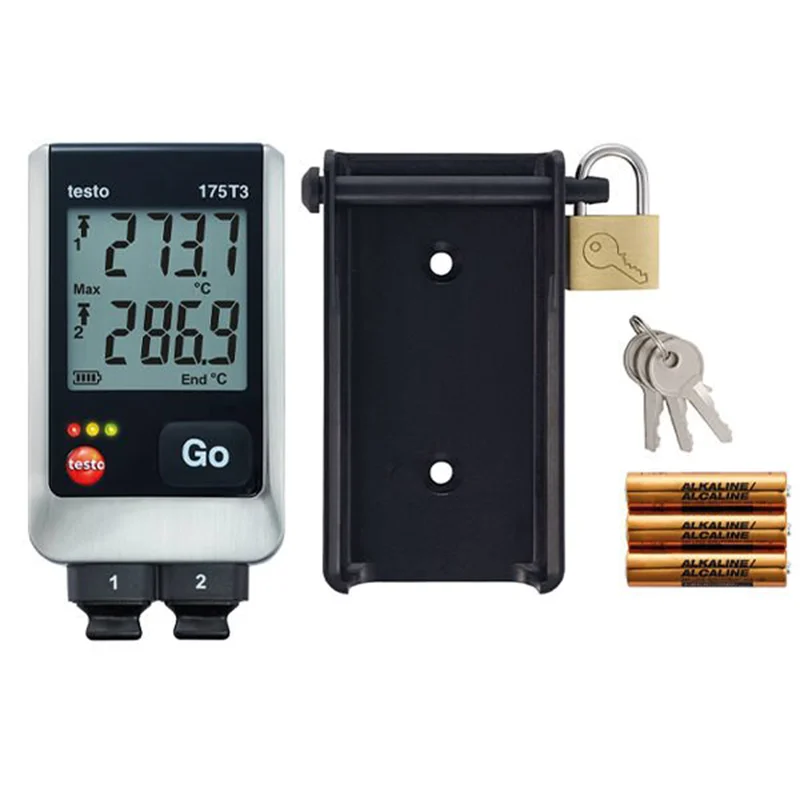

• Box contents: Testo 175 T3 device, wall mounting bracket, lock, battery, and USB cable.

• External probe and SD card are not included in the box contents. An optional SD card can be inserted to increase memory.

• Data transfer can be done without removing the device thanks to the SD card slot; this provides time and labor savings in field applications.

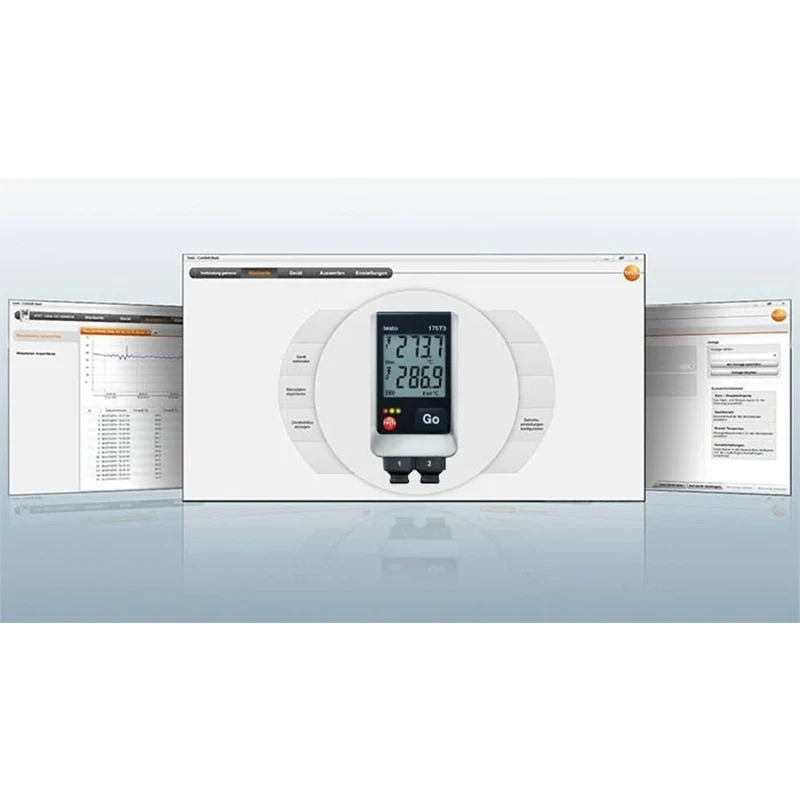

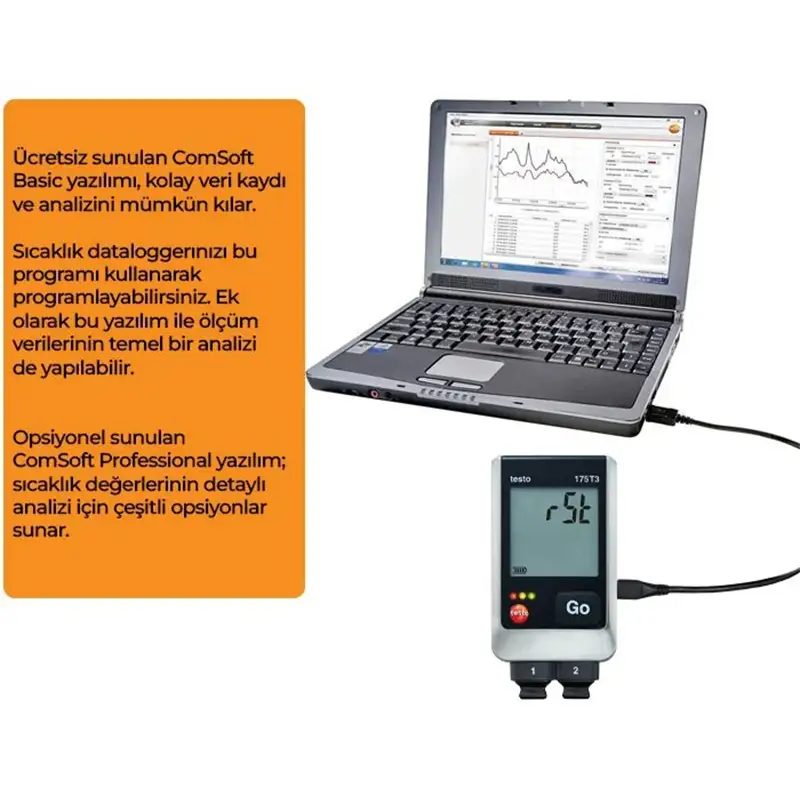

• Testo 175 T3 can be easily programmed and basic data analyses can be done with the free ComSoft Basic software. For more advanced analyses, ComSoft Professional software can be optionally obtained.

• The device can be mounted anywhere using the wall support. Additionally, its lockable structure provides protection against theft or tampering.

• Temperature Measurement Range: -50 degrees to +1000 degrees

• Temperature Accuracy:

  • -50 degrees to +70 degrees: ±0.5 degrees ±1 digit

  • +70.1 degrees to +1000 degrees: ±0.7% of the measured value ±1 digit

  • Temperature Resolution: 0.1 degrees

• T Type Probe Features

• Temperature Measurement Range: -50 degrees to +400 degrees

• Temperature Accuracy:

  • -50 degrees to +70 degrees: ±0.5 degrees ±1 digit

  • +70.1 degrees to +400 degrees: ±0.7% of the measured value ±1 digit

  • Temperature Resolution: 0.1 degrees

• General Features

• Protection Class: IP65

• Probe Connection Type: Compatible with K type and T type inputs

• Memory Capacity: 1,000,000 data recording capacity

• Adjustable Recording Interval: Programmable between 10 seconds and 24 hours

• Alarm Feature: Visual alarm only

• Screen: LCD screen

• Operating Temperature: -20 degrees to +55 degrees

• Storage Temperature: -20 degrees to +55 degrees

• Weight: 130 grams

• Dimensions: 96 x 54 x 29 mm

• Delivery Scope:

  • Testo 175 T3 device

  • Wall mounting bracket

  • Lock

  • Battery

  • USB cable
