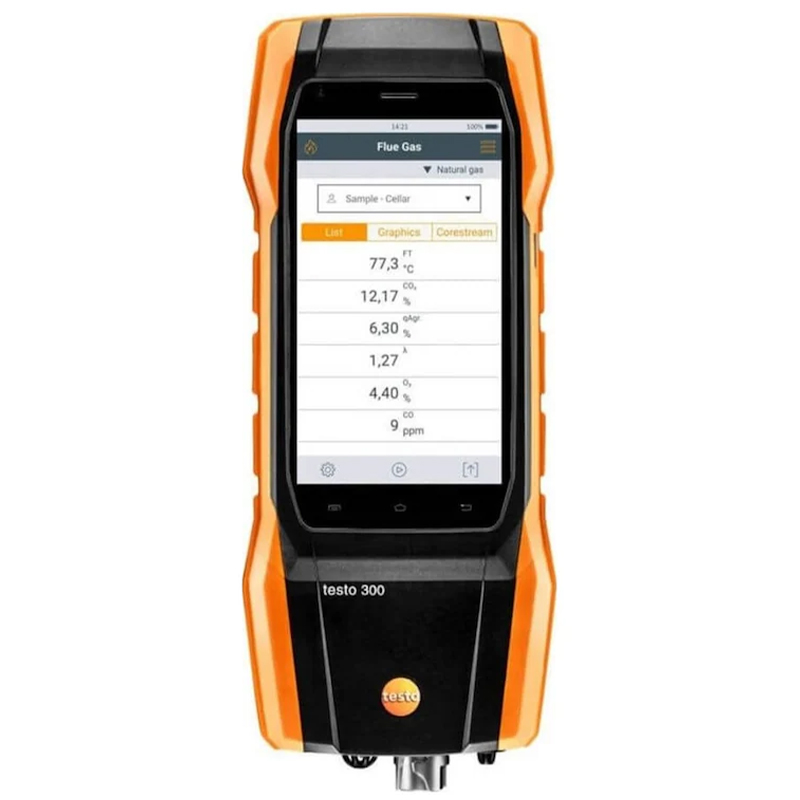

Testo 300 LL Flue Gas Analyzer, Set with Printer, 15000 Ppm

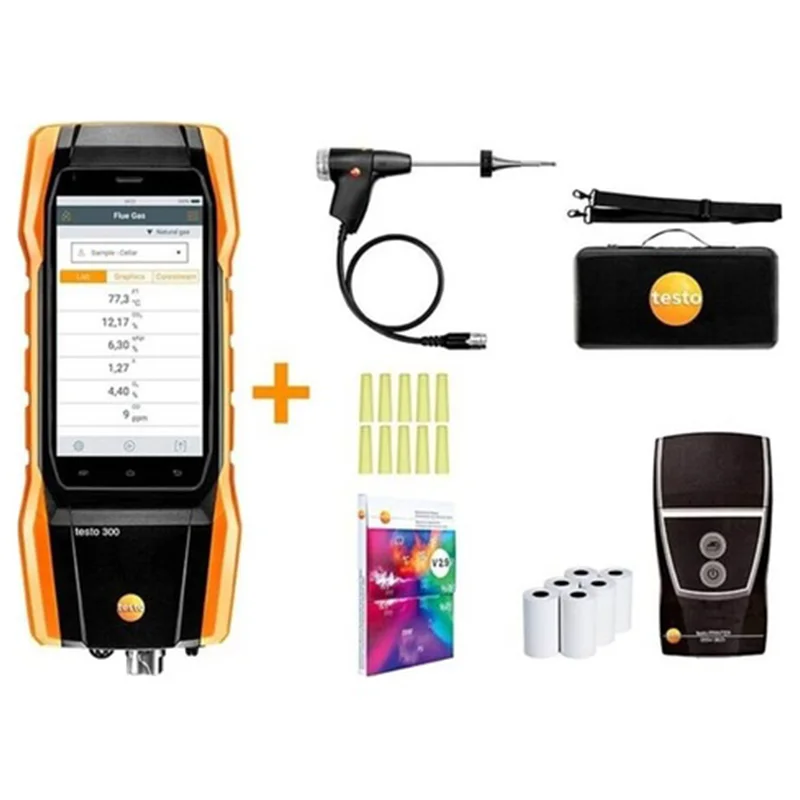

Testo 300 LL Flue Gas Analyzer (Set with Printer) 15000 PPM

• The measurement range of this flue gas analyzer; including O2, CO sensor, has 3 sensor slots, capable of measuring up to 15,000 ppm.

• Operations that can be performed with the Testo 300LL gas analyzer; Direct measurement of Oxygen (O2) and Carbon monoxide (CO), Gas analysis, Flue draft measurement, Carbon dioxide calculation (CO2), Differential/gas flow pressure measurement, Excess air calculation, Combustion efficiency, and Measurement of temperature inside the flue.

• If we need to use a short sentence to describe the Testo 300 LL flue gas; we can say "Smart Flue Gas Analyzer"!

• smart flue gas analyzer

• The Testo 300LL flue gas analyzer device; features a smart touch screen, with a scratch-resistant 5" HD display.

• The Testo 300LL flue gas analysis test device is an ideal product for the analysis measurements to be performed in heating systems.

• The device's operating infrastructure uses the Android structure.

TECHNICAL SPECIFICATIONS

• Measurement Range: Up to 15,000 ppm

• O₂ Measurement Range: 0 - 21% (with direct measurement)

• CO₂ Sensitivity: ±0.2 vol. %

• Differential Pressure Measurement Range: -100 … +200 hPa

• Number of Sensor Slots: 3 units

• Operating Temperature: -5 … +45 degrees

• Storage Temperature: -20 … +50 degrees

• Dimensions: 244 mm (including probe connection) x 98 mm x 59 mm

• Weight: Approximately 800 grams

• Power Source: Rechargeable battery, USB adapter

• Battery Life: 10 hours

• Screen: 5.0'' touch HD screen, 1280x720 pixels, IPS (160 k colors)

• Protection Class: IP65

• Certifications:

  • Tested by TÜV

  • Complies with the German Federal Emission Control Ordinance (BlmSchV) EN 50379, Part 1-3
