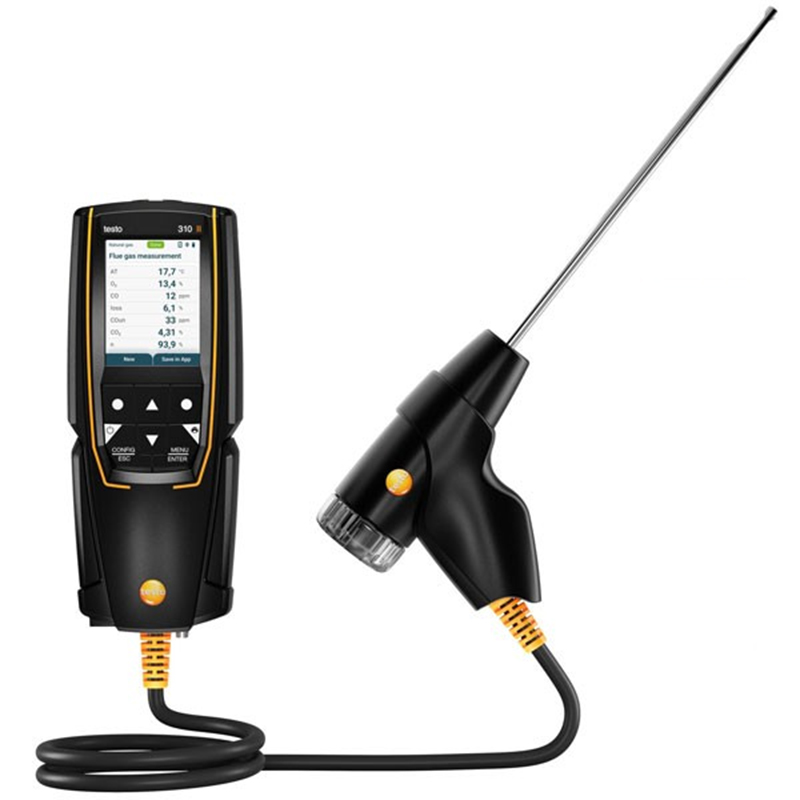

Testo 310 II Flue Gas Analyzer

Testo 310 II Flue Gas Analyzer

The Testo 310 II flue gas analyzer is a professional measuring device capable of performing measurements such as the appropriate adjustment of O2, CO, and CO2 values in small combustion plants (oil and gas), low-temperature condensing boilers, and gas water heaters, measuring and adjusting gas flow pressure in gas water heaters, with newly added features like smart (Smart App) functionality.

• The display of the Testo 310 II flue gas analyzer has been updated to a colorful and wide-readable screen.

• It is our most economically priced flue gas analyzer.

• The Testo 310 II device has been made smart by pairing with the Smart App, allowing features such as report generation to be used online.

• With the Smart App, a graphical measurement curve can be displayed, measurement data can be recorded, customer and measurement locations can be managed, documentation can be done, and reports can be sent via email.

• The device's charging input is Type C.

• Measurement areas include small combustion plants (oil, gas, wood, coal), low-temperature, and condensing boilers, and gas water heaters.

• Measurable values include O2, CO, CO2 adjustment, draft measurement, gas flow pressure measurement and adjustment, ambient CO measurement.

• It is an ideal product for boiler services.

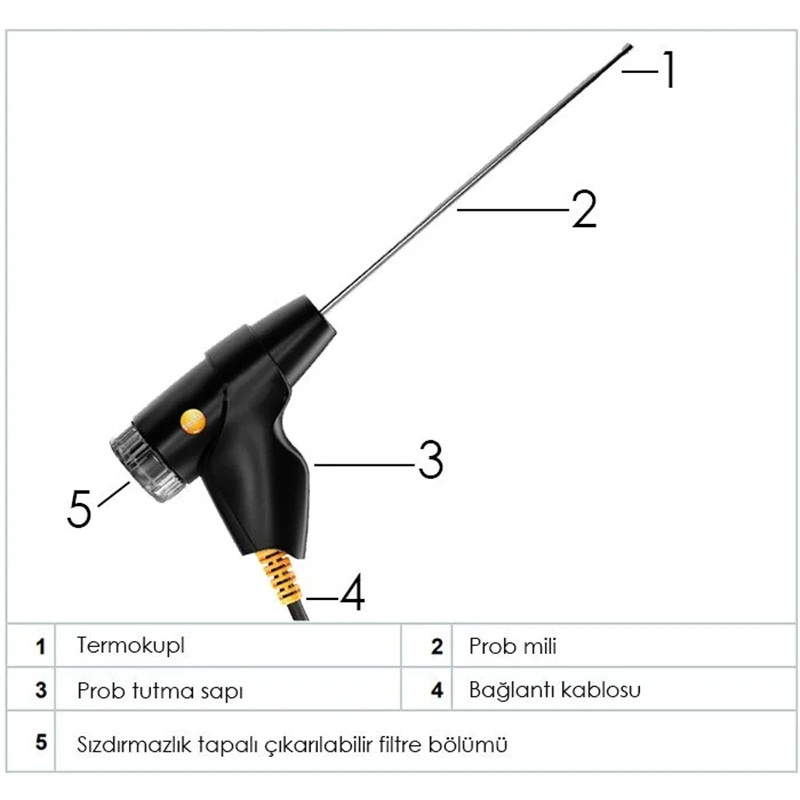

• Probe length is 180 mm.

• Based on measured values, the CO2 value, combustion efficiency, and flue gas loss can be calculated.

• Allows for easy one-handed use.

• Defined fuel options are available.

• The screen and keypad are protected against dusty environments.

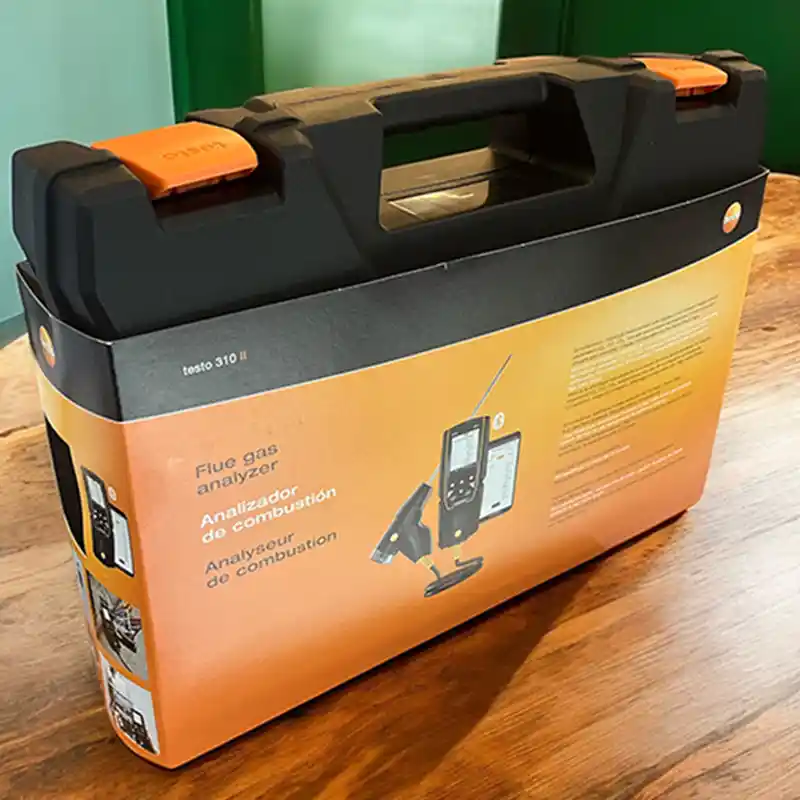

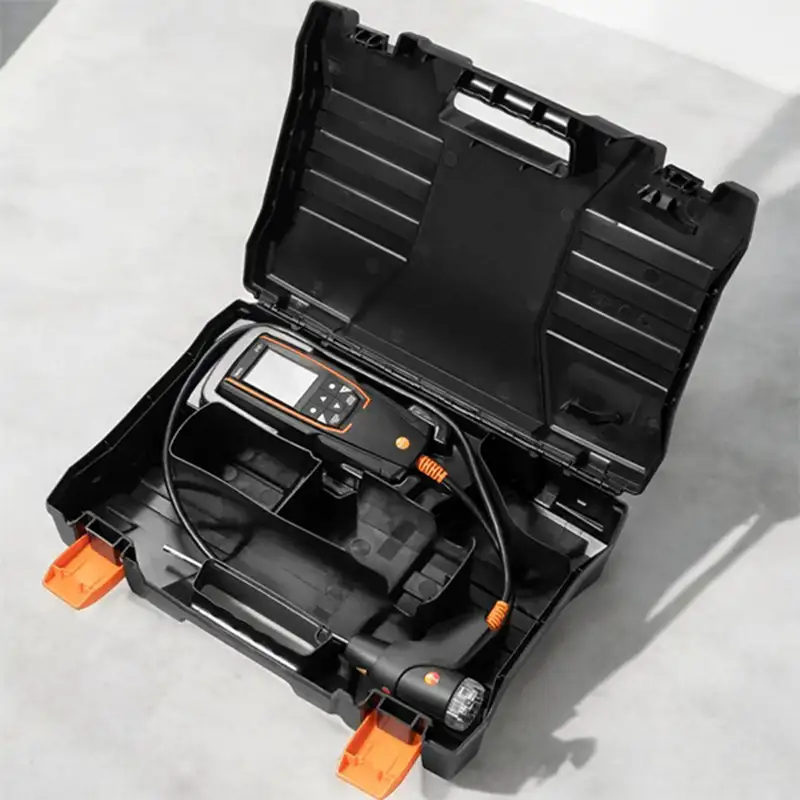

• The delivery scope includes the device, factory test certificate, 180 mm conical probe, silicone hose for pressure measurement, a set of 5 particle filters, and a carrying case.

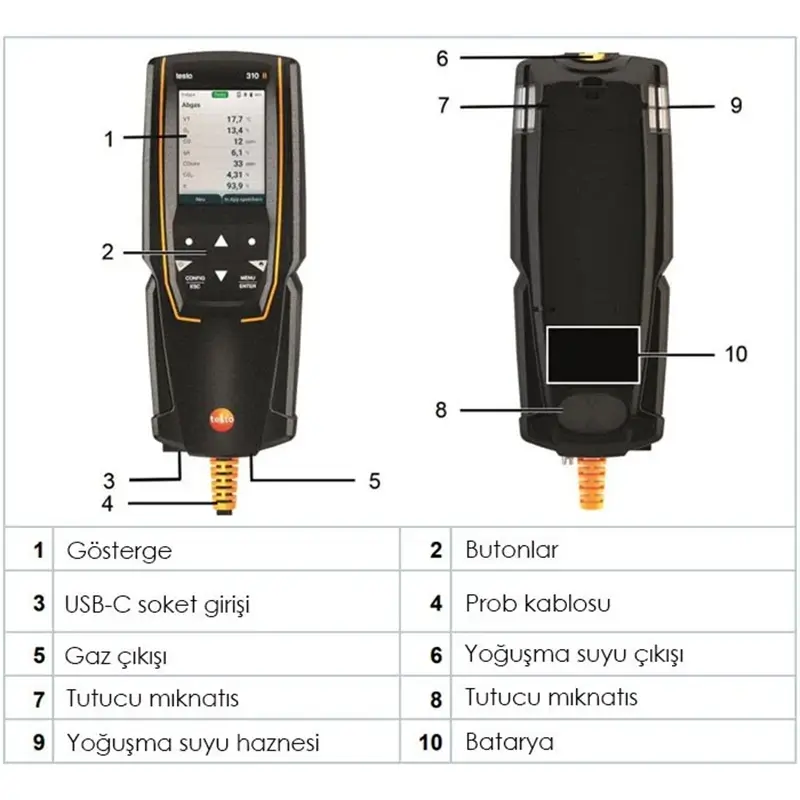

The Testo 310 II flue gas analyzer can be fixed to metal surfaces thanks to the magnets on the back of the device. It is suitable for dirty and challenging environments with its robust design.

• Fast sensor zeroing in 30 seconds

• Easily replaceable probe filter

• Quickly drainable condensate trap

These features make the device the most suitable for facility mechanics.

TECHNICAL SPECIFICATIONS

• Weight: Approximately 660 g
• Dimensions: 201 x 83 x 44 mm
• Operating Temperature: -5 degrees ... +45 degrees
• Display: Graphic 7-line color display
• Power Source: 1500 mAh battery, 5V/1A adapter
• Storage Temperature: -20 degrees ... +50 degrees
