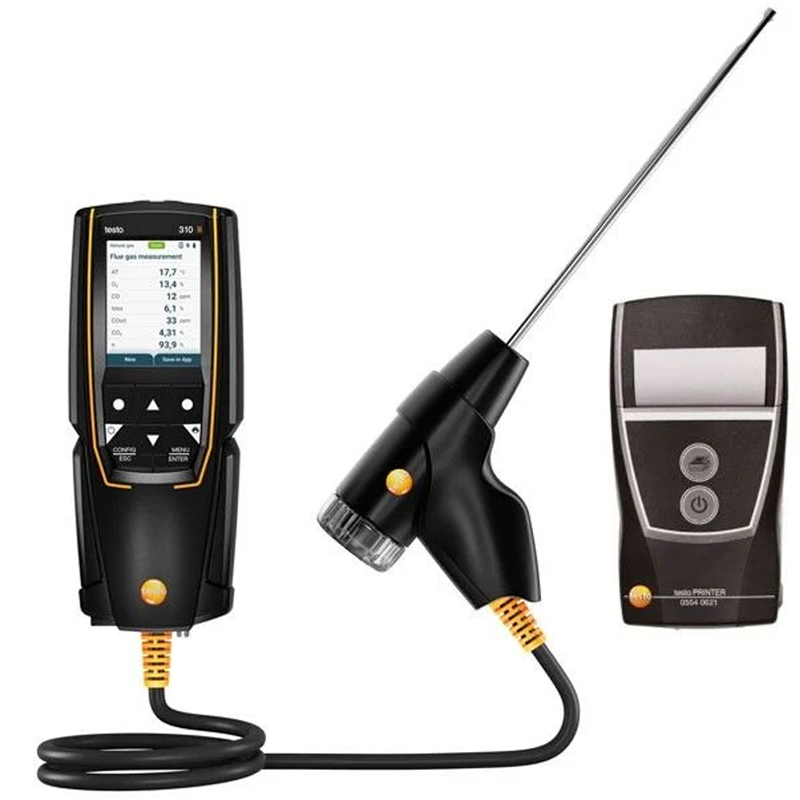

Testo 310 II Printer-equipped Flue Gas Analyzer

Testo 310 II Printer-equipped Flue Gas Analyzer

• The screen of the Testo 310 II flue gas analyzer has been updated from the previous model to feature color. It has a large, readable display.

• This flue gas analyzer device is our most economically priced device and includes a printer.

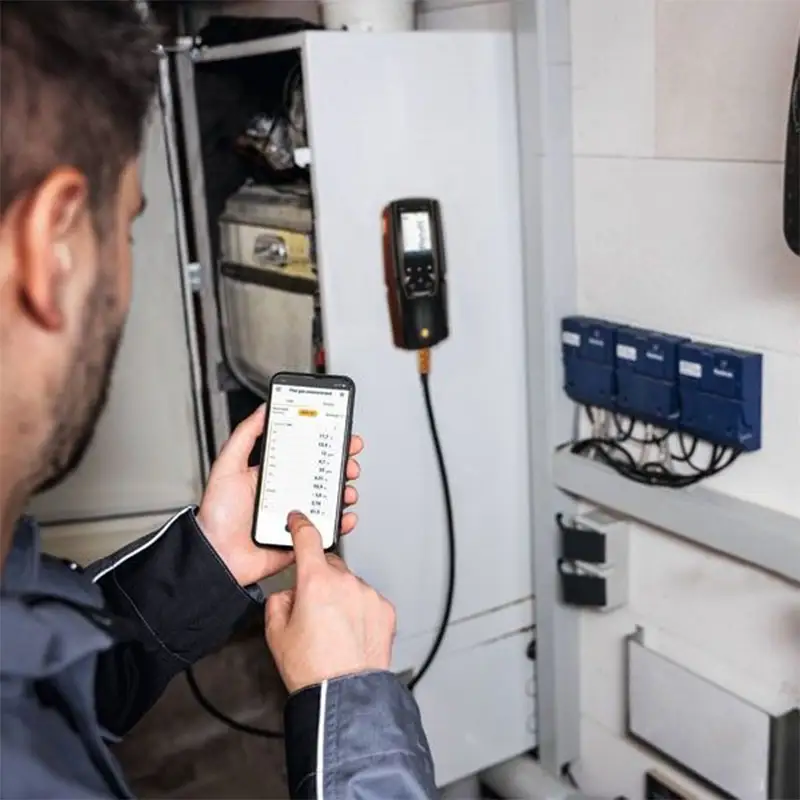

• This flue gas analyzer can now be paired with the Testo Smart App, making it smart and capable of providing features like reports online.

• By pairing the Testo 310 II device with the smart App application; you can perform tasks like displaying the measurement value curve on the screen, recording measurement data, managing customers and measurement locations, field documentation, and sending reports via email.

• The connection with its printer is now updated to pair via Bluetooth.

• The charging input of the Testo 310 II flue analyzer is now Type C.

• The areas where the Testo 310 II (0563 3105) flue gas analyzer is used in measurement include; small combustion plants (oil, gas, wood, coal), low-temperature and condensing boilers, gas water heaters.

• Additional capabilities with the Testo 310 II include; adjusting the O2, CO, and CO2 values in combustion plants to achieve optimum efficiency, draft measurement, gas flow pressure measurement and adjustment in gas water heaters, and ambient CO measurement.

• It is an ideal product for boiler services.

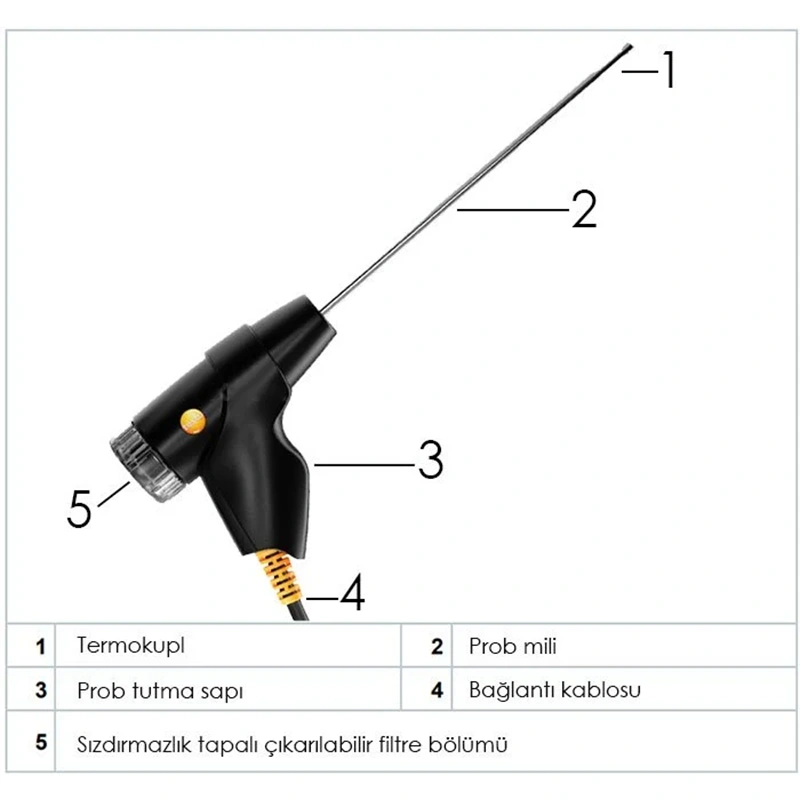

• The length of the probe to be measured is 180 mm, i.e., 18 cm.

• Based on these measured values, CO2 value, combustion efficiency, and flue gas loss can be calculated with the device.

• The device is quite easy to use, allowing for one-handed operation.

• There are defined fuel options.

• The screen and keypad are protected for dusty environments.

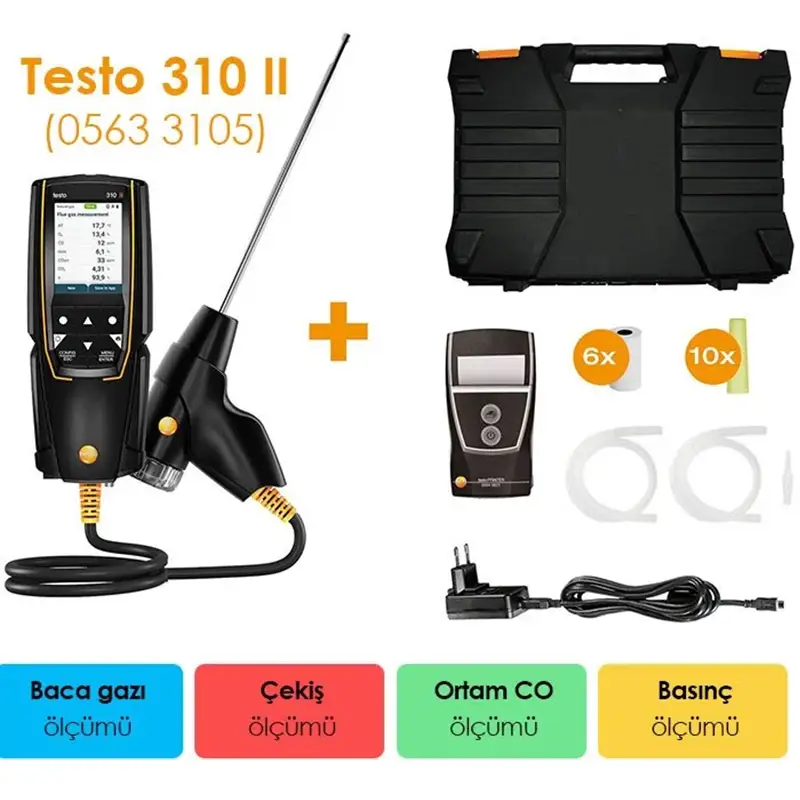

• The delivery scope includes; Testo 310 II flue gas analyzer (for O2, CO, hPa, and °C measurement), printer, factory test certificate, conical 180 mm probe, silicone hose for pressure measurement, thermal paper, 5-piece particulate filters, and a case.

General Technical Information:

1. Storage temperature: -20 +50 degrees

2. Operating temperature: -5 +45 degrees

3. Dimensions: 201 x 83 x 44 mm

4. Weight: Approx. 660 g

5. Power source: Battery: 1500 mAh, mains unit 5V/1A

6. Display function: Graphic 7-line display
