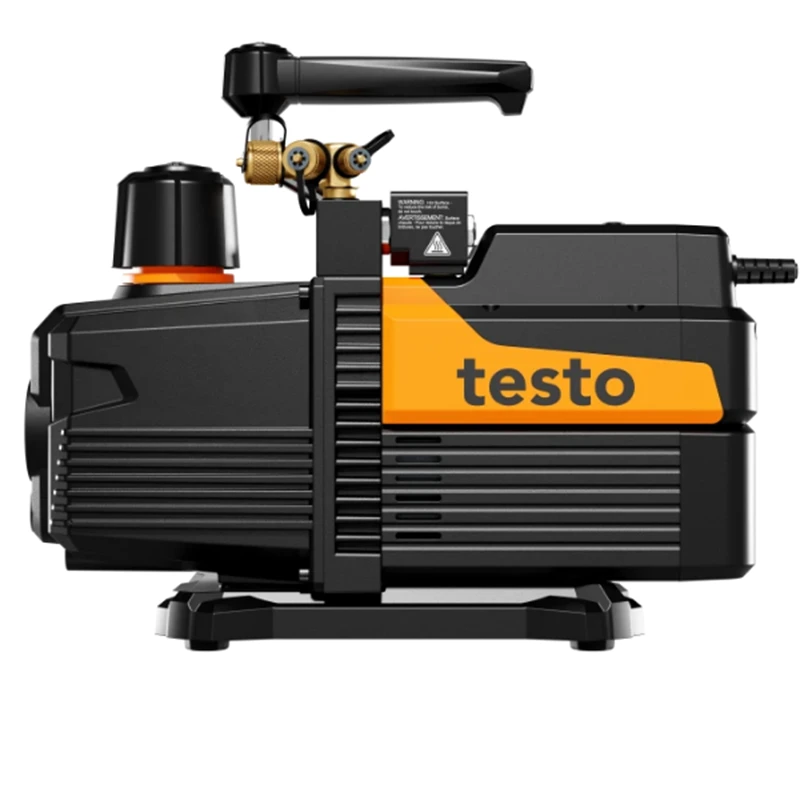

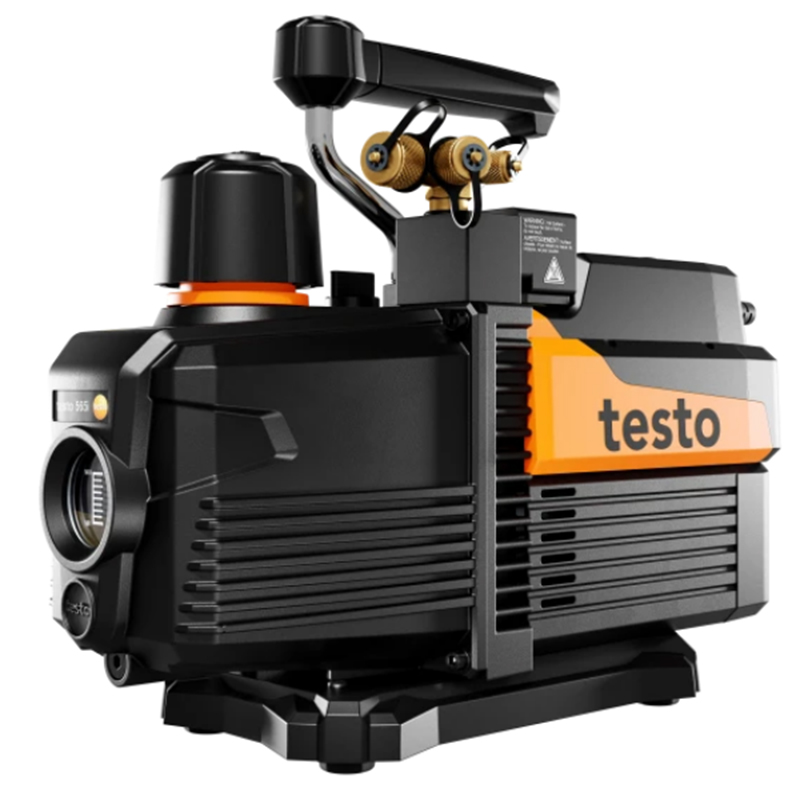

Testo 565i Smart Vacuum Pump, 7 CFM, 198 l/min

Testo 565i Smart Vacuum Pump | 7 CFM (198 l/min)

Testo 565i, with a capacity of 7 CFM, is a smart vacuum pump that performs automatic evacuation operations safely and efficiently in cooling systems and heat pumps.
It stands out with Bluetooth connection, automatic control system, and user-friendly design.

Outstanding Features

• Optimized Performance: Ideal for medium-scale applications with a flow rate of 7 CFM (198 liters/minute).

• Automatic Evacuation and Test: The device stops automatically when the target vacuum value is reached, and a vacuum holding test is initiated. This verifies the system's seal.

• Data Logging and Reporting: Live measurements can be monitored via the Testo Smart App, all processes are documented, and reports can be shared.

• Fast Bluetooth Connection: Establishes automatic connection with Testo measuring devices and mobile app when turned on.

• Mobile App Support: Device configuration, measurement tracking, graphical analysis, and reporting can be easily done with the app.

• Refrigerant Compatibility: Compatible with A2L, A2, and A3 class refrigerants; ensures maximum safety.

• User-Friendly Structure: Offers practical use with ergonomic carrying handle, easy oil change, and sight glass.

• Protection Against Power Outages: Vacuum loss is prevented with integrated check valve technology, ensuring uninterrupted operation.

• Ideal for Professional Use: Offers reliability, accuracy, and ease of use in cooling, heating, and industrial systems.

Delivery Contents

• Testo 565i smart vacuum pump

• Oil bottle

• Manufacturer test protocol

• User manual

• Flow Rate : 7 CFM (198 liters/minute)

• Pump Type : Rotary vane, two-stage

• Connection Types : 1/4 SAE, 3/8 SAE, 1/2 SAE

• Connection Interface : Bluetooth 5.0 (up to 30 meters)

• Oil Compatibility : ISO VG 46

• Minimum Pressure Value : 15 microns

• Refrigerant Compatibility : A2L / A2 / A3 certified

• Device Weight : 12 kg
